Phoenix, PHOENOCORD St 2250 Pipe, Used ST2250 Steel Cord Pipe Conveyor Belt, 1,125 mm (44 in) Wide, About 25,000 ft (7,620 m), Lot

Overview

1. Used steel cord pipe conveyor belt

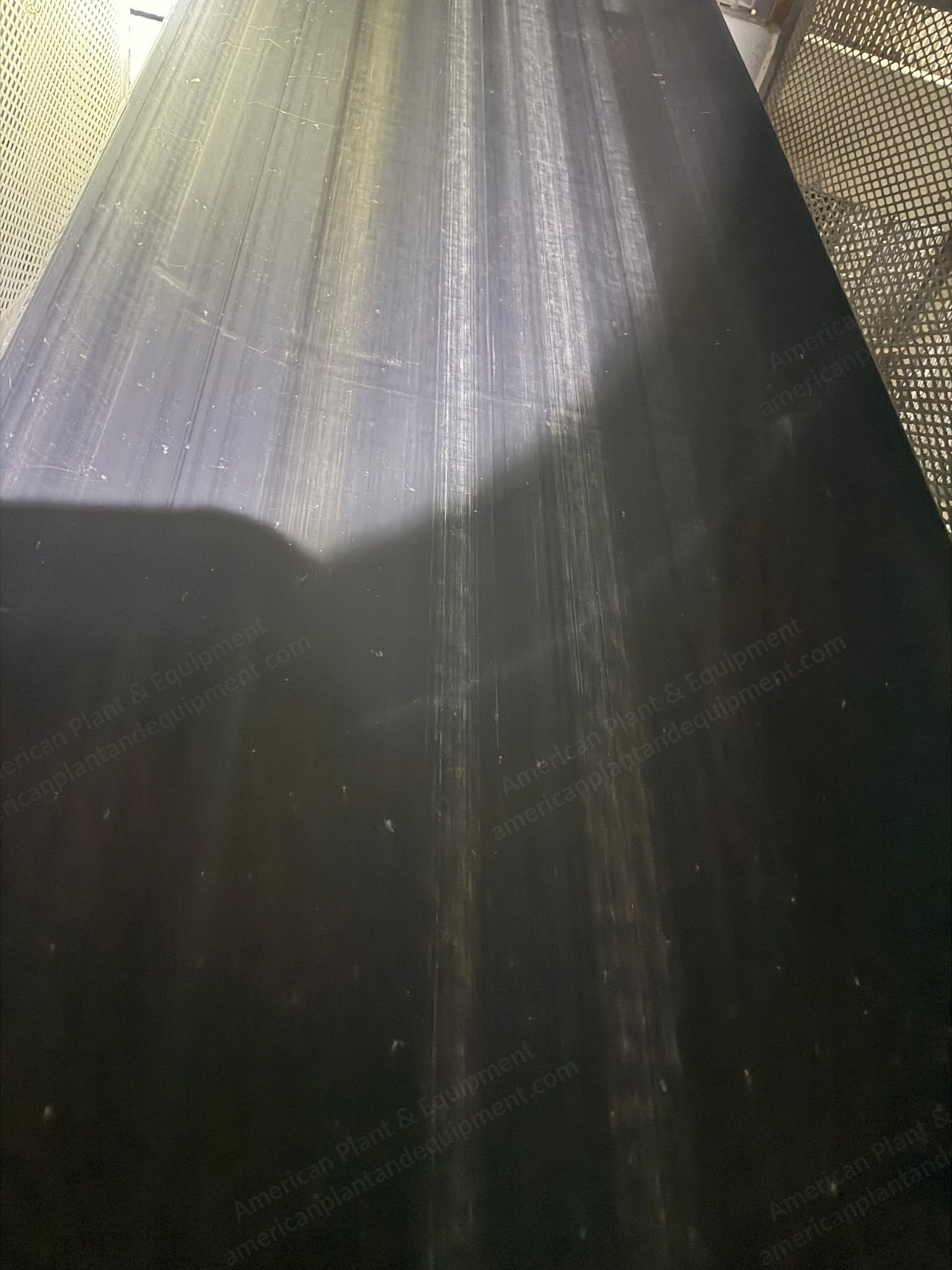

2. Used for 3 years out of the last 10, idle since; in decent condition

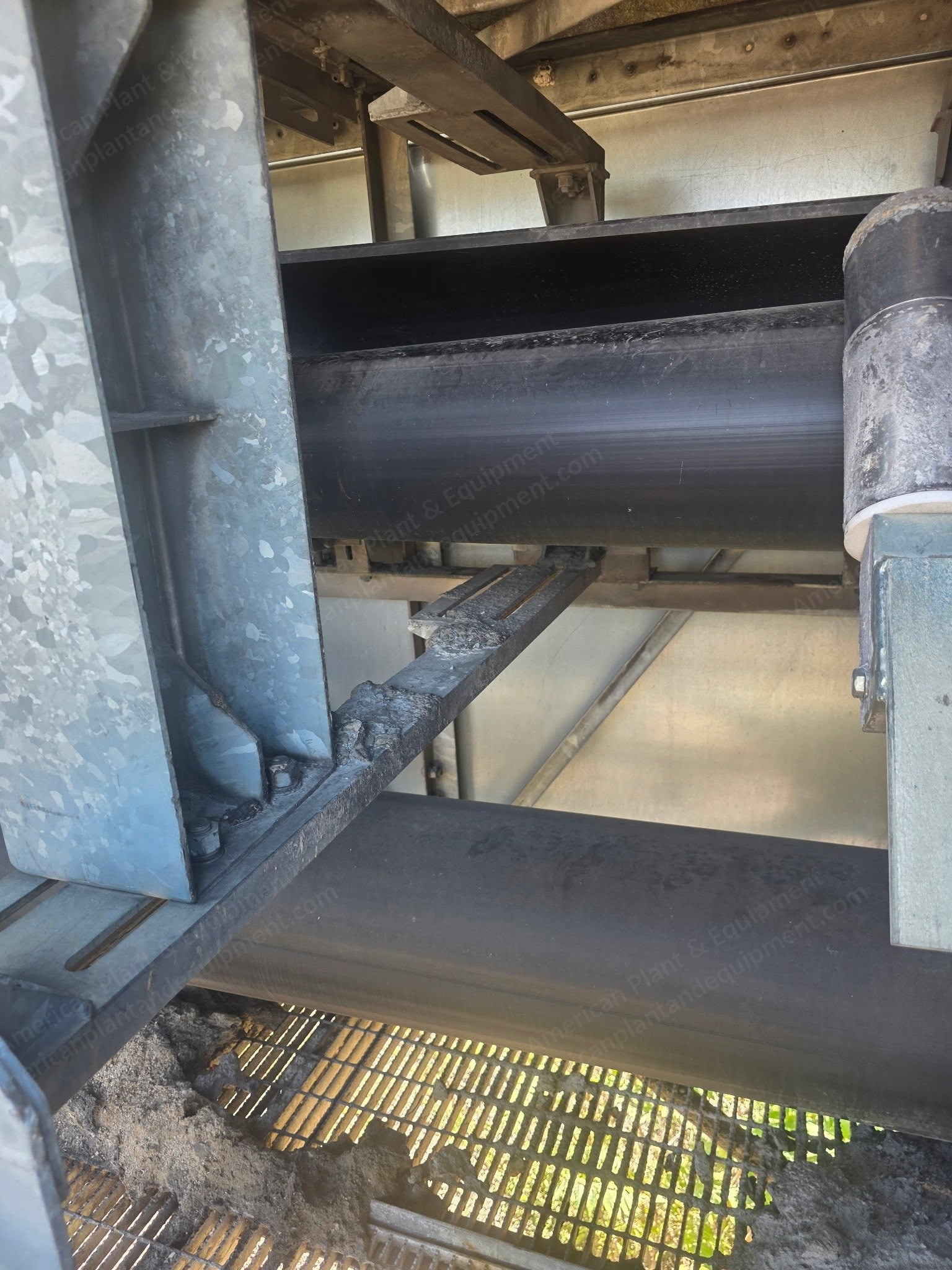

3. Still installed on the system; rerolled off into 1,000 ft (305 m) rolls

4. Used for conveying gypsum

5. Estimated 25,000 ft (7,620 m); the final footage may be more or less

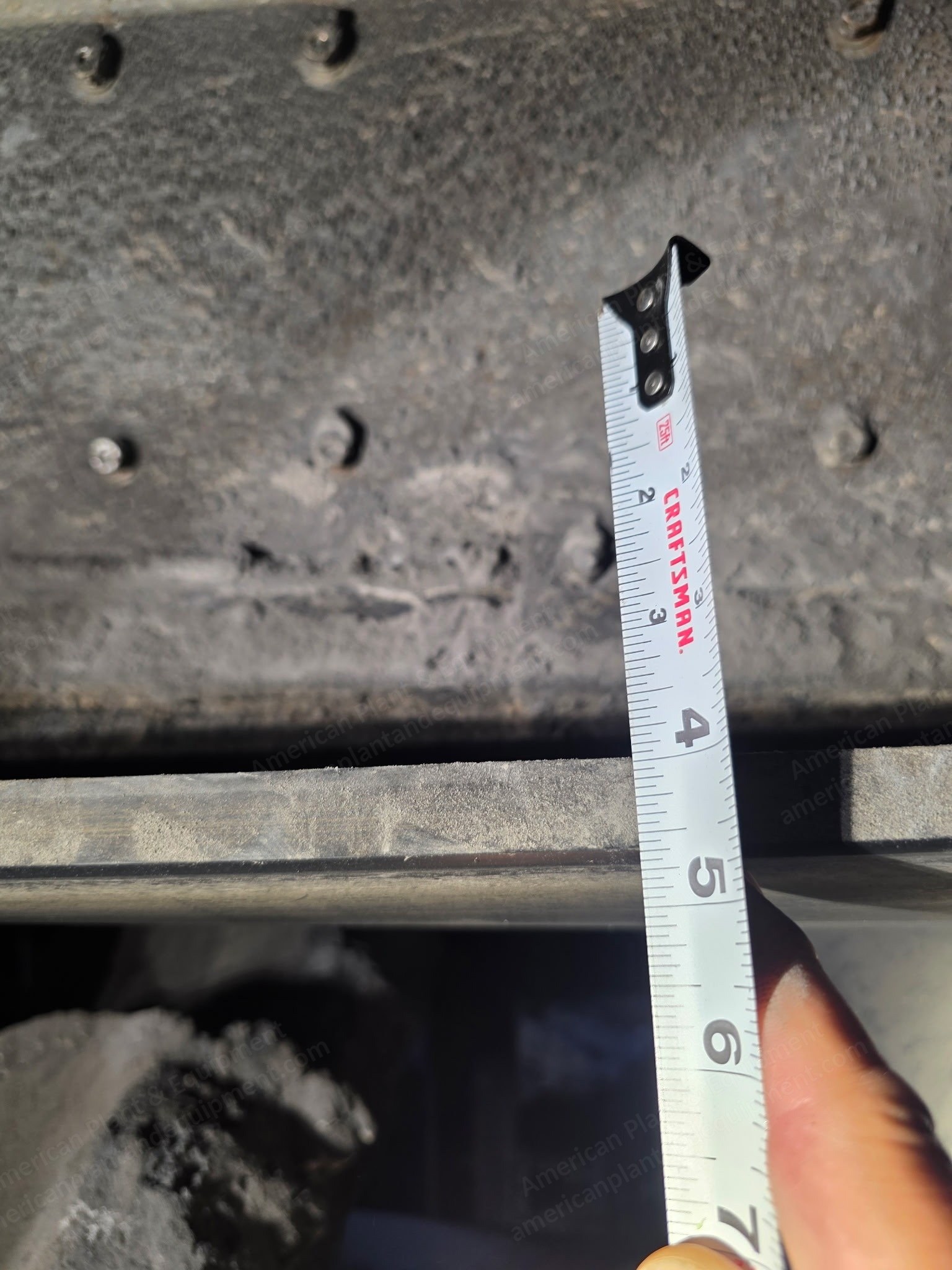

6. 44 in wide

7. No chevron top cover

8. Sold as is: this is a pipe belt, and its performance on a conventional troughed conveyor is not guaranteed

Manufacturer And Model

1. Manufacturer: Phoenix CBS GmbH, Hamburg

2. Manufacturer spec sheet dated 26-Feb-14

3. Model: PHOENOCORD Steel-Cord Conveyor Belt 1125 St 2250 7T/7T Pipe X

Specifications

1. Nominal breaking strength 2250 N/mm (DIN 22131)

2. Width 1125 mm (44.3 in)

3. Thickness 19.4 mm (0.8 in)

4. Belt weight approx. 34.0 kg/m (22.8 lb/ft)

5. Steel cord: 89 cords

6. Cord diameter 5.4 mm (0.2 in)

7. Cord pitch 12 mm (0.5 in)

8. Cord breaking strength >= 29 kN

9. Cord construction 7x7

10. Top cover 7 mm (0.3 in)

11. Bottom cover 7 mm (0.3 in)

12. Hardness 60 Shore A

13. Abrasion <= 120 mm3

14. Tensile >= 23.0 N/mm2

15. Transverse reinforcement: fabric

16. Operating temperature -45 to 60 C (-49 to 140 F)

Splice Recommendation

1. Recommended splice: 2 steps

2. Step length 450 mm (17.7 in)

3. Splice length 1250 mm (49.2 in)
