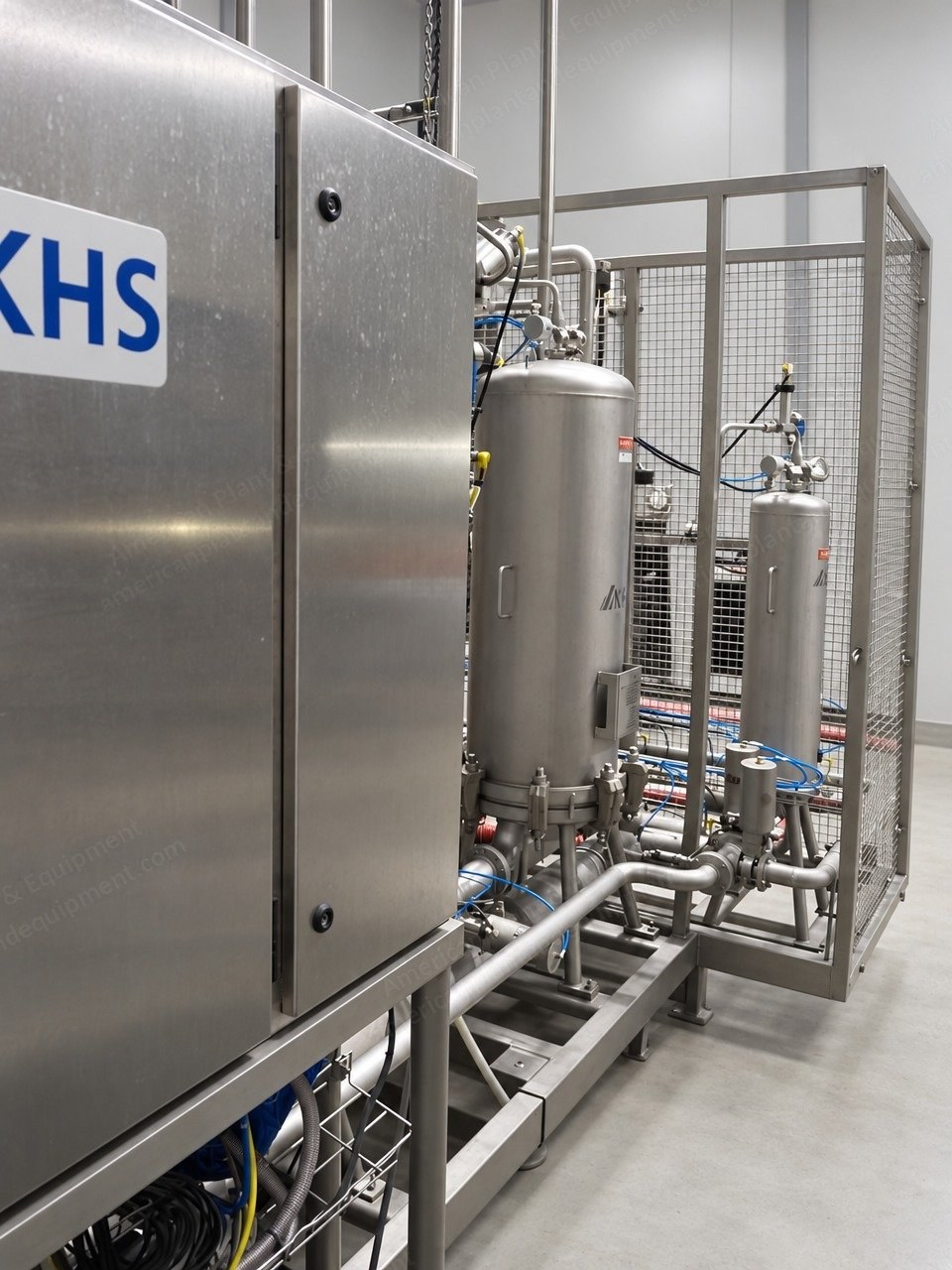

KHS, Corvus, 2007, Cartridge Filtration System, 4 Housings

Overview

1. Built in 2007 by KHS AG in Dortmund, Germany

2. Four stainless steel KHS cartridge filter housings for 40-inch cartridges connected through a pneumatically operated valve manifold

3. Controlled from the skid's own stainless steel control cabinet with Siemens PLC

4. The Corvus range is designed for clarifying filtration, cold sterile filtration and safety filtration of wine, beer and water ahead of the filler

5. Last used for wine filtration in a bottling line

Technical Data

1. Manufacturer: KHS AG (Dortmund, Germany)

2. Model: Corvus

3. Year of manufacture: 2007 (filter housings 2006)

4. Machine type: cartridge filtration system (microfiltration), skid-mounted

5. Filter housings: 2 housings for 19 cartridges of 40 inch (1,016.0 mm (40 in)), 143 L (37.8 gal) each; 2 housings for 12 cartridges of 40 inch (1,016.0 mm (40 in)), 108 L (28.5 gal) each

6. Housing design ratings: max. 10 bar (145 psi) at up to 90C, max. 2 bar (29 psi) at 121C

7. Material: stainless steel

8. Overall dimensions: approx. 3,600 x 1,700 x H 3,750 mm (147.6 in)

Equipment

1. 4 CE-marked KHS cartridge filter housings

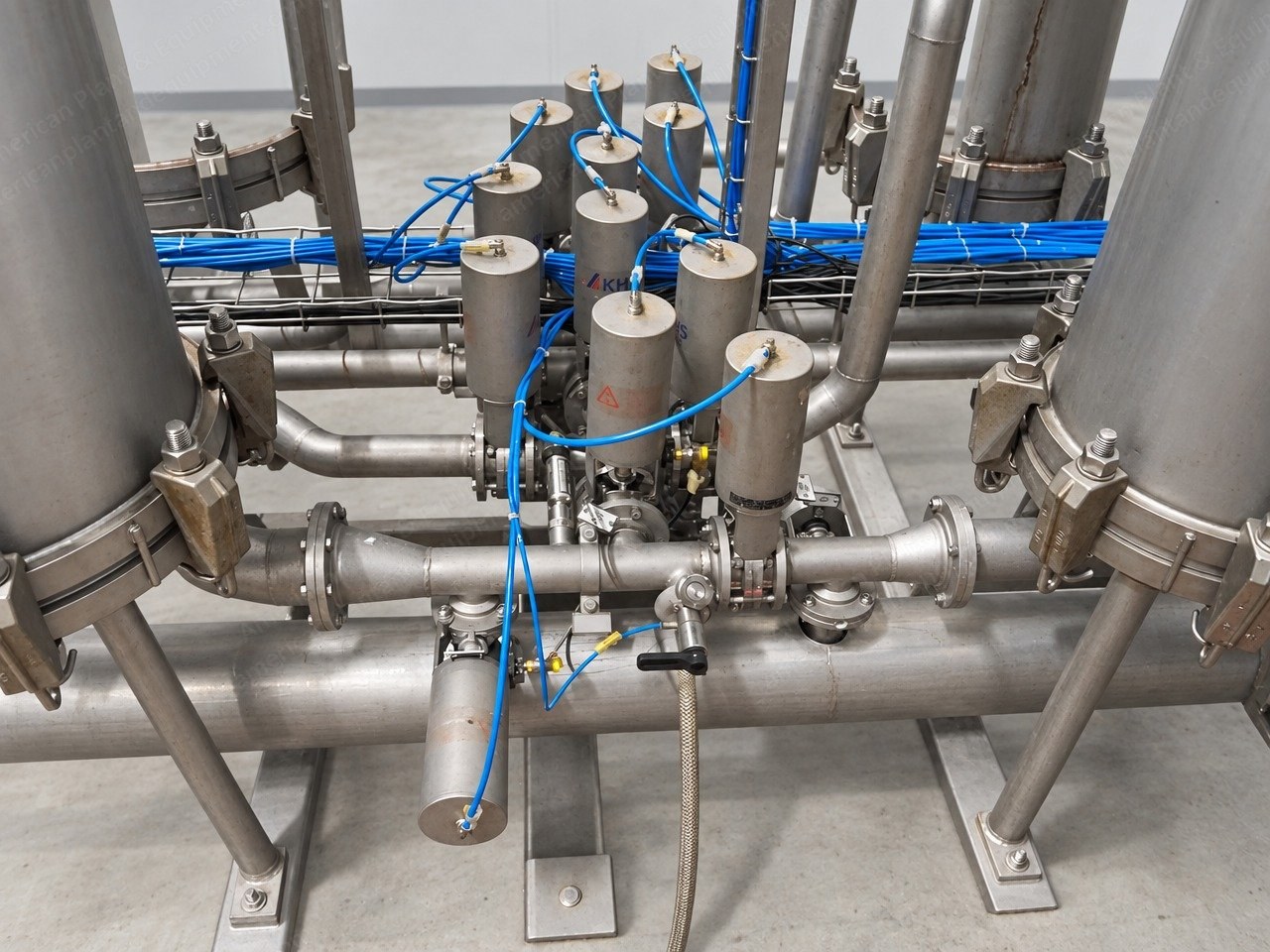

2. Pneumatically operated valve manifold with stainless steel piping

3. Pressure gauges and process instrumentation

4. Stainless steel control cabinet with Siemens PLC and pneumatic valve terminals

5. Stainless steel skid frame with mesh safety guarding

Condition

1. Used

2. Still installed and can be inspected by appointment

Availability

1. Immediately
