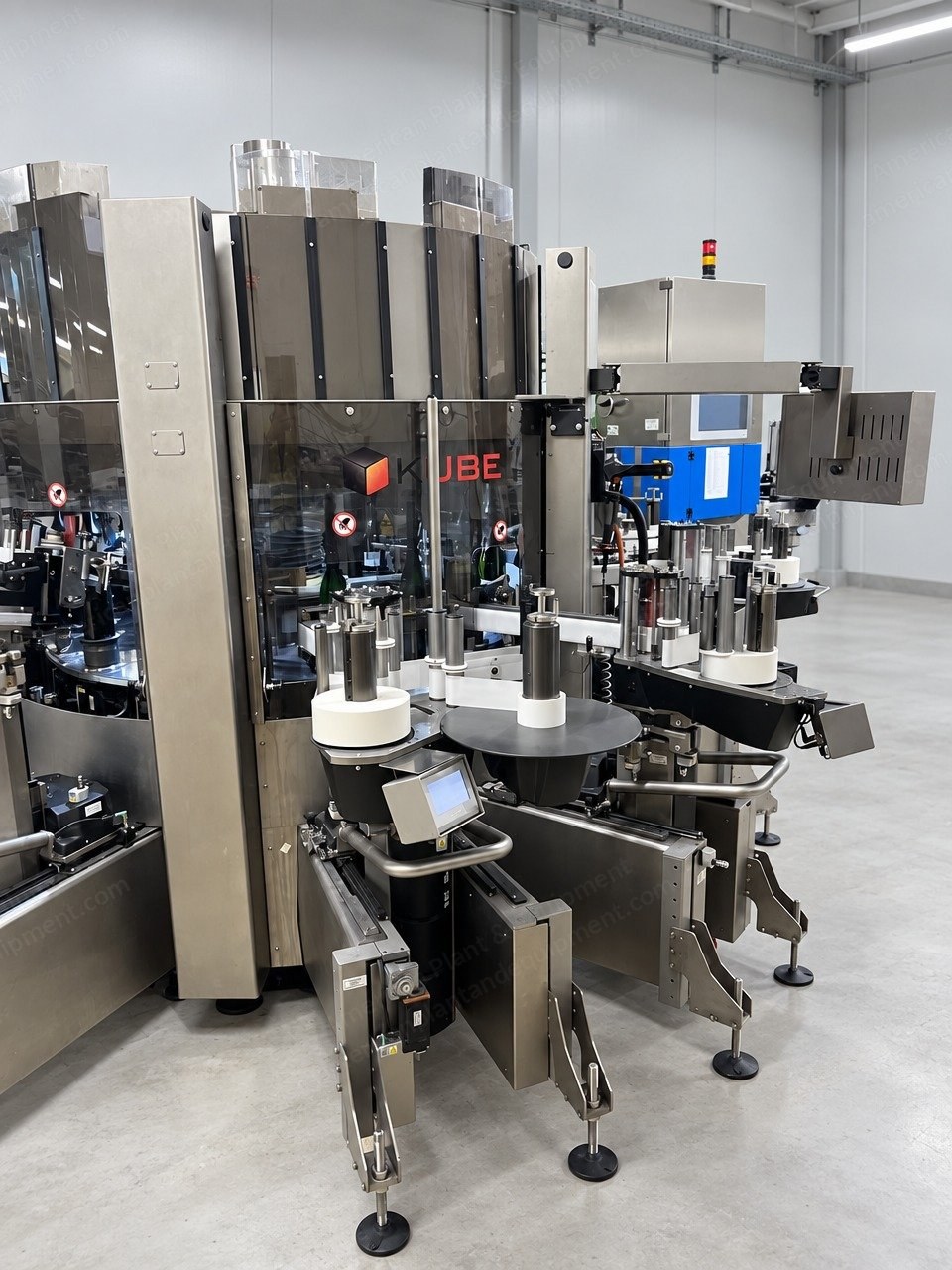

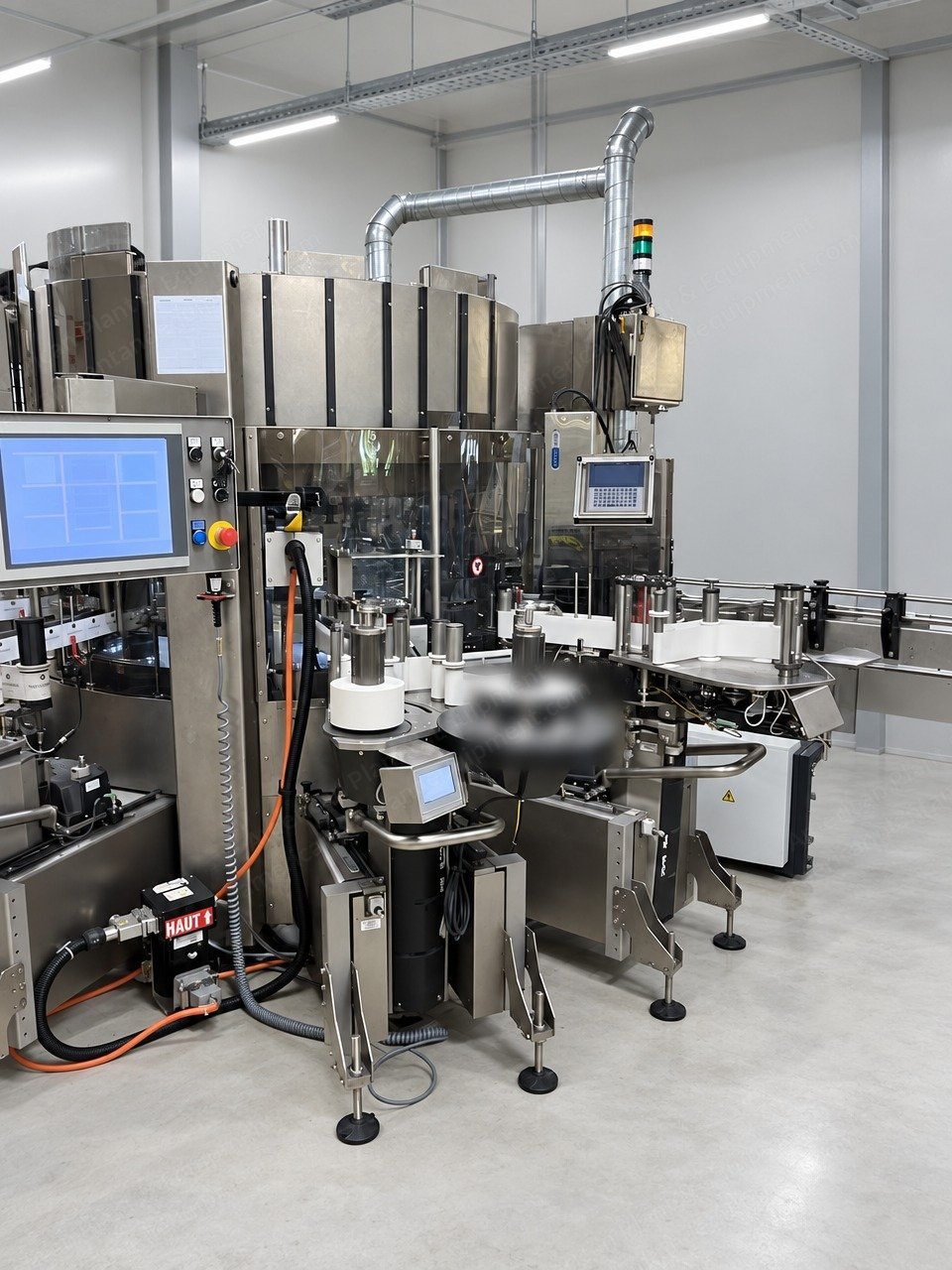

Sacmi, KUBE 60, 2017, Rotary Self-Adhesive Labeler, up to 12,000 bottles/hr

Overview

1. Built in Italy in 2017

2. Six self-adhesive labelling stations

3. Eighteen servo-driven bottle plates

4. Maximum output of 12,000 bottles per hour in its current configuration

5. Labels 750 ml glass bottles in a sparkling wine line

6. Currently runs at about 5,000 bottles per hour

7. LINX SL301 laser marking system integrated for coding

Technical Data

1. Manufacturer: SACMI

2. Model: KUBE 60

3. Year of manufacture: 2017

4. Machine type: rotary self-adhesive labeller

5. Maximum output: 12,000 bottles/h

6. Current production speed: about 5,000 bottles/h

7. Containers: glass bottles, 750 ml

8. Self-adhesive labelling stations: 6

9. Bottle plates: 18, servo-driven

10. Electrical supply: 480 V, 3 phases + N + PE, 60 Hz

11. Rated current: 13 A

Equipment

1. Six self-adhesive labelling stations with their own operator displays

2. Main touch-screen operator panel

3. LINX SL301 laser marking system for coding

Condition

1. Machine is still installed and in production

2. Can be inspected by arrangement

3. Dismantling and loading are not included

Availability

1. Available from 29 January 2027
