NovaStar, 4-Head Liquid Bottle Filling and Capping Line, 2022, 60 ml to 3,000 ml Bottles, 500 to 2,000 Bottles/h

Overview

1. Fully automatic line, run by 1 person

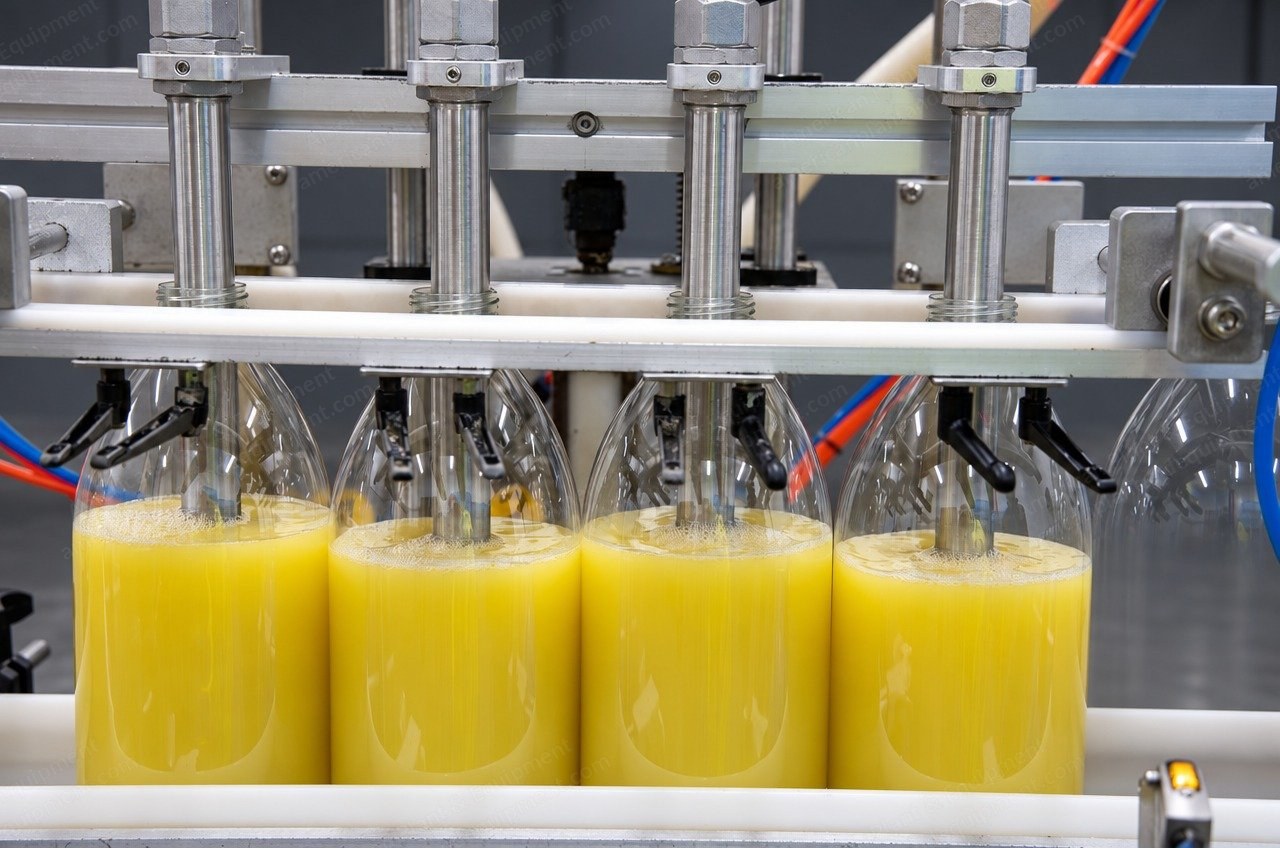

2. Bottles are placed on the line, filled 4 at a time with a 4-headed diving nozzle to avoid foaming, then moved to a cap placer and a cap tightener

3. Cap tightener is set for a 38mm (1.5 in) cap (adjustable)

4. Capable of filling 500-2000 bottles per hour

Specifications

1. Overall weight: 500 kg (1,102 lb)

2. Total length: 6,000 mm (236.2 in)

3. Width: 2,400 mm (94.5 in)

4. Height: 1,900 mm (74.8 in)

5. Inner diameter: 610 mm (24.0 in)

6. Machine base height: 900 mm (35.4 in)

7. Operating pressure: 9 bar (130.5 psi)

8. Input voltage: 220 V, 50 Hz, 16 A, AC

Condition

1. Condition: ready for operation (used)

2. Functionality: fully functional

3. Regularly maintained
