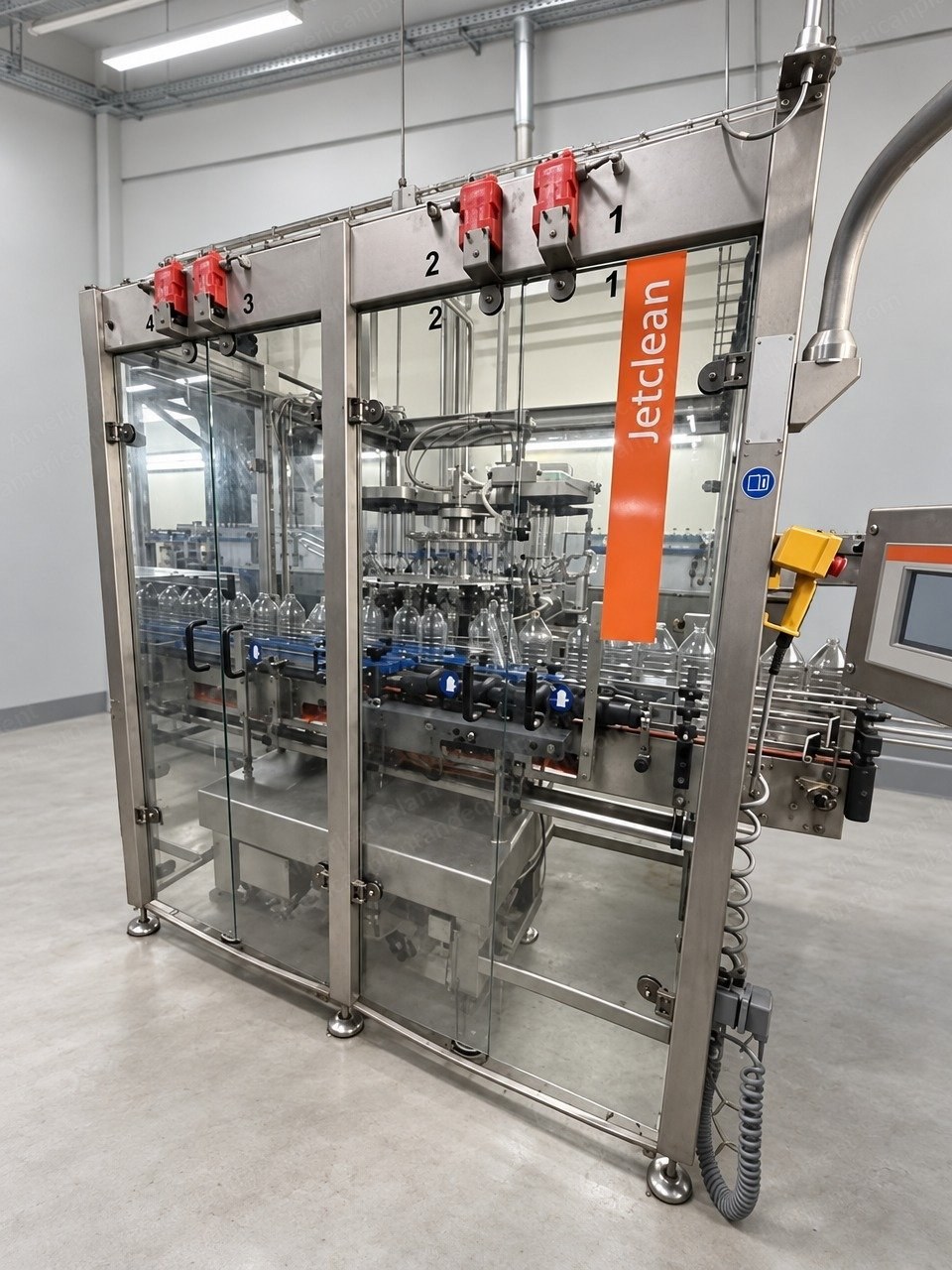

Kosme, JETCLEAN G 16/960 1T UP, 2013, Rotary Air Rinser, up to 6,000 containers/hr

Description

Overview
1. Cleans empty bottles and containers automatically before filling.
2. Containers are turned upside down and blown out with filtered air through moving air nozzles, removing loose particles and contamination before the containers reach the filler.
3. Containers are held in grippers on the rotating carousel and inverted for the air treatment.
4. Machine is fully enclosed by transparent safety doors.

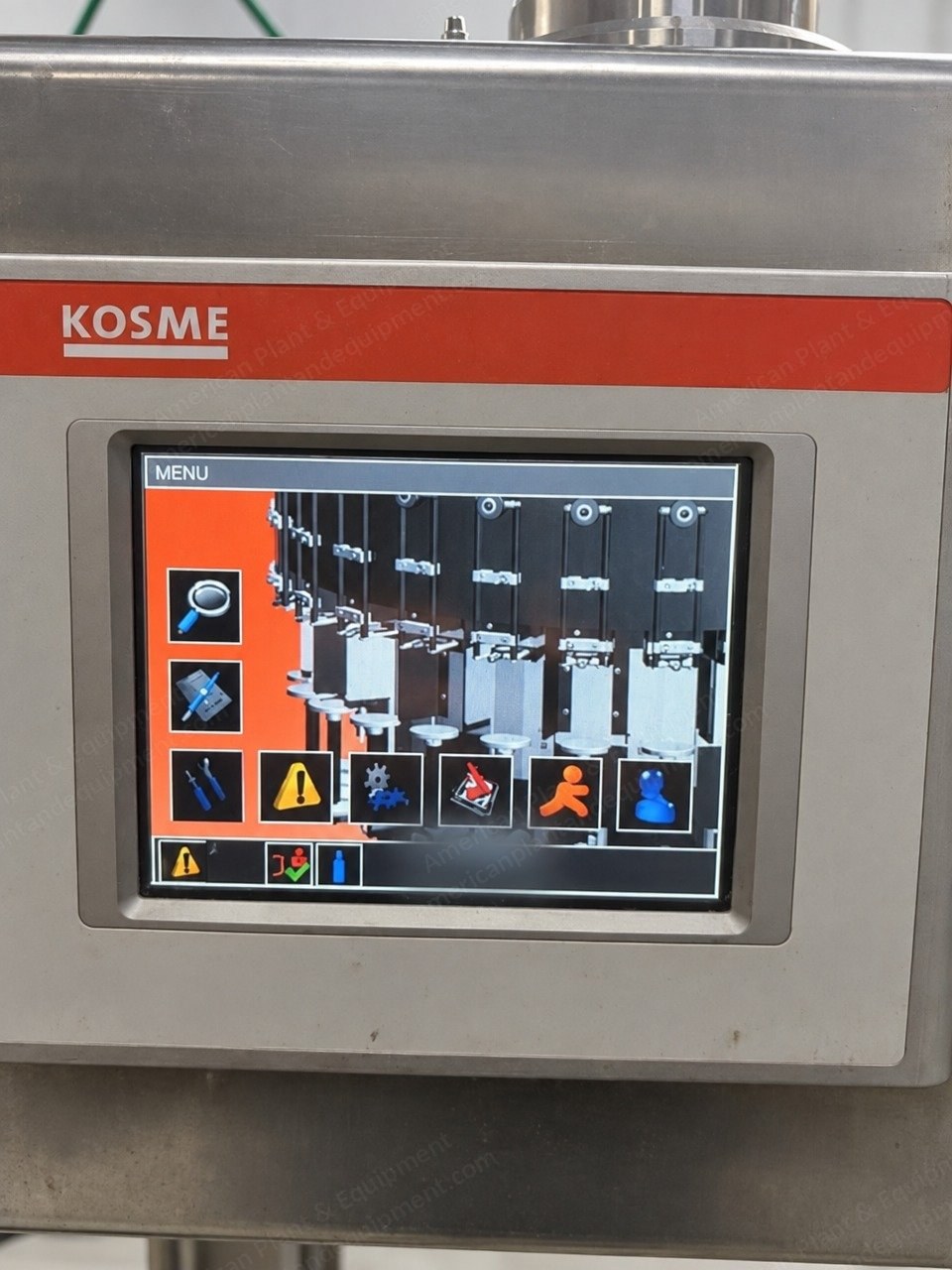

5. Operated from a KOSME touch panel with production data and recipe management.
6. Covers container formats from 400 g/ml to 2 kg (4.4 lb) at an output of up to 6,000 containers per hour.
7. Format currently set up is a 2 L (0.5 gal) PET bottle; other formats via the available change parts.
Technical Data
1. Manufacturer: KOSME.
2. Model: JETCLEAN G 16/960 1T UP.
3. Year of manufacture: 2013.
4. Machine type: rotary rinser for empty containers, air blowing.
5. Treatment medium: filtered air.
6. Format range: 400 g/ml to 2 kg (4.4 lb) containers.
7. Output: up to 6,000 containers per hour.
8. Current format: 2 L (0.5 gal) PET bottle.
9. Dimensions: approx. 2.5 x 2.5 m (8.2 x 8.2 ft).
Included
1. Rotary carousel with container grippers and inverting section.
2. Moving air nozzles for blowing out the containers.
3. Transparent safety doors.
4. KOSME touch panel with production screen and recipe management.
5. Electrical documentation and wiring diagram.
Condition
1. Used.
