Allen-Bradley, PowerFlex 755TL, 2024, Active Front End AC Drive, 200 HP, 480 VAC, 248 A, Frame 6, New in Box

Allen-Bradley, PowerFlex 755TL, 2024, Active Front End AC Drive, 200 HP, 480 VAC, 248 A, Frame 6, New in Box

Description

  1. Overview

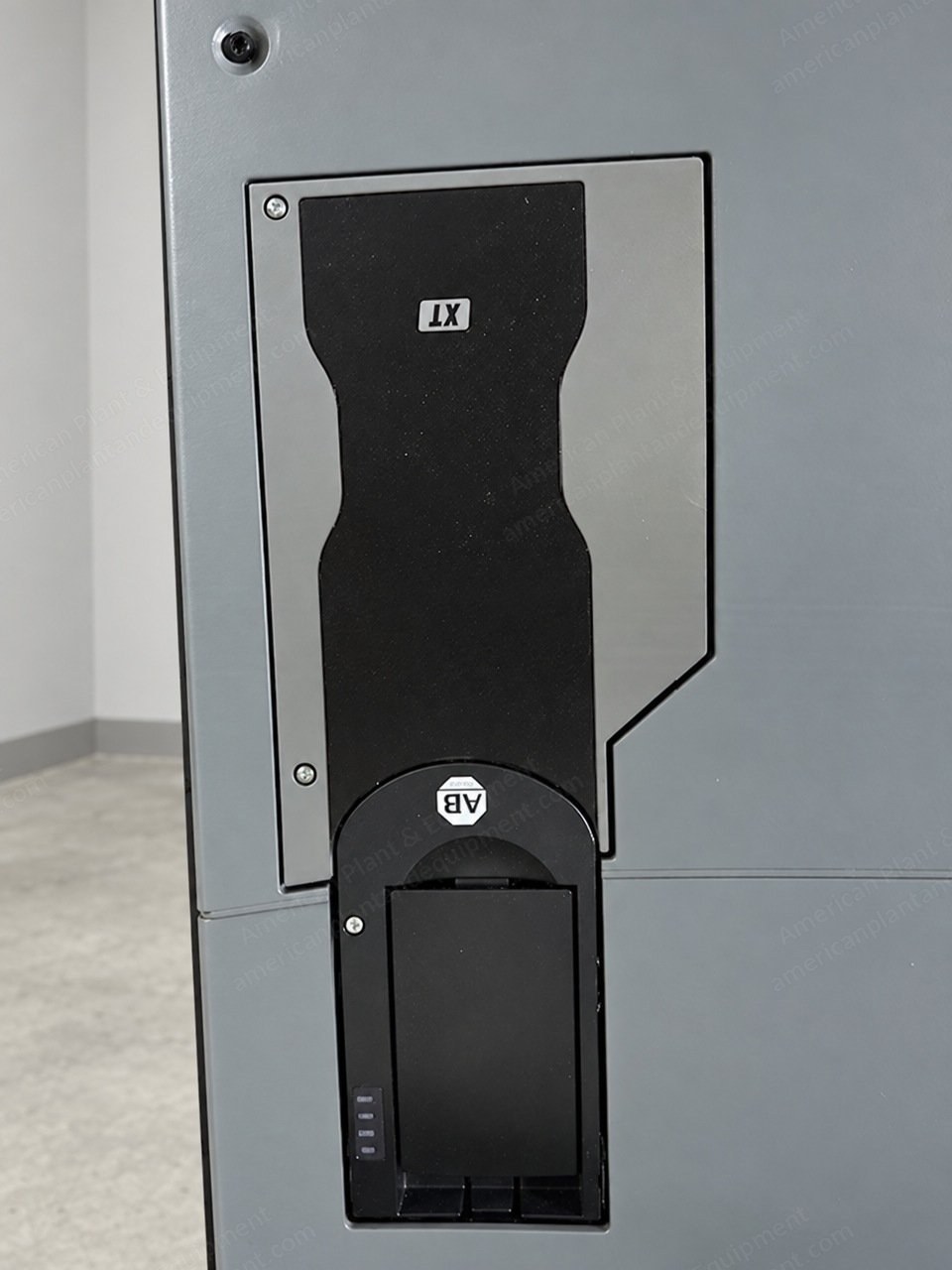

    1. Allen-Bradley PowerFlex 755TL active front end (low harmonic) AC drive

    2. PowerFlex 750-Series, Frame 6

    3. XT version

    4. Manufactured June 2024

    5. New in box, unused

  2. Specifications

    1. Input: 480 VAC, 3 phase

    2. Output current: 248 A

    3. Rated power: 200 HP (149.1 kW)

    4. Enclosure: UL Open Type / IP00 (UL Type 1 with debris hood and conduit box)

    5. Series B, firmware 13.002

    6. Marks: UL Listed Ind. Cont. Eq., CE, EAC, KC, RCM

  3. Included

    1. Allen-Bradley PowerFlex 750-Series Frame 6 ground plate kit, catalog SK-RM-GNDPLT-F6

  4. Condition

    1. New in box, unused

    2. Crated on a wooden skid in its protective wrap
