Pinnacle Converting Equipment, Versa-SPR, 2021, Slitter Perforator Rewinder for Nonwovens, 50 in Web Width, 60 in Unwind, 400 fpm

Pinnacle Converting Equipment, Versa-SPR, 2021, Slitter Perforator Rewinder for Nonwovens, 50 in Web Width, 60 in Unwind, 400 fpm

Description

  1. Overview
    1. Pinnacle Converting Equipment Versa-SPR slitter perforator rewinder for nonwovens
    2. Year: 2021

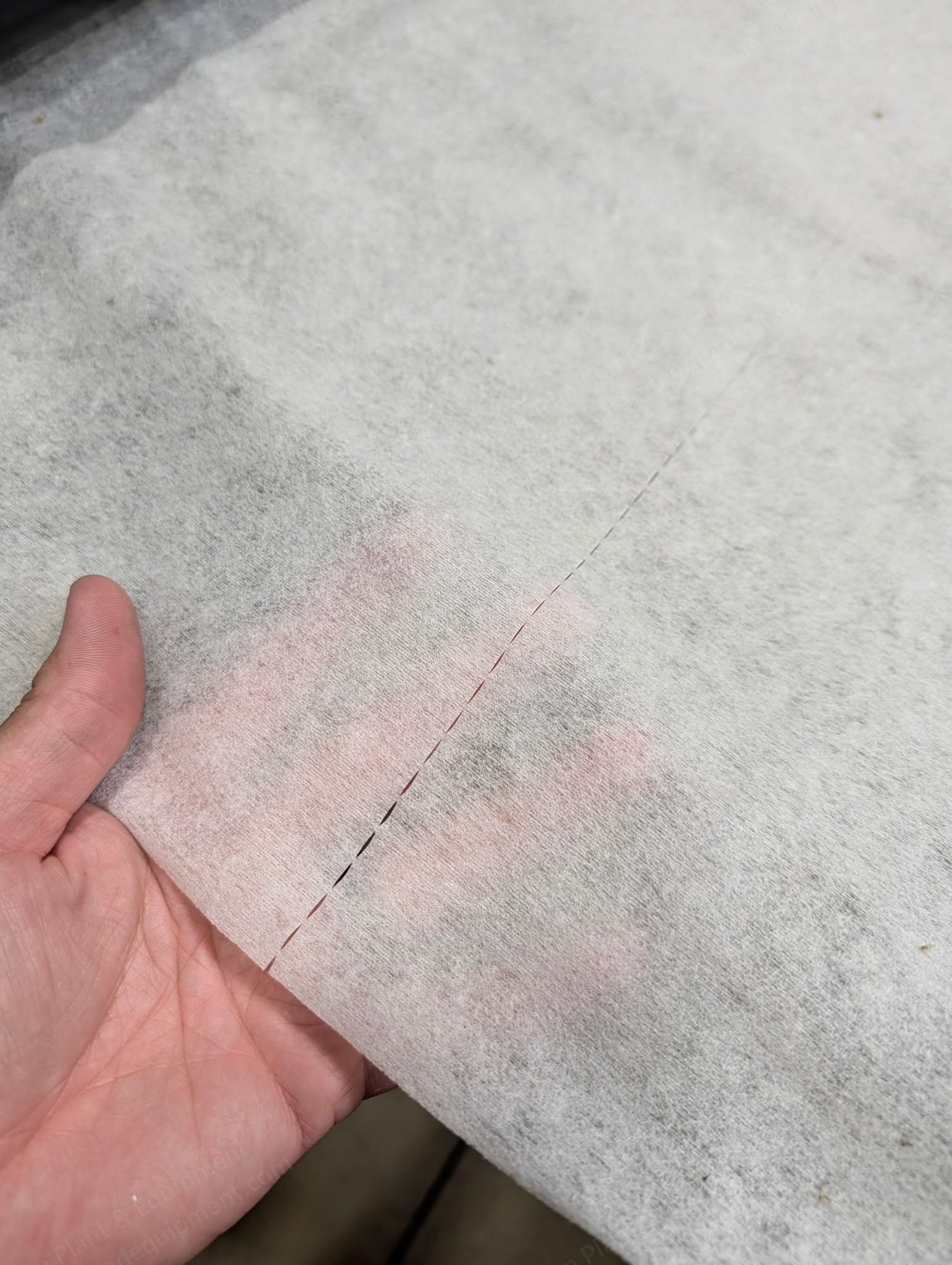

    3. Designed and built specifically for slitting and perforating nonwoven used in canister-filled wet or dry wipe applications
    4. Capable of running other materials
    5. Machine is running
  2. Specifications
    1. Maximum web width: 50 in (1,270 mm)
    2. Maximum unwind diameter: 60 in (1,524 mm)
    3. Maximum rewind diameter: 10 in (254 mm)
    4. Coreless rewind shafts
    5. Output: up to 60 rolls per minute
    6. Maximum mechanical speed: 400 fpm (122 m/min)

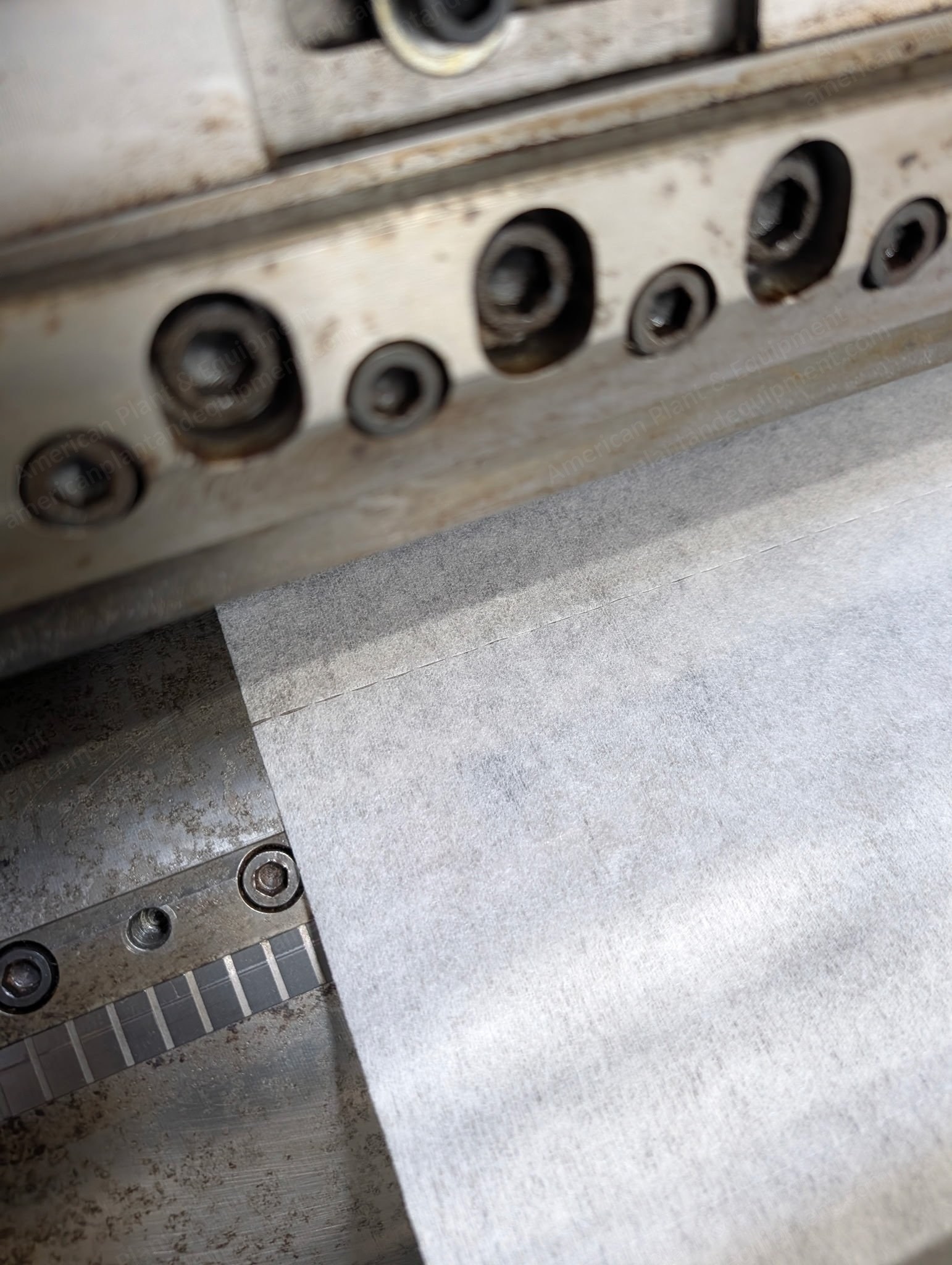

    7. Tidland shear slitting section with 7 knife holders; more can be added
    8. Turret system with 3 spindles
    9. Shaftless floor pick-up unwind stand
    10. Electrical: 460 V, 3 phase
