Mining Conveyor Belting, Conveyor Parts and Electric Motors Lot, 10 Belt Rolls 900 and 1050 mm, 16 Motors 55 to 375 kW

Overview

1. One lot of mining stores: conveyor belting, conveyor drive and running parts, and electric motors

2. 10 rolls of fabric-ply conveyor belting in 1050 mm (41.3 in) and 900 mm (35.4 in) widths, 5 rolls unused and 5 rolls used

3. 16 electric motors from 55 kW to 375 kW (74 to 503 hp), plus a group of smaller motors

4. Condition: belting partly unused, partly used; parts and motors used, not individually graded, condition as shown in the photos

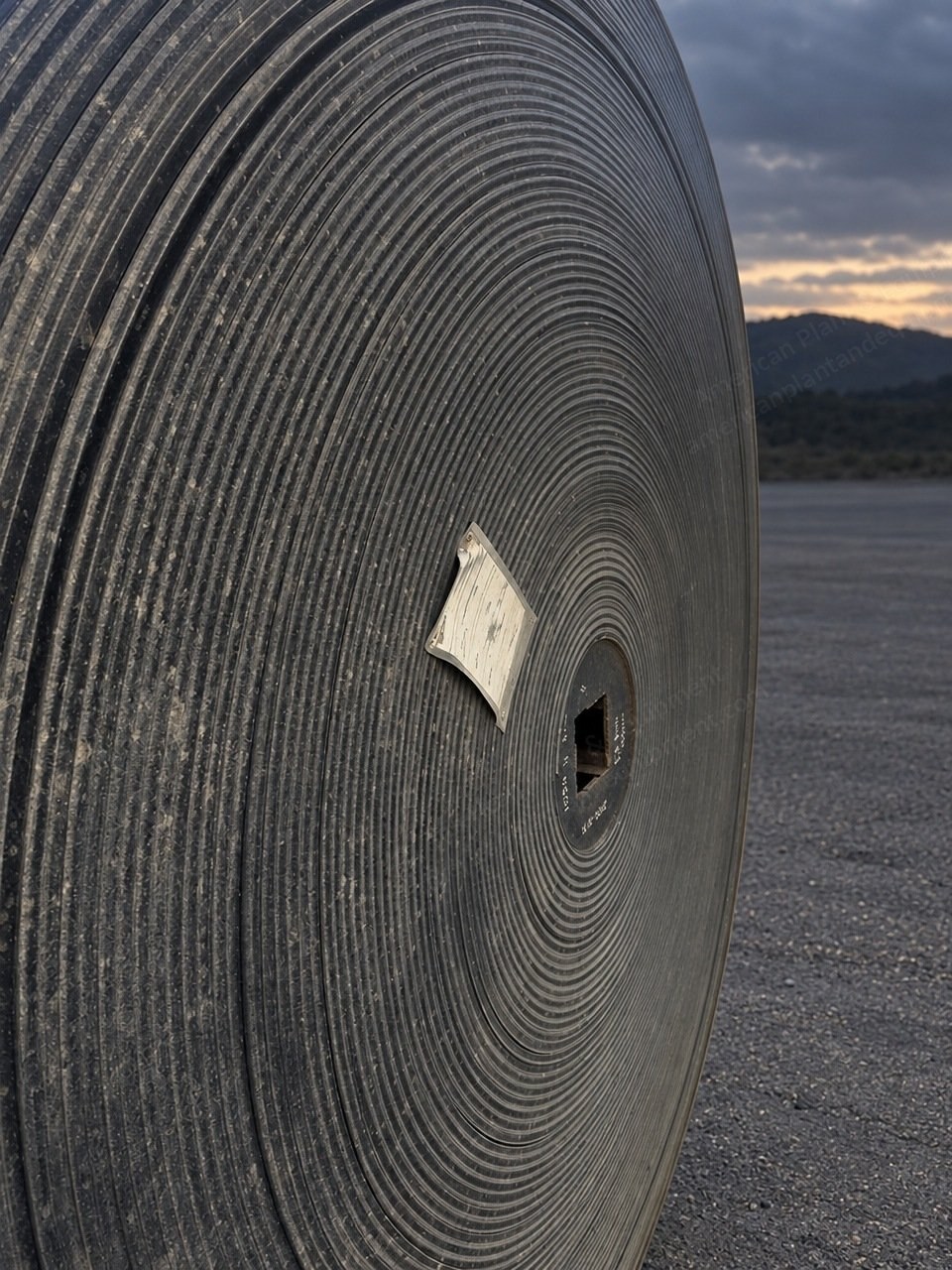

Conveyor Belting (10 Rolls)

1. 2 rolls, 1050 mm (41.3 in) wide, class 1600, 4 ply, unused, 300 m (984 ft) each

2. 3 rolls, 1050 mm (41.3 in) wide, class 800, 4 ply, used, two of them 300 m (984 ft) each, one length not stated

3. 2 rolls, 900 mm (35.4 in) wide, unused, length not stated

4. 1 roll, 900 mm (35.4 in) wide, class 630, 4 ply, unused, 200 m (656 ft)

5. 1 roll, 900 mm (35.4 in) wide, class 630, 4 ply, used, 300 m (984 ft)

6. 1 roll, 900 mm (35.4 in) wide, class 800, 4 ply, used, 300 m (984 ft)

Conveyor Parts

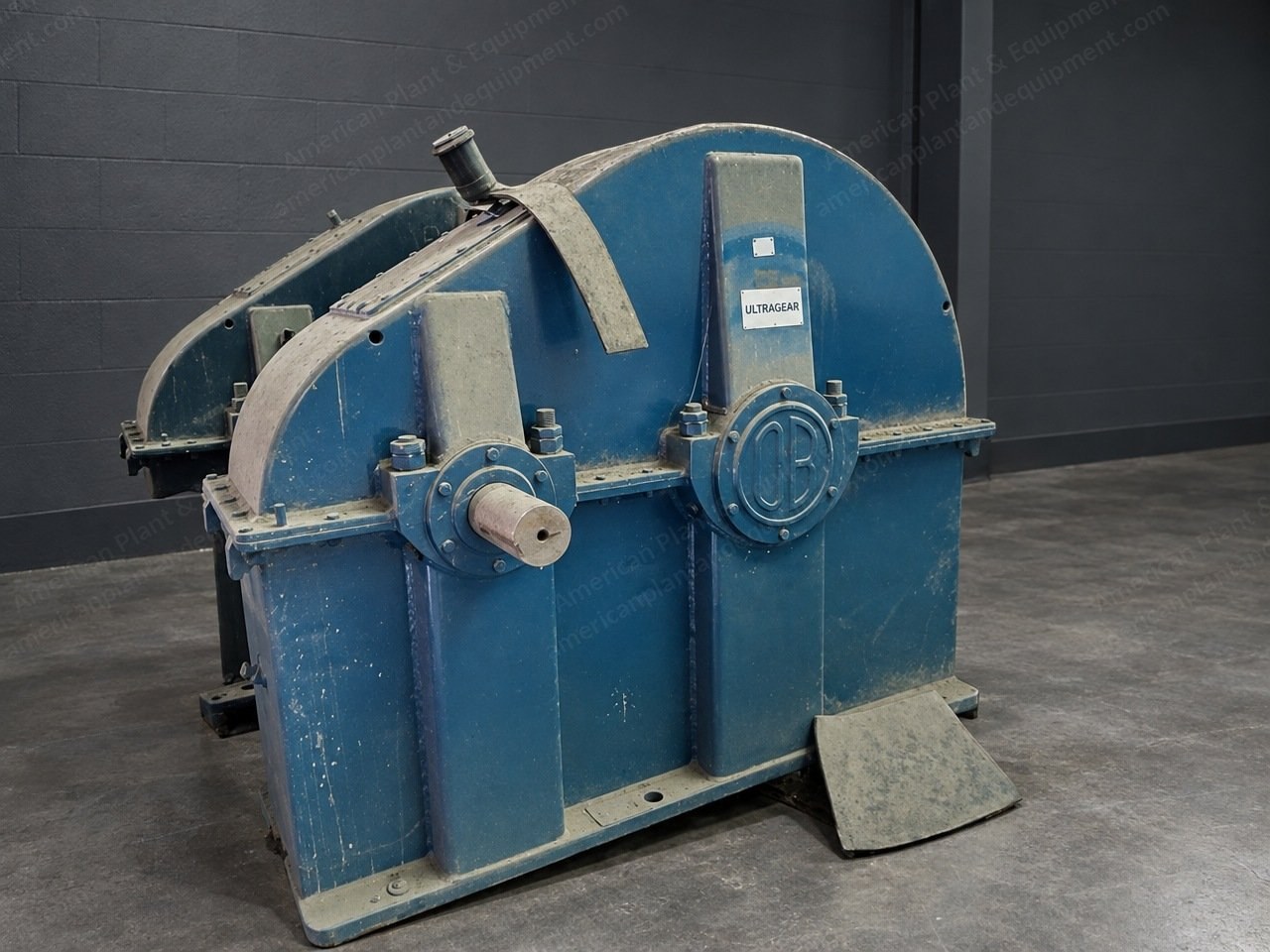

1. Exit conveyor gearboxes

2. Conveyor drum pulleys

3. Conveyor idlers and idler rollers

4. Mixed spares: drum pulleys, a gearbox, idlers and other conveyor parts

5. Scrubber parts: 2 gearboxes, rubber liners, lifter parts, adaptor plates, white metal bearings

6. Screen parts: beams, bridge, stringers; also piping, chute liners and wire rope

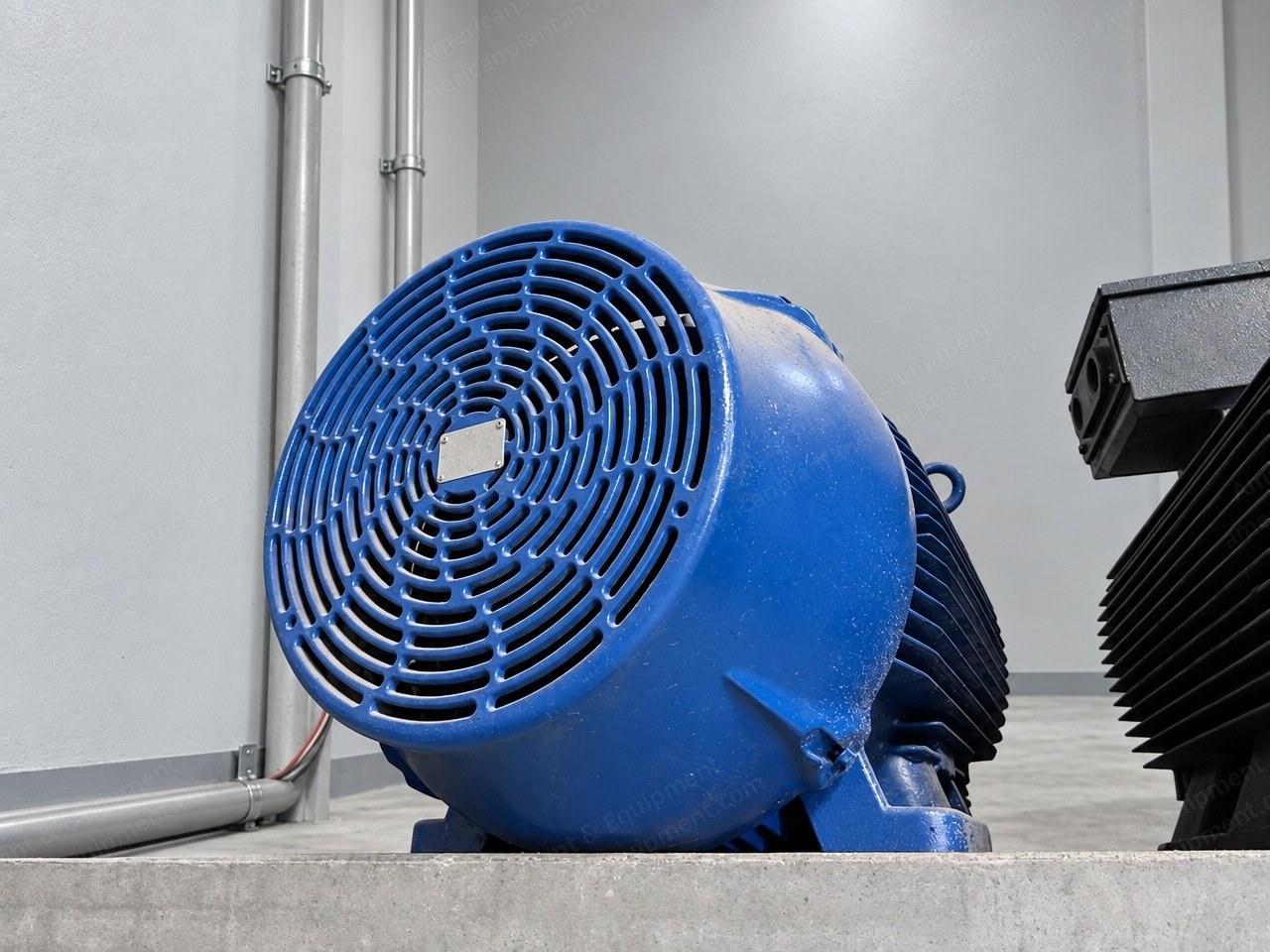

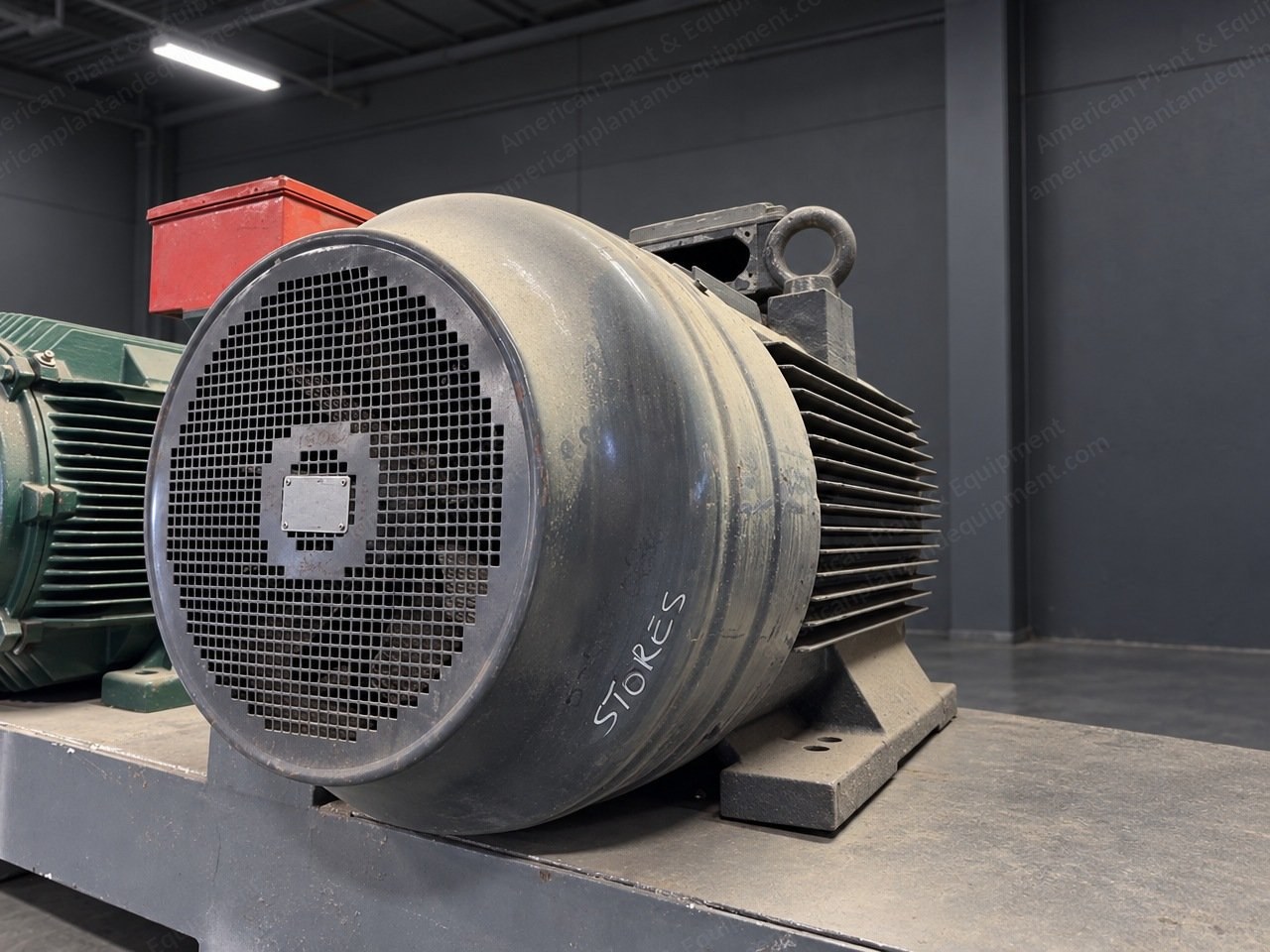

Electric Motors

1. Mostly 525 V, 4 pole (about 1,500 rpm at 50 Hz)

2. 1 x 375 kW (503 hp), 3300 V cage induction motor

3. 1 x 250 kW (335 hp), 525 V

4. 1 x 220 kW (295 hp), 525 V

5. 3 x 200 kW (268 hp), two at 525 V, one voltage per nameplate

6. 6 x 160 kW (215 hp), 525 V

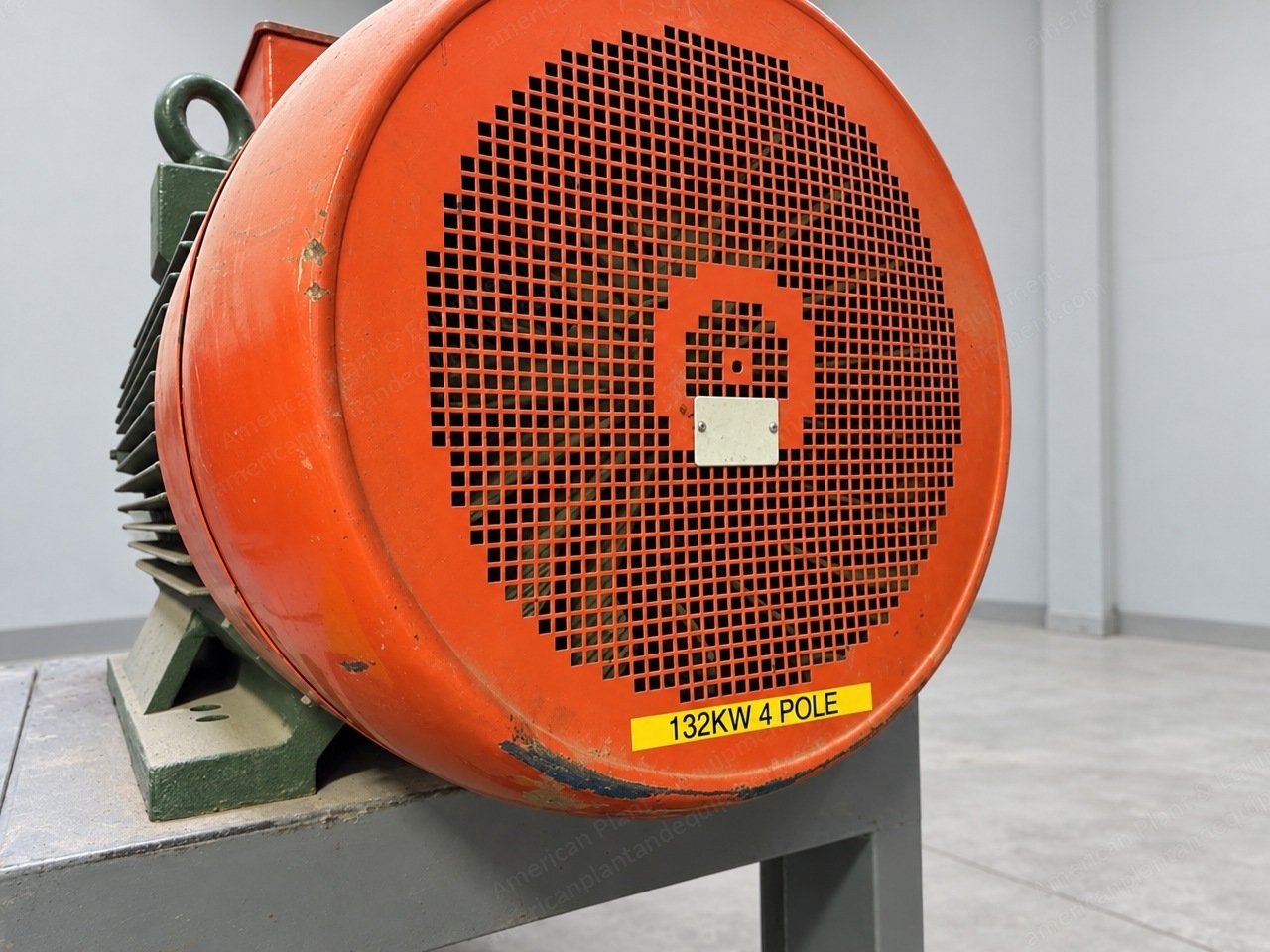

7. 2 x 132 kW (177 hp), 525 V

8. 1 x 90 kW (121 hp), 525 V

9. 1 x 55 kW (74 hp), voltage per nameplate

10. A group of smaller motors, 5.5 to 22 kW (7.4 to 30 hp)

11. Motor makes include WEG, ACTOM, Alstom, Siemens, GEC, BMG Motorline and Motorelli
