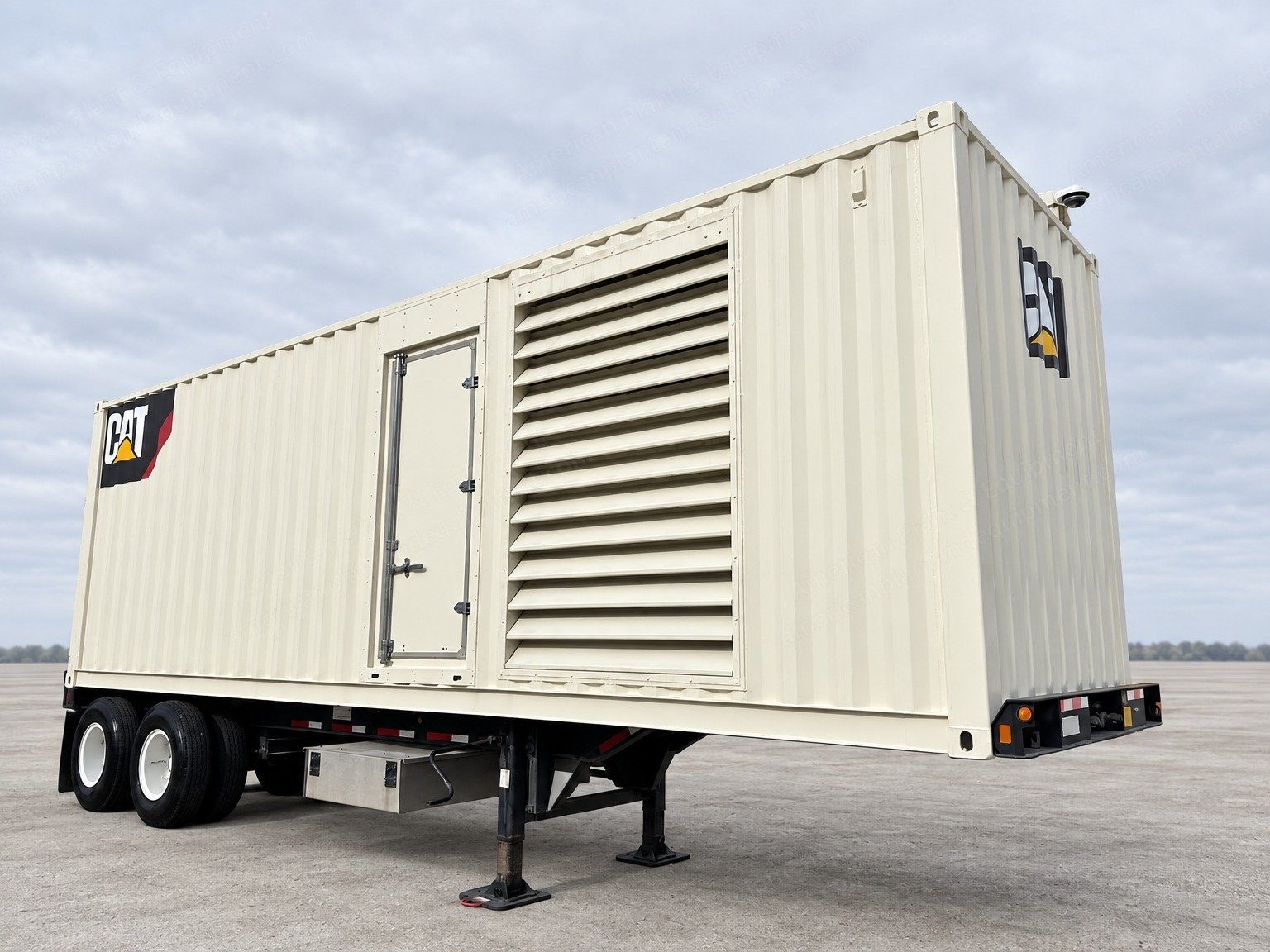

Caterpillar, XQ800 T4i, 2013, 800 kW Prime, Tier 4 Interim, Dual Voltage 480/208V, 60 Hz, 0 Hours Since Overhaul, 30 ft Container on Trailer

Overview

1. 30' containerized power module

Specifications

1. kW: 800 prime

2. Fuel: Diesel; emissions EPA Tier 4 Interim; 1800 RPM

3. Engine: Caterpillar diesel engine, Tier 4 Interim

4. Generator end: Caterpillar SR4

5. Voltage: dual voltage (link board) 277/480V or 120/208V; amperage 1,203A @ 480V / 2,776A @ 208V; duty prime

6. 2500A main line circuit breaker

7. EMCP 4.4 digital control panel

8. Internal exhaust silencer; auto start / stop; safety shutdowns

9. UL142 1250 gallon (4,731.8 L (1,250 gal)) on board fuel tank

10. Shipping: width 96 in, height 162 in, length 360 in, weight 57,000 lbs (25,855 kg (57,000 lb))

Condition

1. Used, 0 hours since major overhaul (20,290 original hours before the overhaul)

2. Major engine overhaul performed by a Caterpillar dealership (scope and OEM parts list available), CAT yellow paint

3. Radiator inspected, cleaned, pressure tested, painted black

4. Generator end cleaned, dipped and baked, new bearing, painted CAT yellow

5. Skid painted black; container cleaned, painted (CAT power module white), doors replaced

6. New fluids and filters; chassis DOT inspected and repaired, painted black

7. 2 hour load test once re-packaged

Included Components

1. Dual axle trailer with title

2. Heavy duty air cleaners; jacket water heater; battery charger; batteries; battery disconnect switch

Warranty

1. 24 month / 6,000 hour Caterpillar overhaul ESC included
