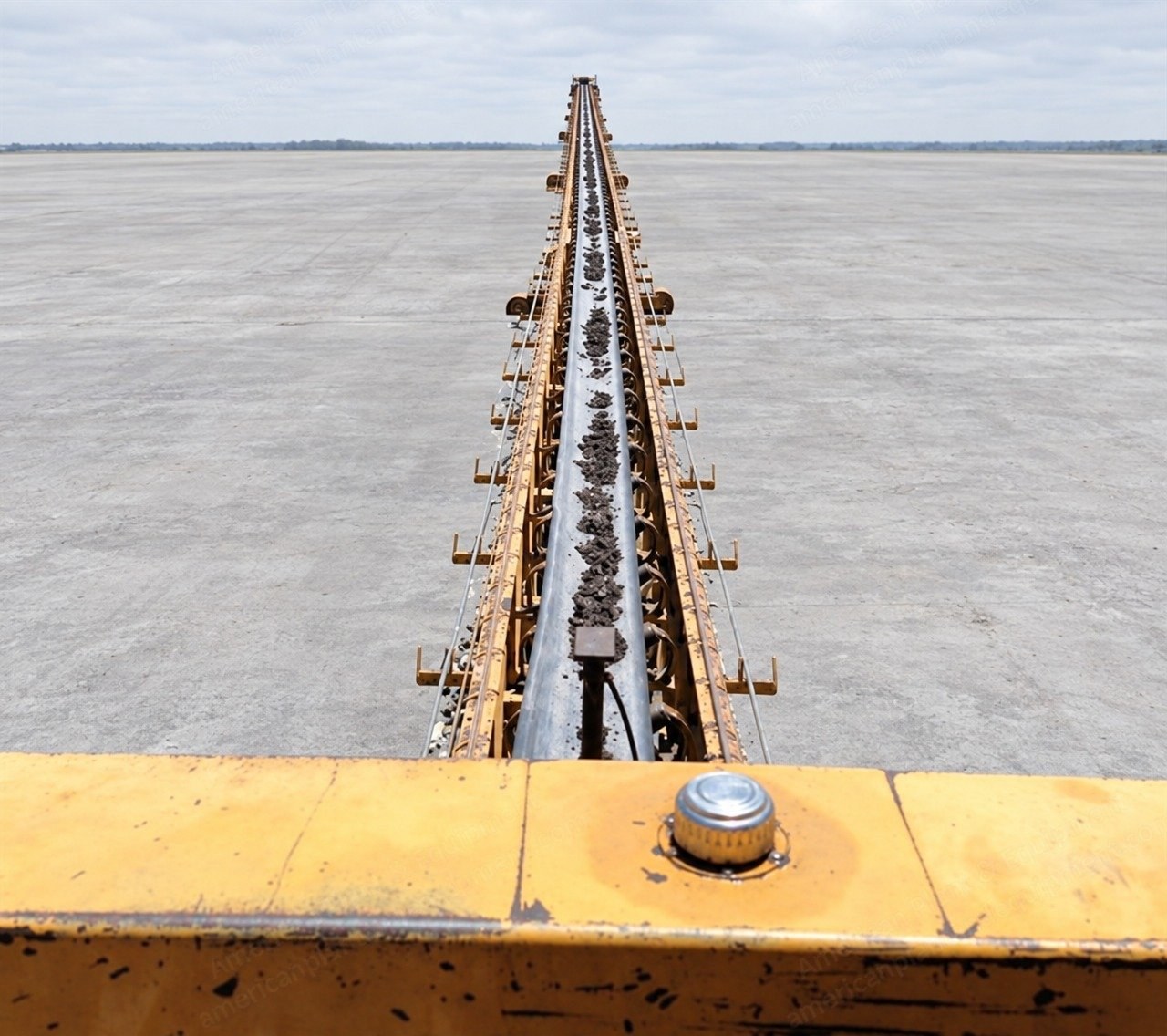

RAHCO, MC30X1500, Mobile Stacking Conveyor System, 30 in x 1,500 ft, Crawler Mounted, 1,000 TPH

RAHCO, MC30X1500, Mobile Stacking Conveyor System, 30 in x 1,500 ft, Crawler Mounted, 1,000 TPH

Description

  1. Overview

    1. RAHCO MC30X1500 mobile material spreading (stacking) conveyor system, electric

    2. 30 in (762 mm) belt, 1,500 ft (457.2 m) long

    3. Crawler undercarriages; the traveling tower rides on tracks and travels the full length of the conveyor

    4. Designed for open pit coal mining, gold mining and large mining operations

    5. Condition: used

  2. Specifications

    1. Capacity 1,000 TPH at 4 in (102 mm) minus material

    2. Belt speed 855 fpm (4.3 m/s)

    3. Drive motor 30 HP (22.4 kW), 1,765 rpm, 286T frame

    4. Dodge TXT505A gearbox, 5.67:1

    5. Head and drive pulleys 16 x 38 in, 1/2 in lagging

    6. Rexnord idlers, 6 x 11 in cans

    7. Stearns brake; GE cable reel gearbox and brake

  3. Features

    1. The side conveyor reverses in either direction from the mobile control tower

    2. Air conditioned and heated control tower

    3. The unit moves 360 degrees or travels straight
