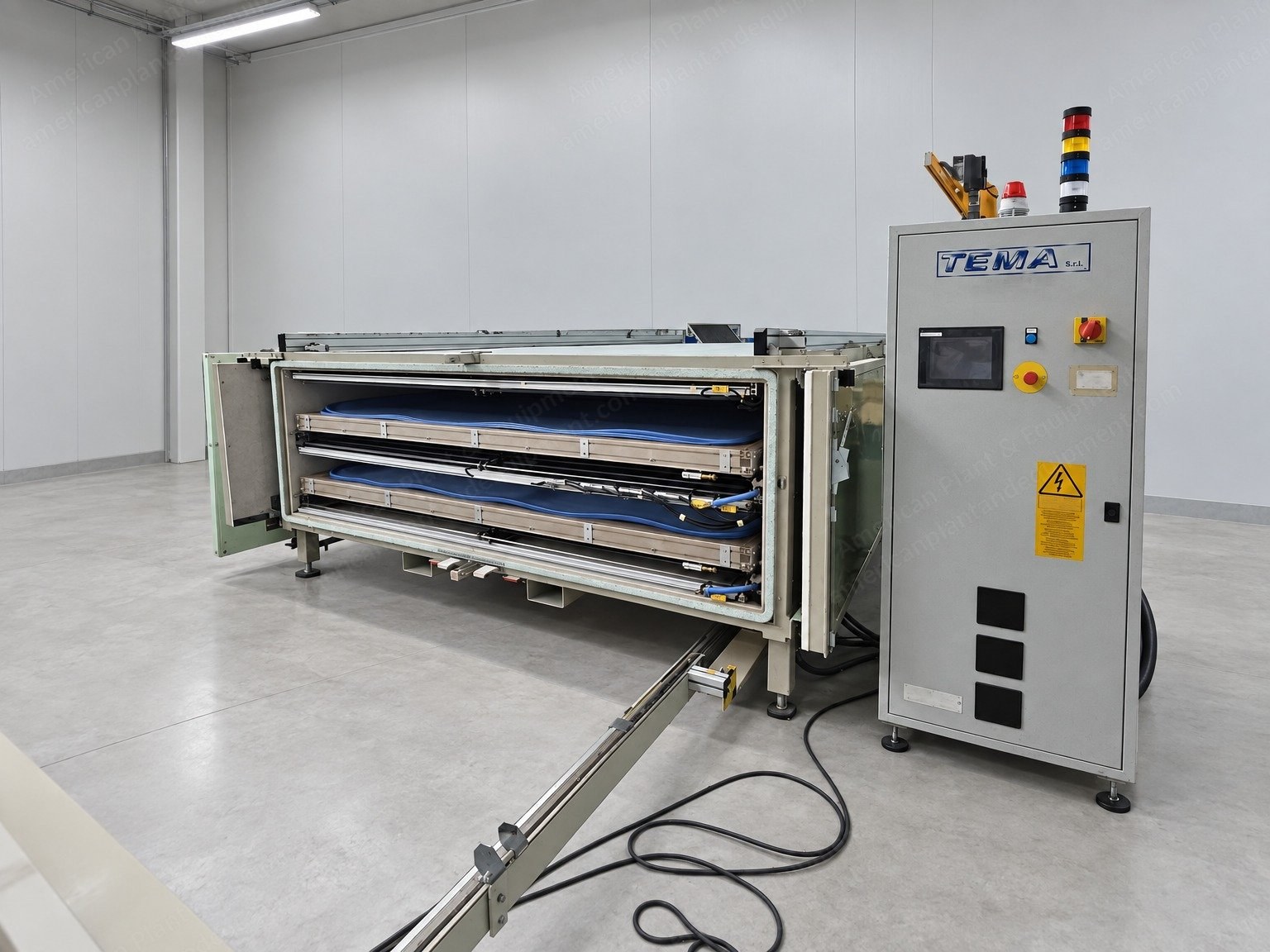

TEMA, M, Vacuum Glass Laminating Oven, 2021, 2,500 x 5,000 mm (98 x 197 in) Glass Size, 2 Frames, 120 Hours

TEMA, M, Vacuum Glass Laminating Oven, 2021, 2,500 x 5,000 mm (98 x 197 in) Glass Size, 2 Frames, 120 Hours

Description

  1. Overview

    1. Vacuum glass laminating oven, 2 lamination frames, vacuum bag method

    2. Year 2021

    3. Used, excellent condition, fully functional

    4. Operating hours: 120 h

  2. Dimensions

    1. Flat glass size: 2,500 x 5,000 mm (98.4 x 196.9 in)

    2. Vacuum bags standard dimensions: 2,650 x 5,150 mm (104.3 x 202.8 in)

    3. Overall dimensions: length 10,000 mm (393.7 in), width 3,000 mm (118.1 in), height 2,500 mm (98.4 in)

  3. Lamination Frames And Vacuum System

    1. Two lamination frames, maximum load 1,200 kg (2,646 lb) each

    2. Two vacuum pumps (one per frame)

  4. Heating And Control

    1. Nine heating zones with individual thermocouples

    2. Digital pressure sensors with PLC system

    3. TEMA 2020 touchscreen control software (multilingual)

  5. Power Supply

    1. 54 kW per chamber

    2. 400 V, 50/60 Hz, three phase + N + ground

    3. Average consumption under 20 kW per hour

  6. Handling Equipment

    1. Hydraulic lifting platform with servomotor assistance
