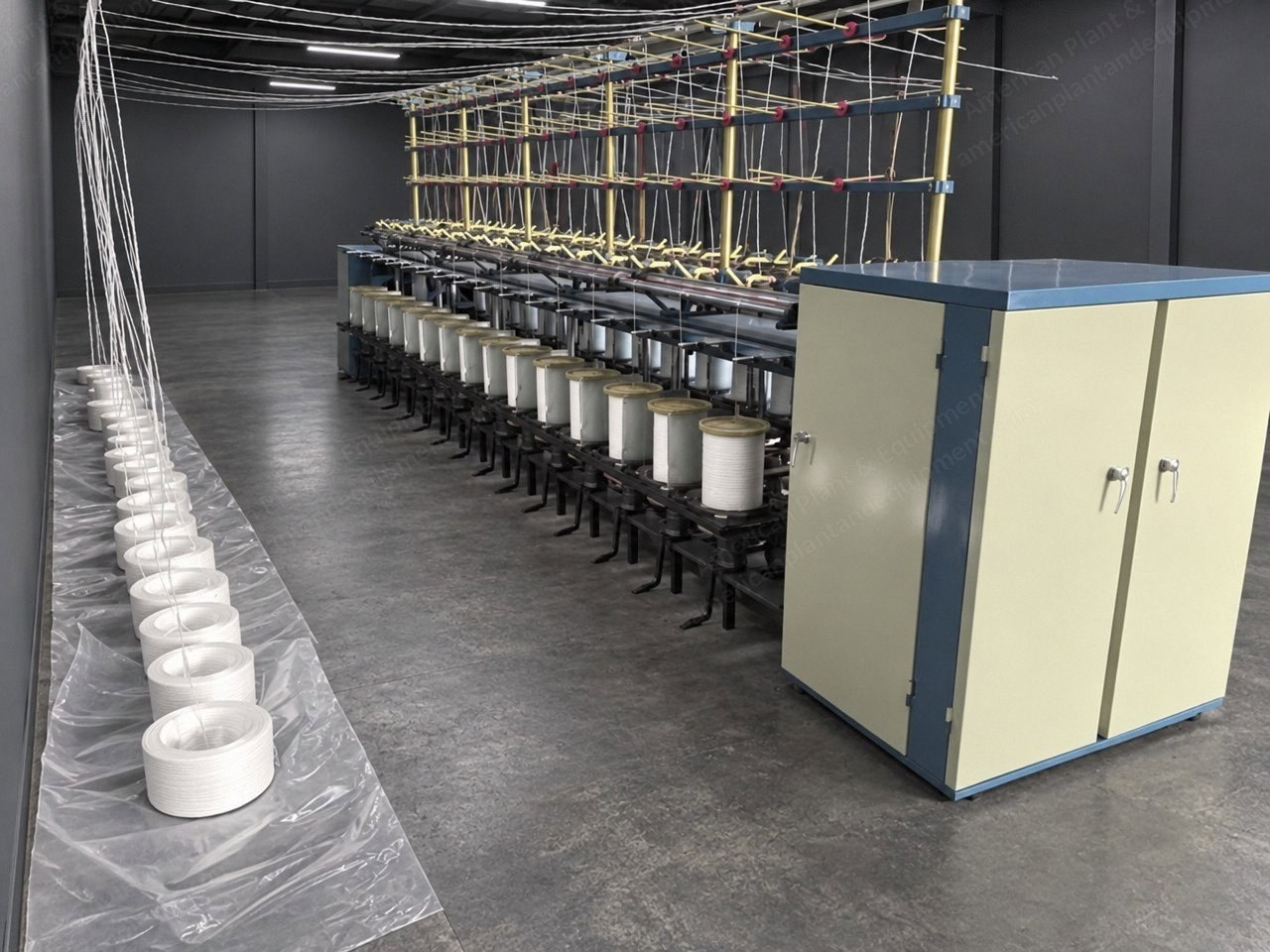

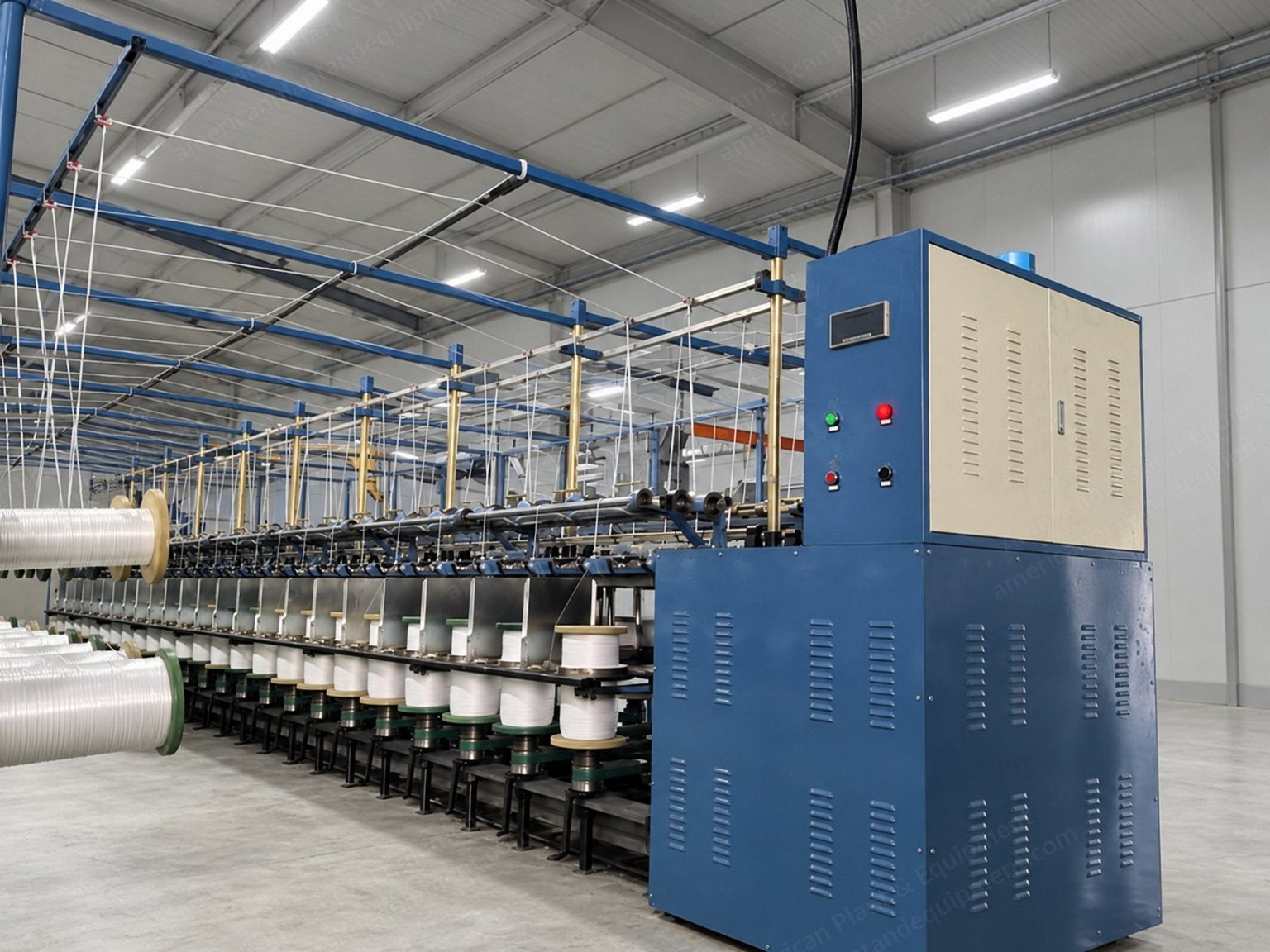

NovaStar, WN377, Heavy Ring Twister, 8 Inch Rings, 48 Spindles (New)

NovaStar, WN377, Heavy Ring Twister, 8 Inch Rings, 48 Spindles

Description

  1. Overview
    1. New heavy ring twister for twisting rope yarns and strands
    2. Double sided machine, Z or S twist
  2. Specifications
    1. Number of spindles: 48
    2. Spindle speed: 1,500 to 2,400 RPM
    3. Spindle gauge (spindle to spindle distance): 280 mm (11.0 in)
    4. Ring diameter x height: 204 mm x 38.1 mm (8.0 in x 1.5 in)
    5. Spindle diameter: 22 mm (0.87 in)
    6. Ring rail lift: 0 to 300 mm (0 to 11.8 in)
    7. Bottom roller diameter: 61 mm (2.4 in)
    8. Twist range: 36 to 404
    9. Operation: double sided
    10. Twist direction: Z or S
  3. Included Spare Parts
    1. Belts: 4
    2. Yarn guide hooks: 20
    3. Tension springs: 10
    4. Twist change gears: 1 complete set
    5. Brake pads: 2
    6. Spindle belt tension wheels: 2
    7. Rubber sleeves: 2
  4. Options
    1. Straight nylon bobbins, available on request
  5. Lead Time
    1. 30 days after order
