NovaStar, MS564, Vacuum Glass Laminating Oven, New, 2,800 x 6,000 mm (110 x 236 in) Glass Size, 2 Layers, 90 kW (New)

Overview

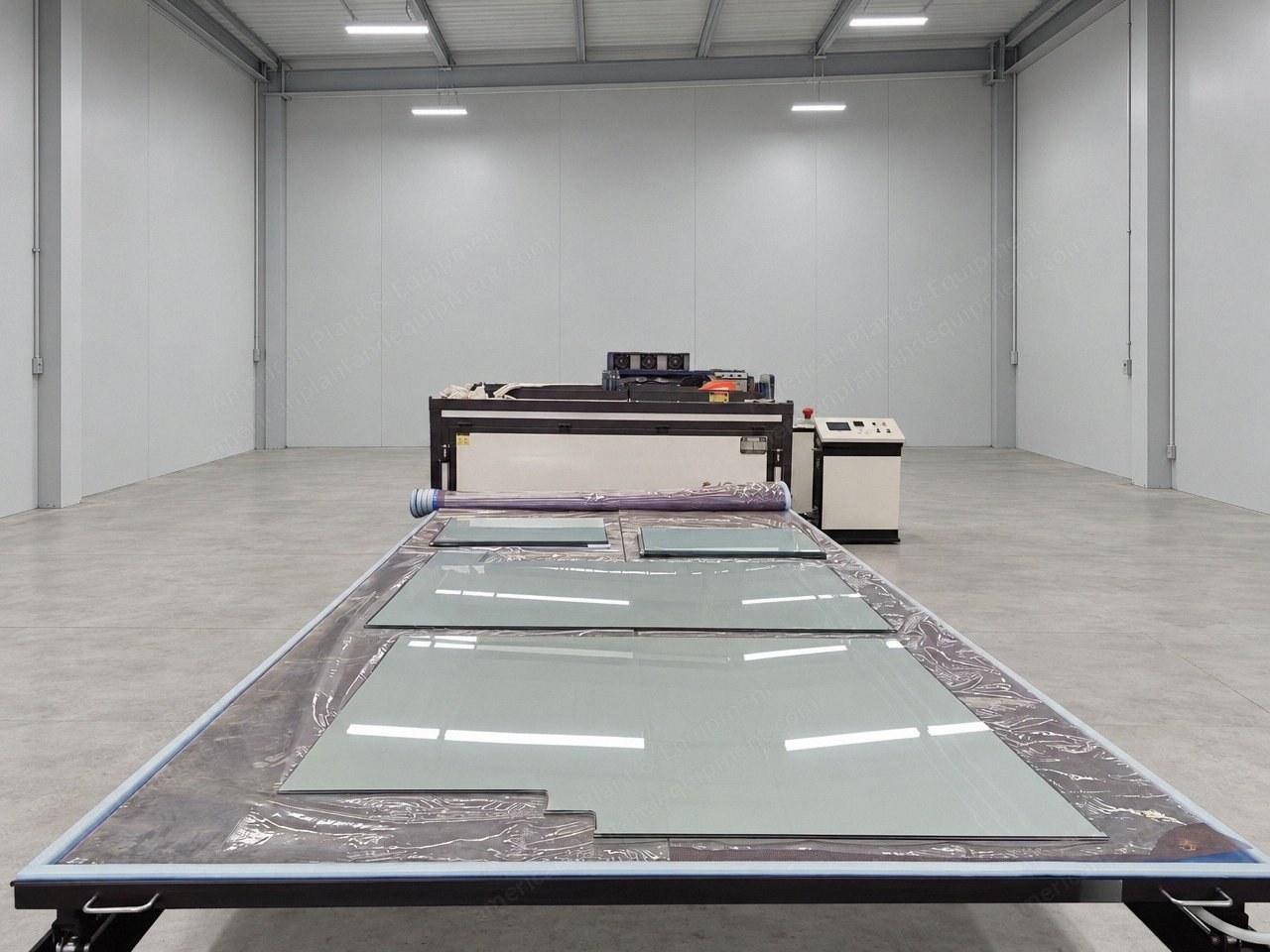

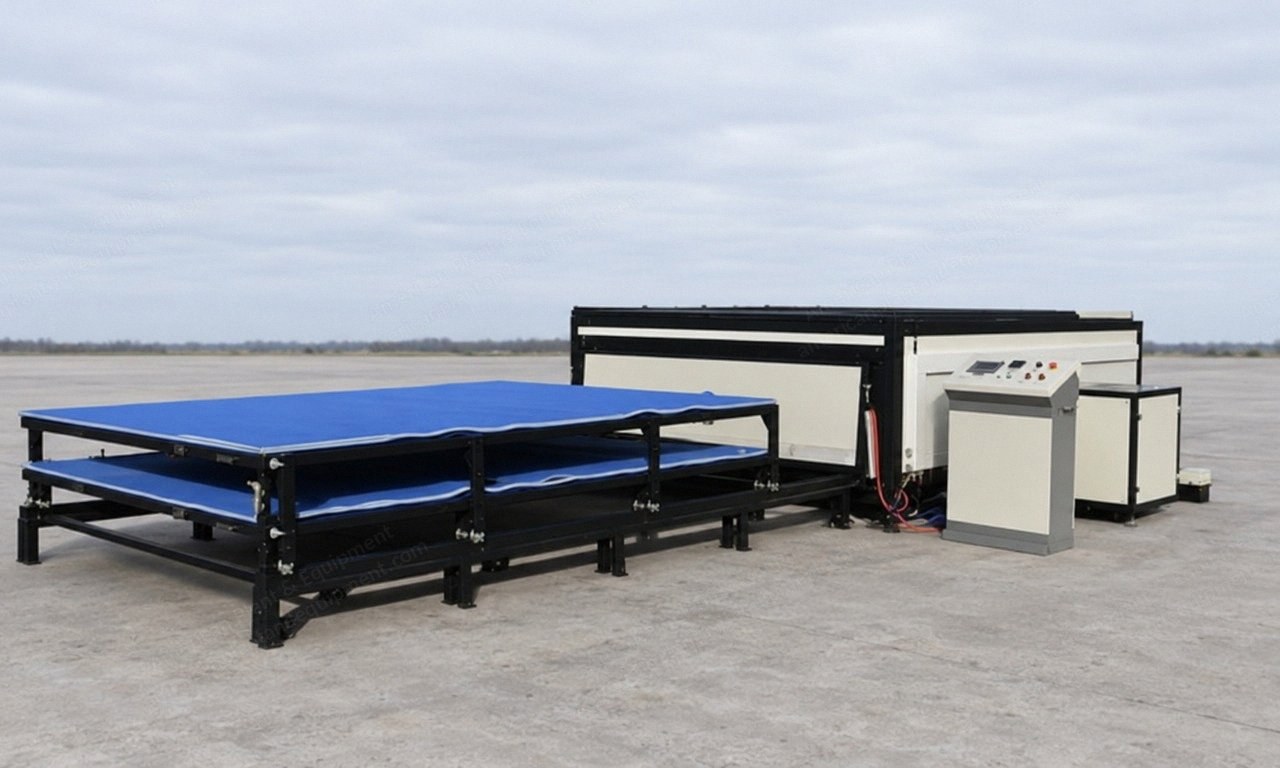

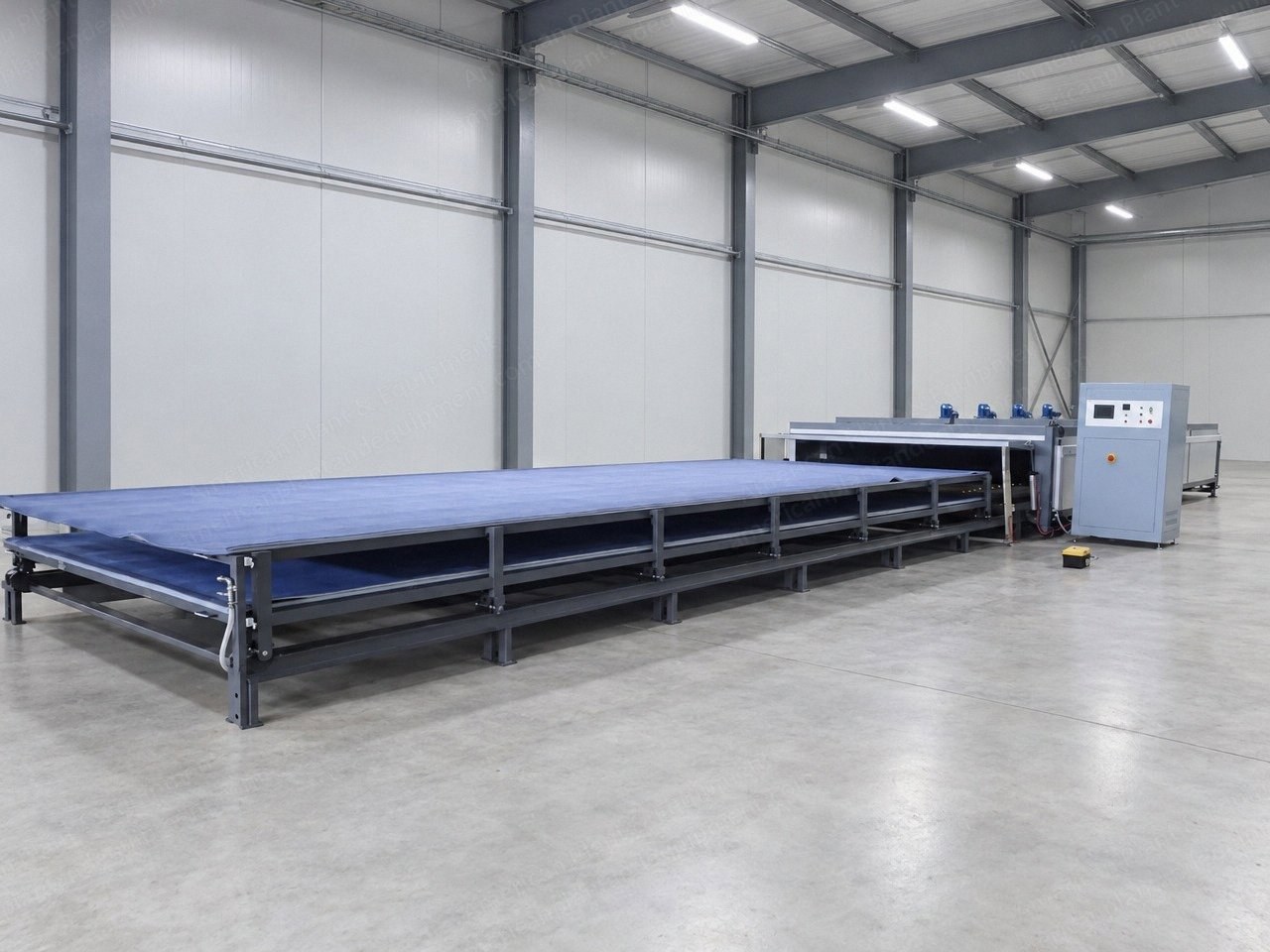

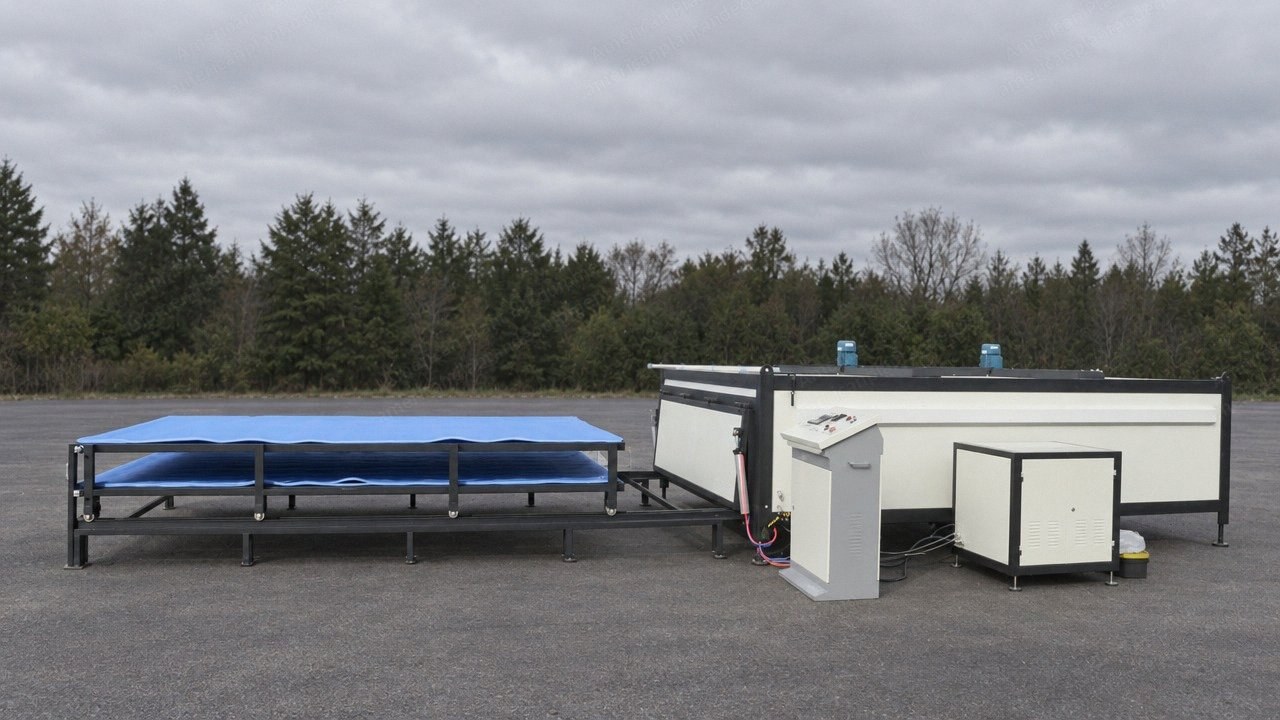

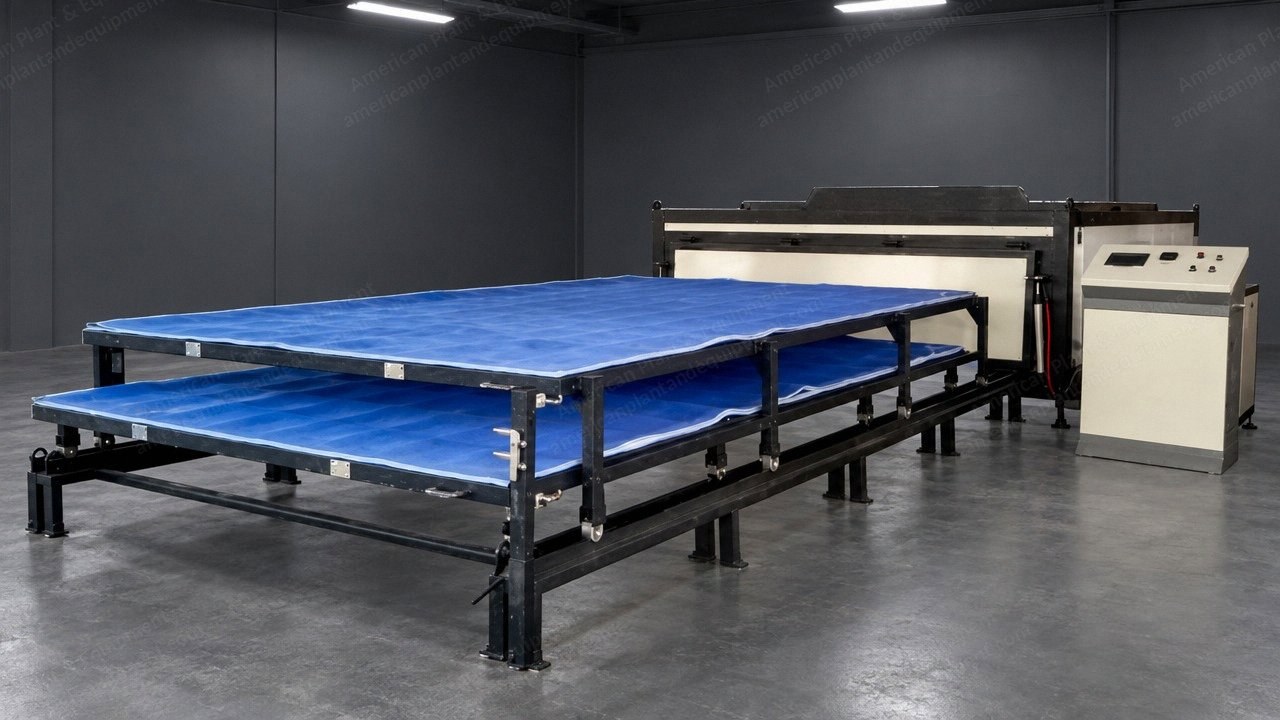

1. New vacuum glass laminating oven with 2 working layers, for laminated safety glass.

2. Maximum glass size: 2,800 x 6,000 mm (110 x 236 in) per layer.

3. Production capacity: about 100 m² (1,076 sq ft) in about 3 hours.

4. Voltage and frequency are built to the buyer's requirement.

Specifications

1. Total power: 90 kW

2. Net weight: 3,500 kg (7,716 lb)

3. Outside dimensions: 3,700 x 6,400 x 1,050 mm (146 x 252 x 41 in)

4. Floor space: 4,000 x 13,300 mm (157 x 524 in)

Heating Furnace

1. Nickel-chrome stainless steel heating tubes

2. 50 mm (2 in) rock wool insulation board

3. 10 mm (0.4 in) angle steel frame

4. Two power regulators with temperature compensation and intelligent heating control

Control

1. PLC control system with vacuum control

2. Siemens 7 in touch screen

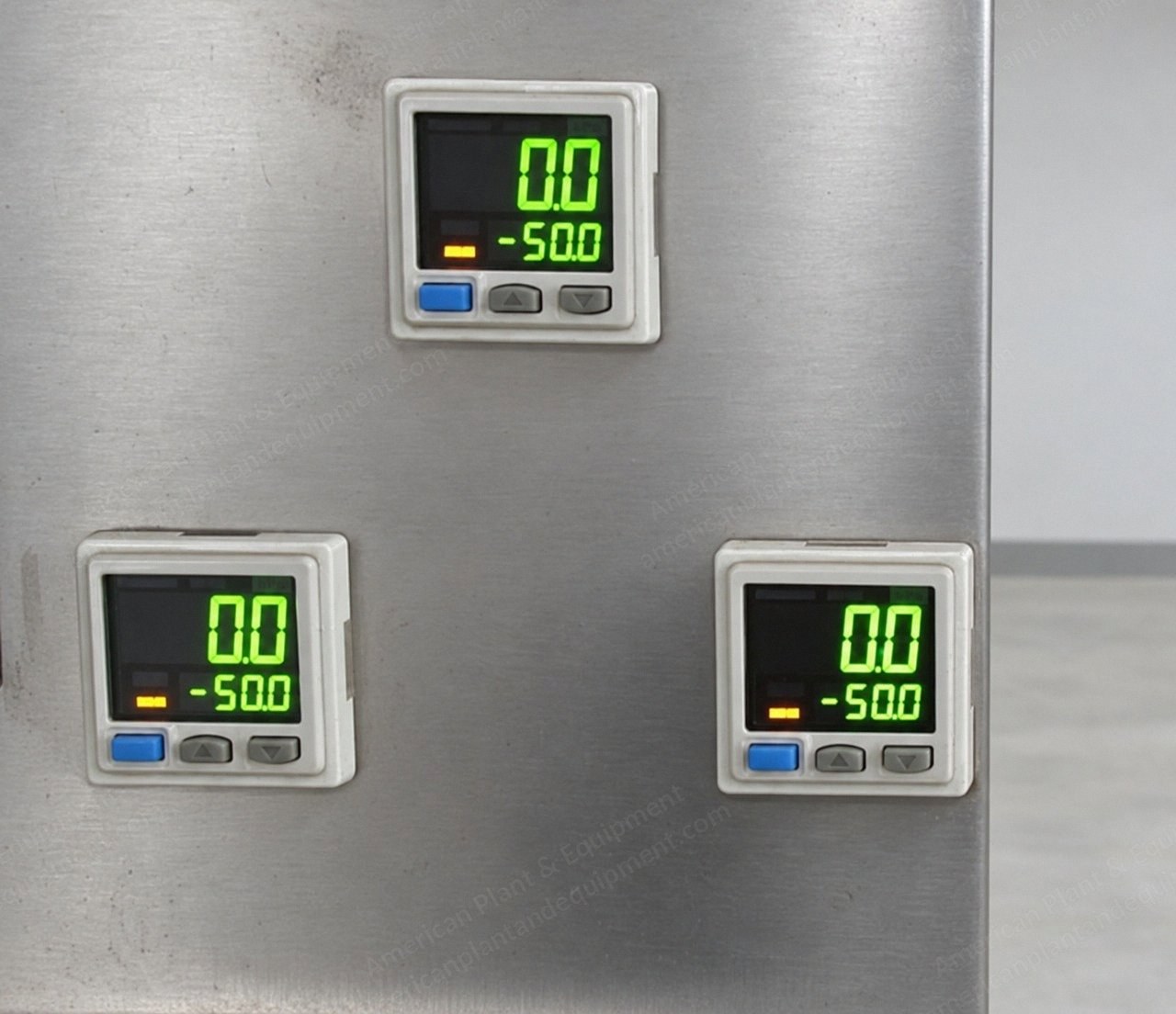

3. Panasonic digital vacuum meters and voltage meter

4. Multi-function alarm

Scope of Supply

1. 2 high-temperature trays with high-temperature-resistant wire mesh

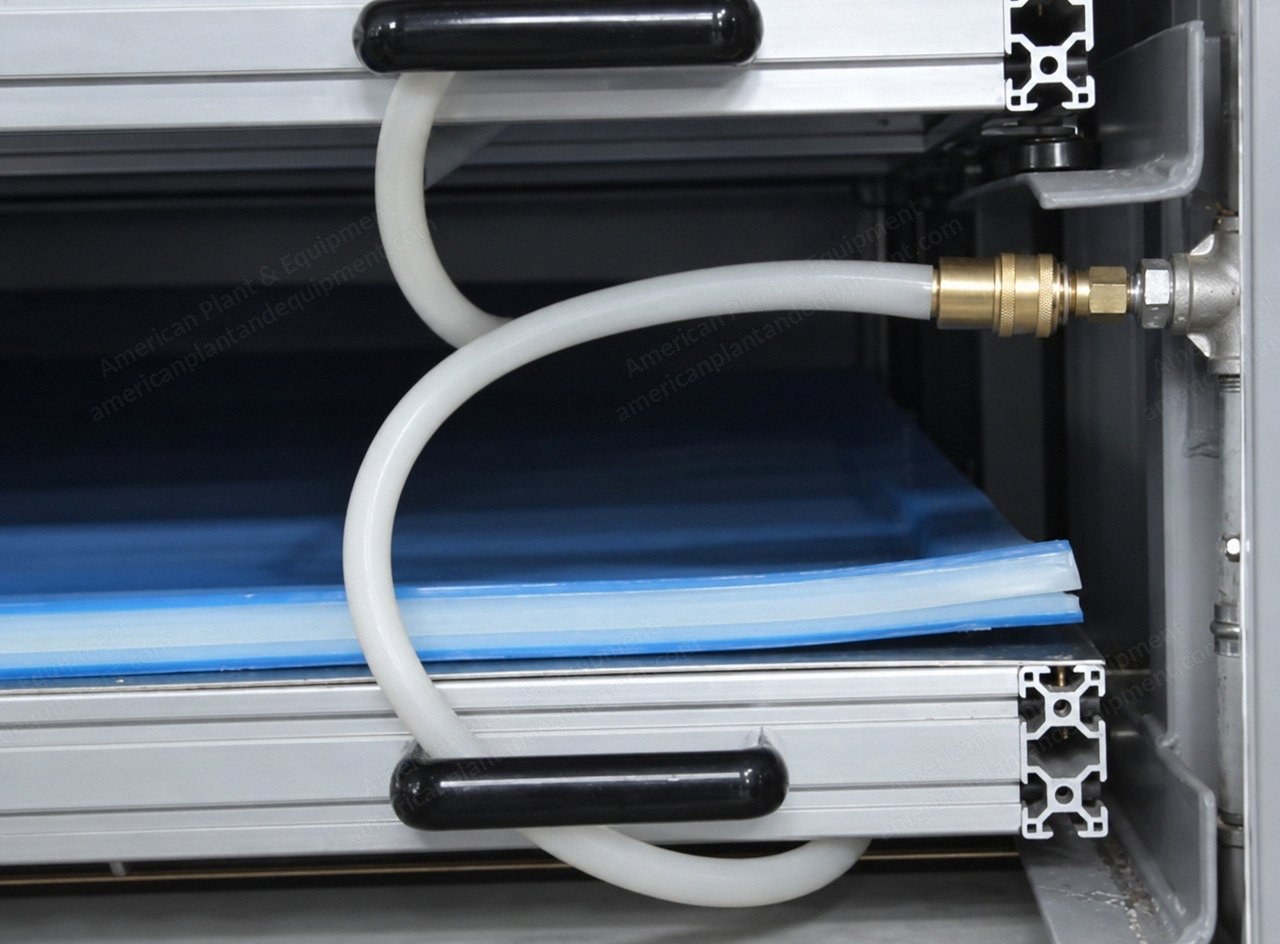

2. 2 vacuum silicone bags, high-temperature, high-sealing and tear-resistant

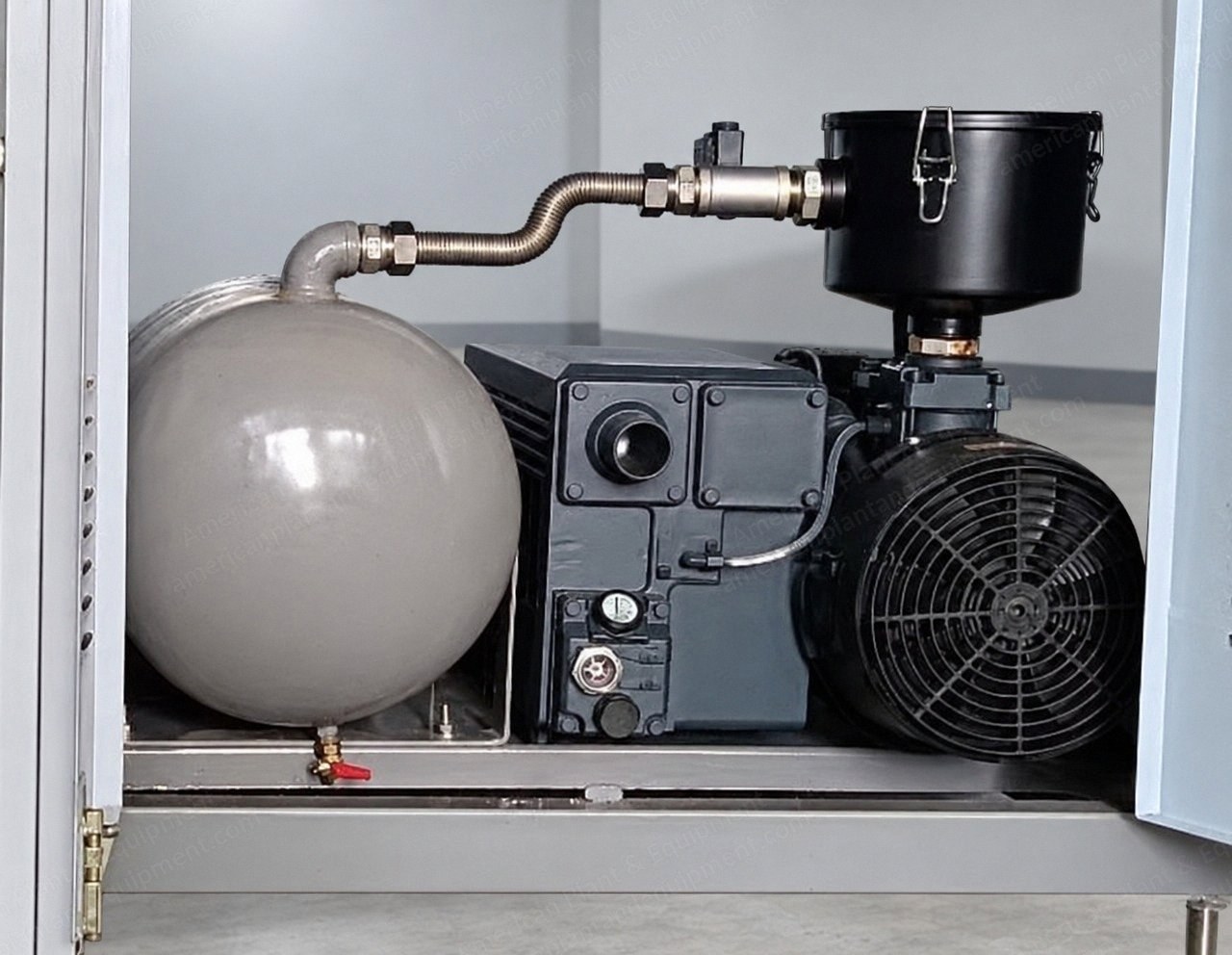

3. 1 vacuum pump and 1 vacuum buffer tank

4. 4 circulating air motors

5. 4 Teflon mesh sheets

6. 1 tool kit

Spare Parts Included

1. 2 machine keys and 1 L (0.26 gal) of vacuum pump oil

2. 1 heating tube

3. Silicone tube, silicone material and air hose

4. 1 quick coupling
