Shaoyang, SxxS, 2020, PP Spunbond Nonwoven Production Line, Single S Beam, 1,600 mm (63 in), about 2,000 t/year

Overview

1. Used PP spunbond nonwoven production line, built 2020, single S beam configuration (SxxS platform)

2. Web width: 1,600 mm (63 in); maximum 1,650 mm (65 in)

3. Capacity: about 2,000 t (2,205 short tons) per year

4. Fabric weight range: 15 to 100 g/m2

5. Polymer: polypropylene (PP)

6. Can be extended to SMMS or SSMMS with additional beams; the platform and infrastructure are prepared for them

Condition

1. About 2,800 running hours

2. Under power and stopped

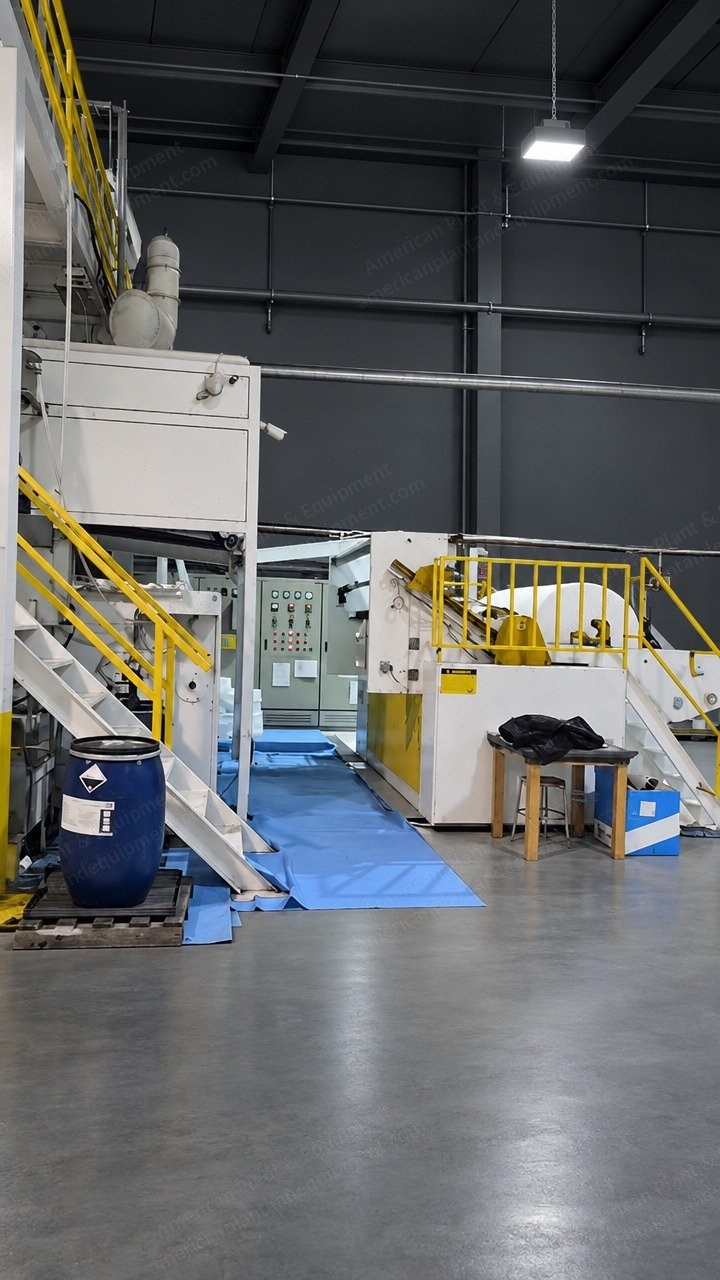

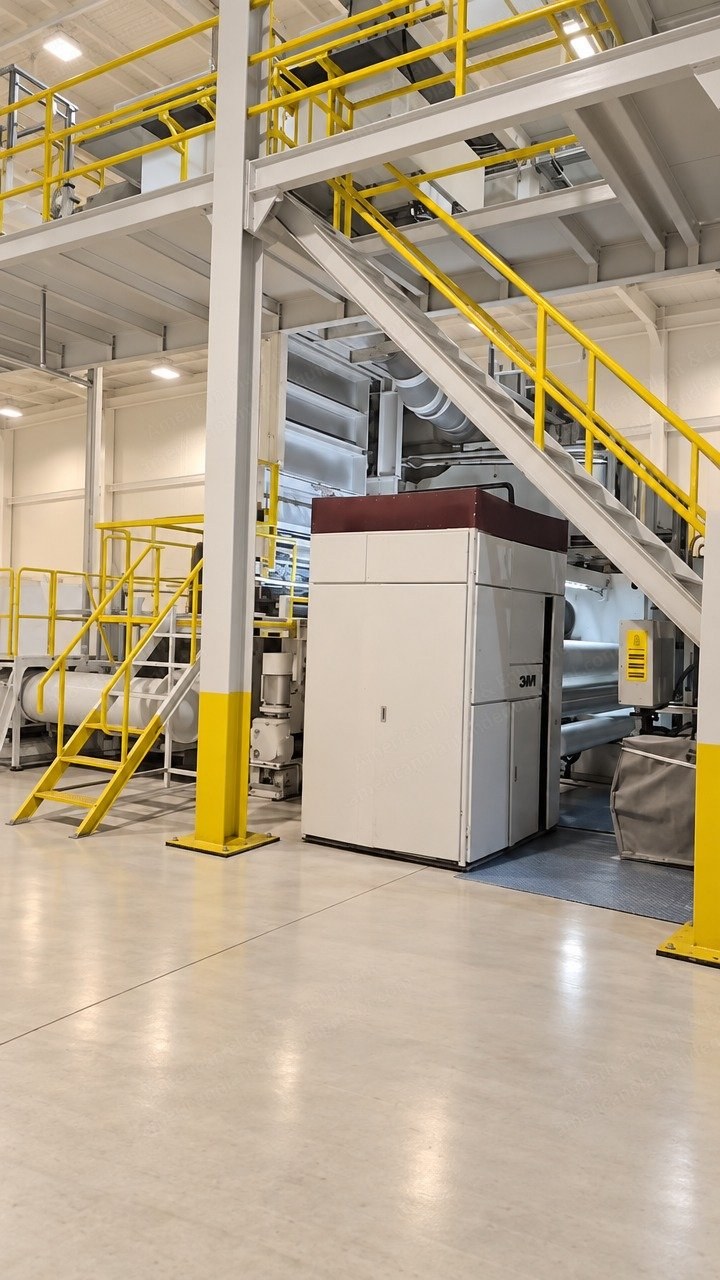

Line Configuration

1. Twin-screw extruder

2. Spunbond beam with Enka Tecnica spinnerets

3. Inline hydrophilic treatment unit

4. Calender, maximum speed 150 m/min (492 ft/min)

5. Winder, maximum speed 300 m/min (984 ft/min)

Included

1. Enka Tecnica spinnerets

2. Chiller, thermal oil heaters and heating oven

3. Electrical cables

4. Associated spare parts

Scope of Supply

1. Dismantling and loading are not included
