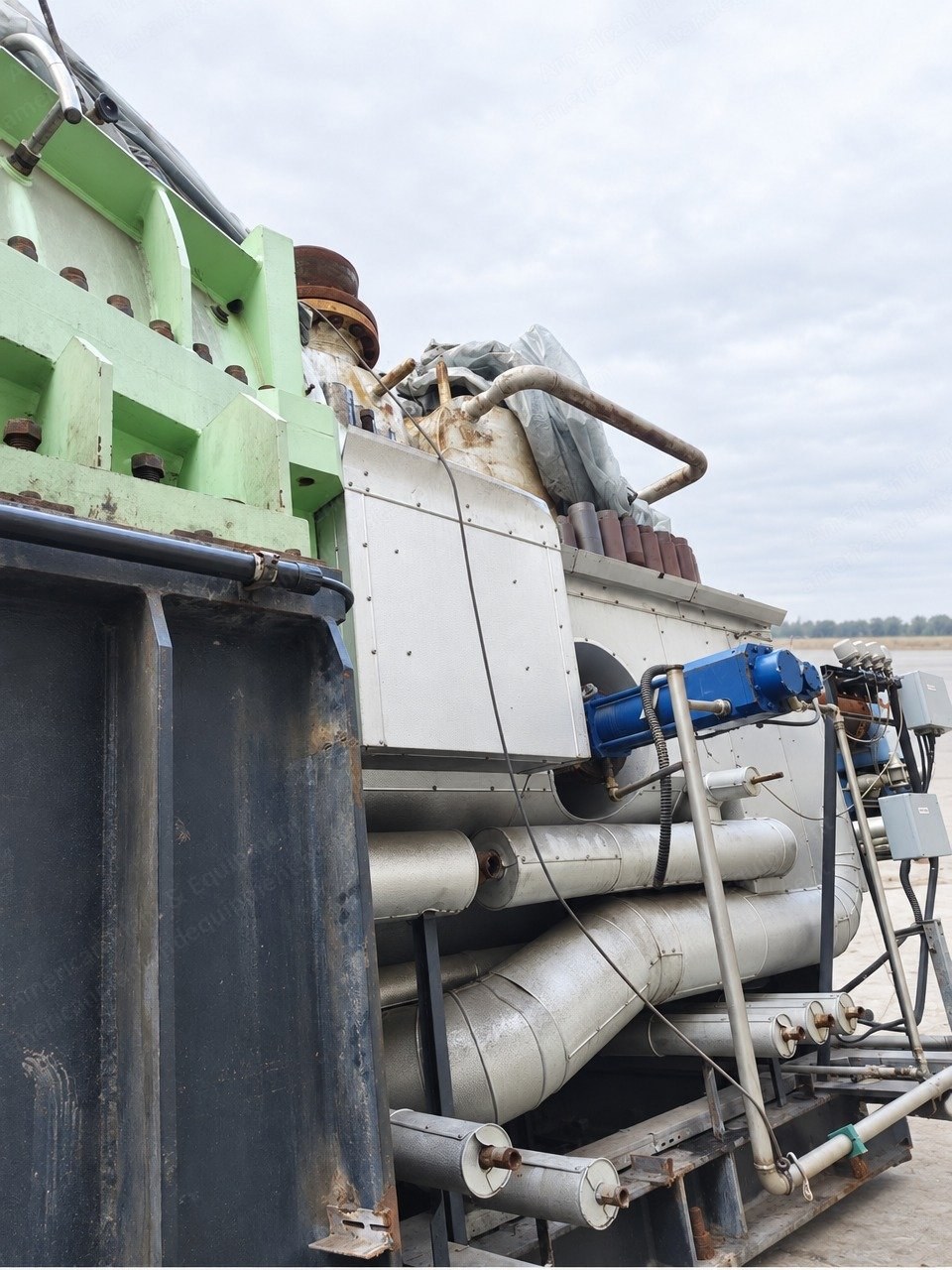

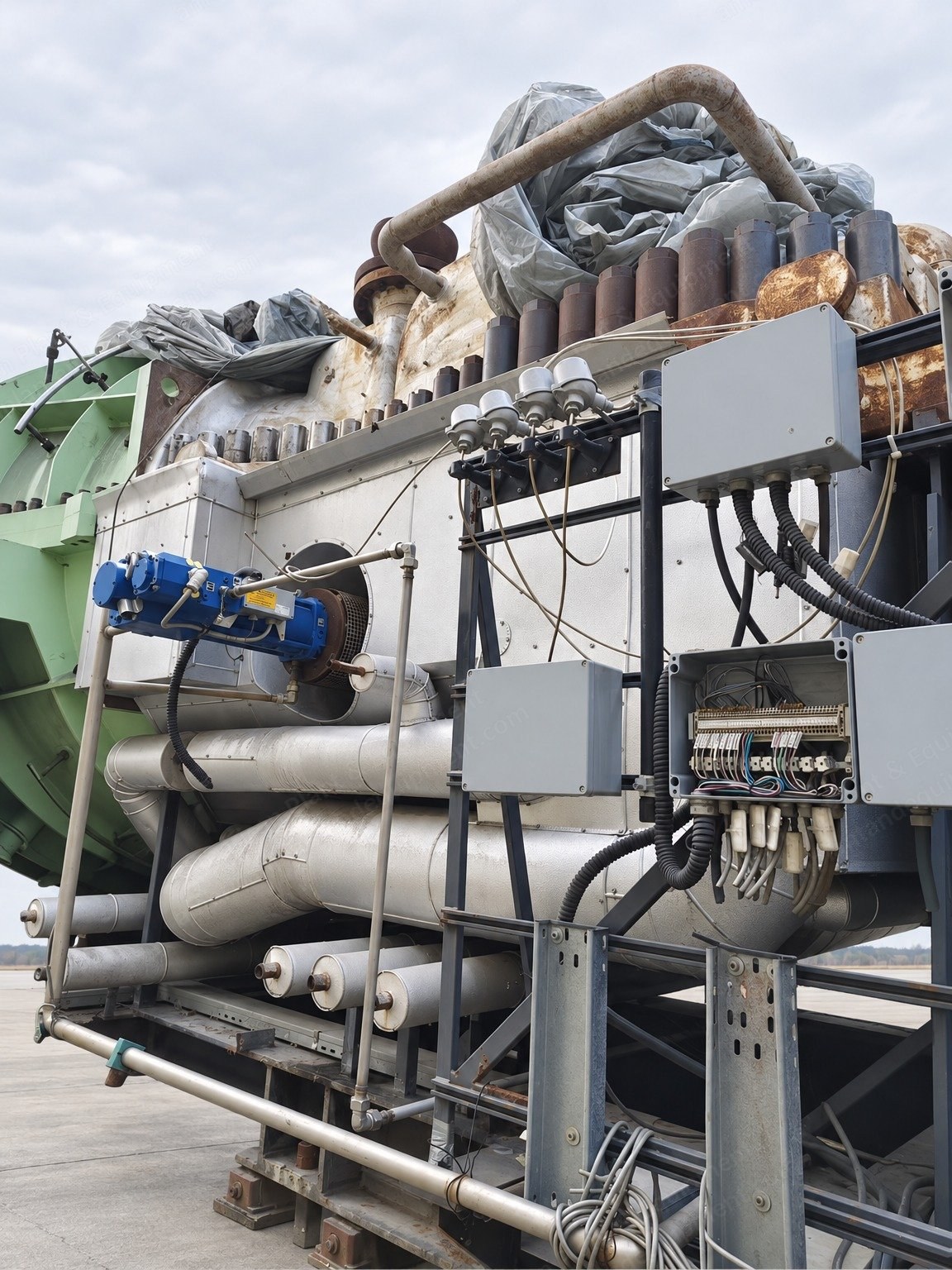

Siemens, SST-400, 2011, Steam Turbine Generator Set, 30 MW, 50 Hz, 10,500 V, Flender Gearbox

Siemens, SST-400, 2011, Steam Turbine Generator Set, 30 MW, 50 Hz, 10,500 V, Flender Gearbox

Description

  1. Overview
    1. Siemens SST-400 steam turbine generator set, built 2011, used
    2. 30 MW, 50 Hz, 10,500 V
  2. Generator
    1. Siemens SGen5-100A-4P generator, 2011
    2. Rated power 38,000 kVA, 10,500 V, 50 Hz, 1,500 rpm, 3 phase
    3. Air cooling, insulation class F
    4. Main exciter ELR 75/11-15/16-2, self excitation
  3. Gearbox
    1. Flender Graffenstaden TX80/3, 2011
    2. Rated power 32,435 kW, input/output 5,038 / 1,500 rpm
    3. Service factor 1.3 (AGMA 421.06), oil ISO VG46
