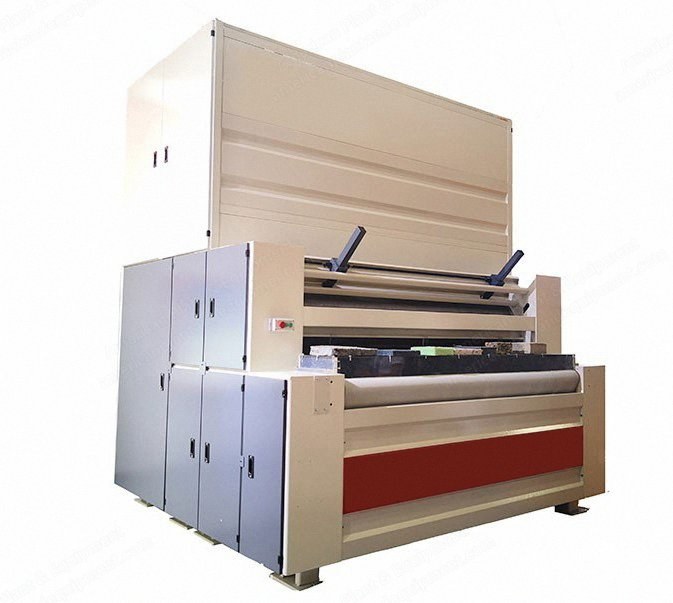

NovaStar Airlay Machine, 2500mm Working Width, 800-1000 kg/h Capacity, 35.82 kW

NovaStar Airlay Machine, 2500mm Working Width, 800-1000 kg/h Capacity, 35.82 kW

Description

  1. Overview
    1. Airlay Machine
    2. Working width: 2500 mm
    3. Opening drum diameter: 600 mm
    4. Feeding roller diameter: 115 mm
    5. Capacity: 800 to 1000 kg per hour
    6. Weight: 7000 kg
    7. Installed power: 35.82 kW
    8. Application: to web the fibers and supply next process
  2. Motor Information
    1. Brand: Siemens-Beide
    2. Main opening drum: 11 kW x 1
    3. Feeding lattice, output lattice: 2.2 kW x 2
    4. Dust cage, dust cage lifting: 0.55 kW x 1 + 0.37 kW x 1
    5. Blower fan: 1.5 kW x 3
    6. Suction fan: 7.5 kW x 2
  3. Construction and Components
    1. Conveyor: feeding lattice (PVC lattice)
    2. Opening drum: aluminum boards with nails
    3. Output lattice: nylon net and output net rollers
    4. Output roller: height adjustable to control thickness of output material
    5. Machine frame constructed from aluminum alloy and stainless steel
    6. Closed body environment (no fibers in the air)
  4. Electrical and Customization
    1. Voltage and power: customized as per customer
  5. Condition and Maintenance
    1. Operation safety implements available, please inquire
    2. Requires periodic maintenance, regular cleaning (air spray on lattice and rollers) and lubrication and greasing on the bearings
