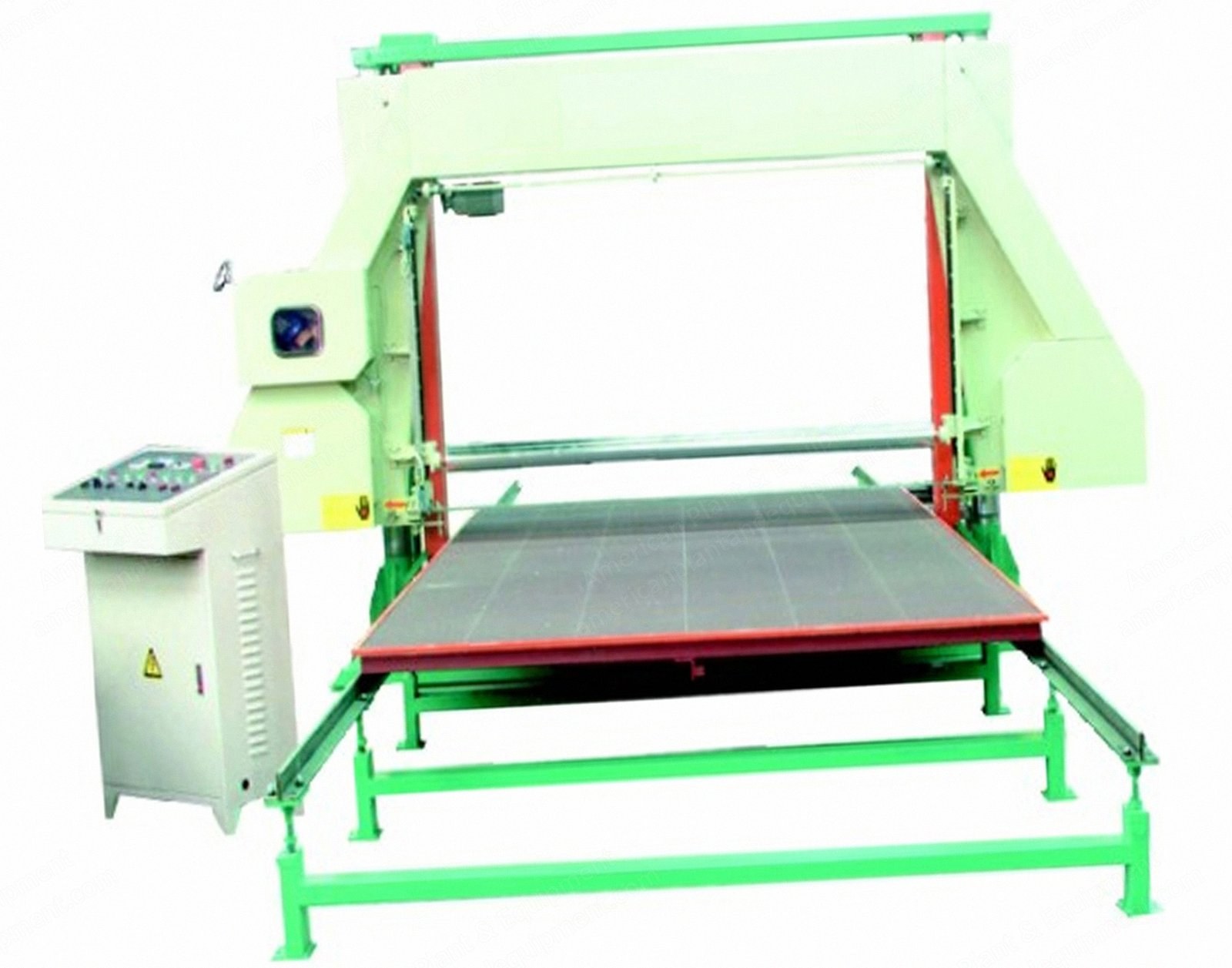

NovaStar, Horizontal Foam Cutting Machine, Q-1650/2150, 1650-2150mm cutting width, 1200mm cutting height, 0-25m/min cutting speed

NovaStar, Horizontal Foam Cutting Machine, Q-1650/2150, 1650-2150mm cutting width, 1200mm cutting height, 0-25m/min cutting speed

Description

  1. Overview
    1. Horizontal foam cutting machine used to cut blocks of foam into thin slices.
    2. Cutting thickness range: 2 to 200 mm.
    3. Cutting density: less than 80 kg/m³.
    4. Cutting speed: 0 to 25 m/min.
    5. Cutting angle adjustable from -5° to +5°.
    6. Equipped with a pressure roller and suction fan to prevent foam from sliding during cutting.
    7. Machine operates with automatic belt-driven reciprocating knife.
    8. Includes user manual and catalogue with detailed chapters on operation, maintenance, and electrical diagrams.
  2. Specifications
    1. Model: Q-1650 or PQ-2150 horizontal cutting machine.
    2. Cutting size for Q-1650: W 1650 x L 2000 mm.
    3. Cutting size for PQ-2150: W 2150 x L 3000 mm.
    4. Cutting height: H 1200 mm for both models.
    5. Blade size for Q-1650: 8500 x 30 x 0.45 mm.
    6. Blade size for PQ-2150: 9480 x 30 x 0.45 mm.
    7. Cutting thickness: 2.5 to 200 mm.
    8. Total power: 8.32 kW plus vacuum 3.6 kW.
    9. Machine weight for Q-1650: 2000 kg.
    10. Machine weight for PQ-2150: 2200 kg.
    11. Machine dimensions for Q-1650: L 5800 x W 3500 x H 2400 mm.
    12. Machine dimensions for PQ-2150: L 7800 x W 4200 x H 2400 mm.
  3. Motor List
    1. Motor 1: Model BMA90L4-B5, 1.5 kW with brake, 1720 rpm, used for frame up and down.
    2. Motor 2: Model Y112M-4, 4 kW, 1420 rpm, used for blade drive.
    3. Motor 3: Model Y100L1-4, 2.2 kW, 1420 rpm, used for worktable movement.
    4. Motor 4: Model YS5622-B3, 120 W, 2800 rpm, two units used for grinding wheel.
    5. Motor 5: Model 150FCJ3, 180 W, 1440 rpm, used for dust motor (grinding wheel dust collection).
    6. Motor 6: Model POF-B-4.0, 1.8 kW, 1440 rpm, two units used for vacuum motor.
    7. Motor 7: Model CU18-1/4-1/10, 200 W, 1440 rpm, used for press roller.

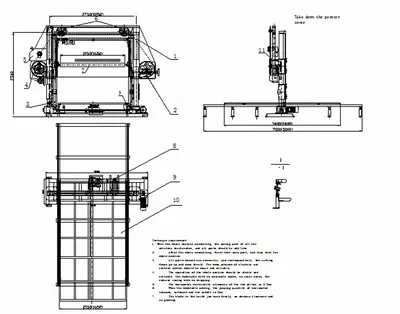

  4. Machine Components
    1. Blade frame.
    2. Tension wheel system.

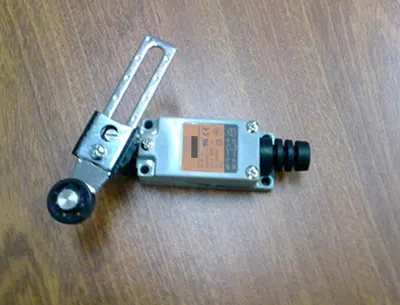

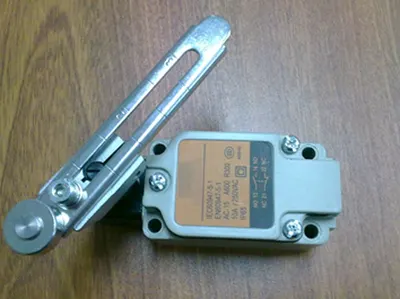

    3. Limit switch system.

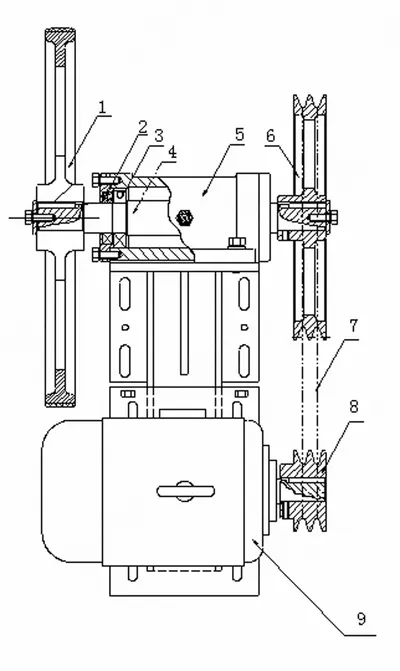

    4. Drive wheel system.
    5. Grinding wheel system.
    6. Passive wheel system.
    7. Press roller drive.
    8. Worktable transmission drive.
    9. Up and down system.
    10. Worktable.
    11. Angle adjusting equipment.
  5. Condition and Notes
    1. Machine requires correct wiring size and consideration of voltage drop due to cable length during installation.
    2. Blade replacement must be done with total power supply turned off; operator must wear thick gloves.
    3. Only trained personnel should operate the machine.
    4. Machine should only be used to cut foam; non-operators must stay clear during operation.
    5. Regular maintenance required: bearings and limit switches must be checked periodically.
    6. Incorrect installation or use may cause part damage or shorten machine life.
  6. Included Documentation
    1. User manual covering machine overview, operation instructions, maintenance, fault diagnosis, and safety precautions.

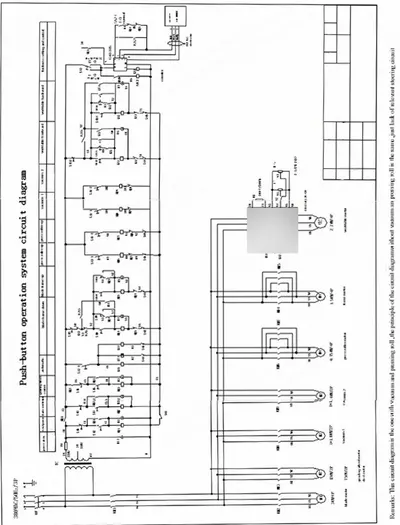

    2. Catalogue with chapters on machine appearance, parts, operating instructions, maintenance, and electrical circuit diagrams.

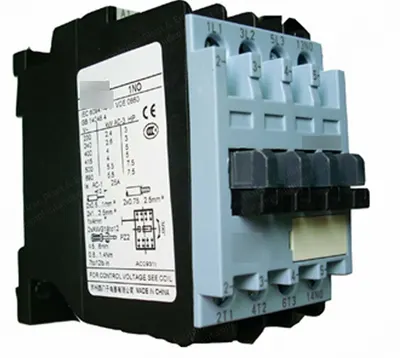

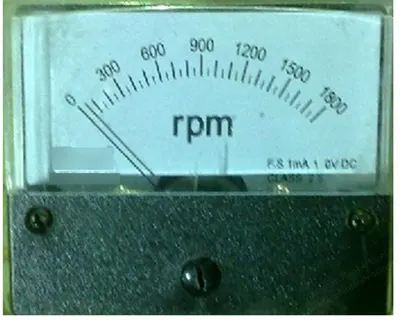

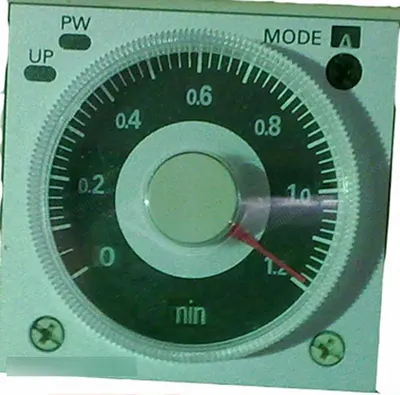

    3. Electrical circuit diagram and common electric components list.
    4. Transducer parameter list.
    5. ELCO counter parameter setting list.
    6. LIN SEIKI counter parameter setting list.
