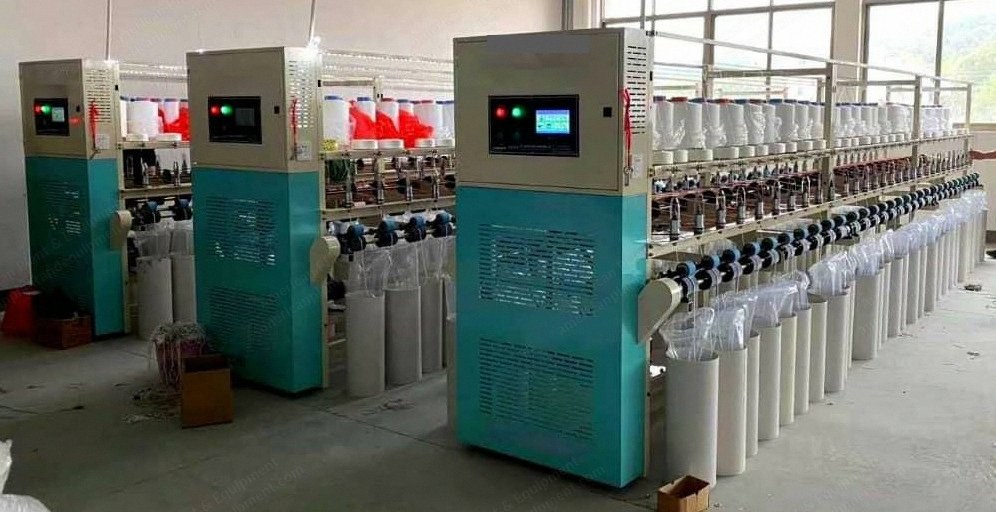

NovaStar, High-Speed Elastic Tapes Making Machine, 3mm Width, 60 Spindle, 130 kg/24h Capacity (New)

NovaStar, High-Speed Elastic Tapes Making Machine, 3mm Width, 60 Spindle, 130 kg/24h Capacity

Description

  1. Overview
    1. Needle no: 12 n
    2. Tape shape: flat
    3. Width: 3 mm
    4. Material: nylon 100d + spandex 105d
    5. Type: two sides and one layer
  2. Specifications
    1. Capacity: 130 kg per 24 hour
    2. Overall dimension: l: 6780 mm x w: 1110 mm x l: 1700 mm
    3. Each section length: 2200 mm
    4. Section no: 3 section
    5. Spindle no: 60 spindle
    6. Each section spindle no: 20 spindle per section
    7. Spindle gauge: 3000 rpm (max)
    8. Main motor: (2 motor) 2.2 + 0.5 kw
    9. Voltage: 220 v, 60 hz, 3 phase
    10. With heater pipe
