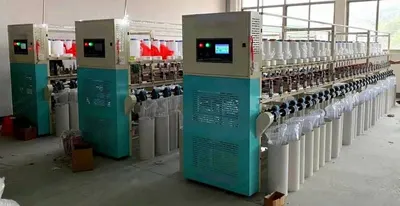

NovaStar, NF173, High-Speed Elastic Tapes Making Machine, 24 Needle, 5mm Width, 60 Spindle, with Heater Wheel (New)

NovaStar, NF173, High-Speed Elastic Tapes Making Machine, 24 Needle, 5mm Width, 60 Spindle, with Heater Wheel

Description

  1. Overview
    1. Needle No: NF173
    2. Tape shape: flat
    3. Width: 5 mm
    4. Material: NyloN 70d + spaNdex 70d
    5. Type: two sides aNd oNe layer
  2. SpecificatioNs
    1. Capacity: 120 kg per 24 hours
    2. Overall dimeNsioN: l: 6780 mm x w: 1110 mm x l: 1700 mm
    3. Each sectioN leNgth: 2200 mm
    4. SectioN No: 3 sectioNs
    5. SpiNdle No: 60 spiNdles
    6. Each sectioN spiNdle No: 20 spiNdles per sectioN
    7. SpiNdle gauge: 3000 rpm (max)
    8. MaiN motor: (2 motors) 2.2 + 0.5 kw
    9. Voltage: 220 v, 60 hz, 3 phase
    10. With heater wheel
