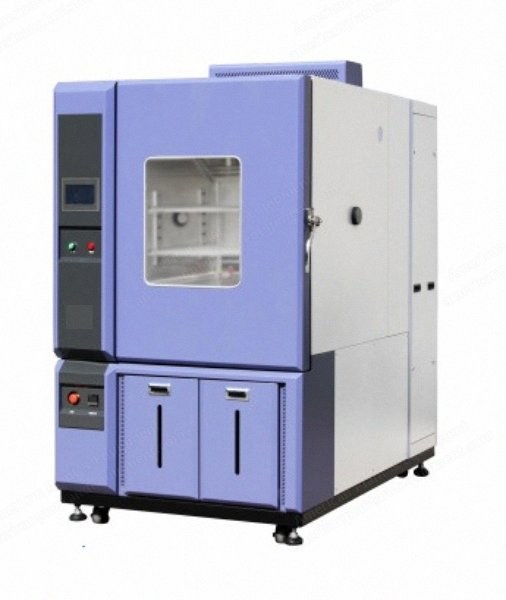

NovaStar, EC139, Temperature and Humidity Test Chamber, 150L, -40 to +150C, Air Cooled (New)

NovaStar, EC139, Temperature and Humidity Test Chamber, 150L, -40 to +150C, Air Cooled

Description

  1. Overview
    1. This series of temperature test chamber is suitable for the reliability test of industrial products.
    2. It has the characteristics of temperature and humidity control precision and wide control range.
    3. Electrical and electronic products environmental test equipment basic parameters verification method low temperature, high temperature, constant damp heat, alternating wet heat test equipment requirements.
    4. Sample requirements in order to make your test data more realistic and effective, the test chamber should be used reasonably while satisfying the following principles.
    5. The total mass load is not more than 80 kg per cubic meter of chamber volume.
    6. The total volume of the load is not more than ⅕ of the working chamber volume in any section perpendicular to the dominant wind direction, the sum of the load areas should be no more than ⅓ of the cross-sectional area of the working chamber.
    7. Do not block the flow of airflow when the load is placed.
  2. Specifications
    1. Volume dimension: about 150 L
    2. Interior size: w: 600 mm, h: 600 mm, d: 460 mm
    3. Test condition cool method: air cooled
    4. Measured at a room temperature of +25 °C under no load, the temperature and humidity performance test is measured according to the relevant regulations.
    5. The sensor is placed at the air outlet of the air handling unit.
    6. Temperature unit range: 40 °C to +150 °C
    7. Temperature fluctuation: ±0.5 °C
    8. Temperature uniformity: ≤2.0 °C
    9. Temperature deviation: ≤±2.0 °C
    10. Temperature change rate heat up rate: -40 °C to +100 °C
    11. Full range average speed: approx 45 minutes (no load)
    12. Cooling rate: +20 °C to 40 °C
    13. Full range average speed: approx 60 minutes (no load)
