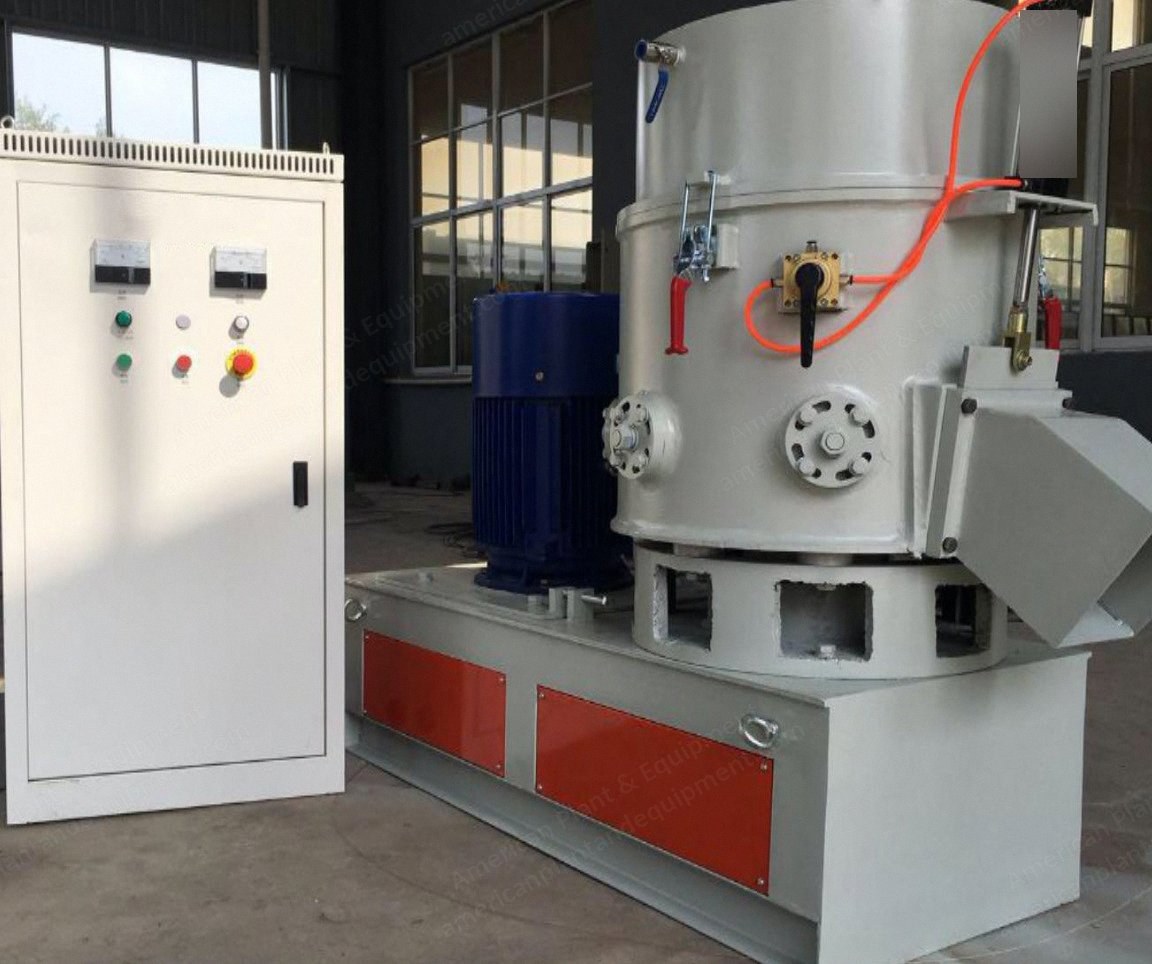

NovaStar, SG262, Agglomerator, 300L Drum, 75kW, 200-220 kg/h Capacity (New)

NovaStar, SG262, Agglomerator, 300L Drum, 75kW, 200-220 kg/h Capacity

Description

  1. Overview
    1. Motor power: 75 kW
    2. Total volume of drum: 300 L
    3. Effective volume: 225 L
    4. Rotating speed: 850 rpm (will be designed as per different material)
    5. Capacity: 200~220 kg/h for PE PVC labels
    6. Machine weight: 1500~1800 kg
    7. Machine dimension: 2000 x 850 x 1600 mm
  2. Knives

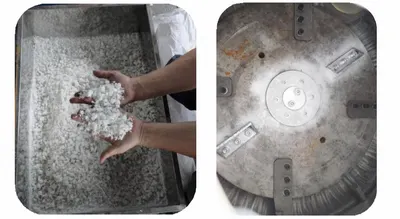

    1. Quantity of rotary knives: 2 pieces
    2. Quantity of fixed knives: 8 pieces
  3. Operation and Discharge
    1. Bearing lubricating type: Yellow oil
    2. Material discharge way: By pneumatic
  4. Included
    1. Control cabinet: 1 set
    2. Free spare parts: Fixed knife 2 pcs, belt 2 pcs
  5. Specifications
    1. Voltage: 480V, 60Hz, 3P
