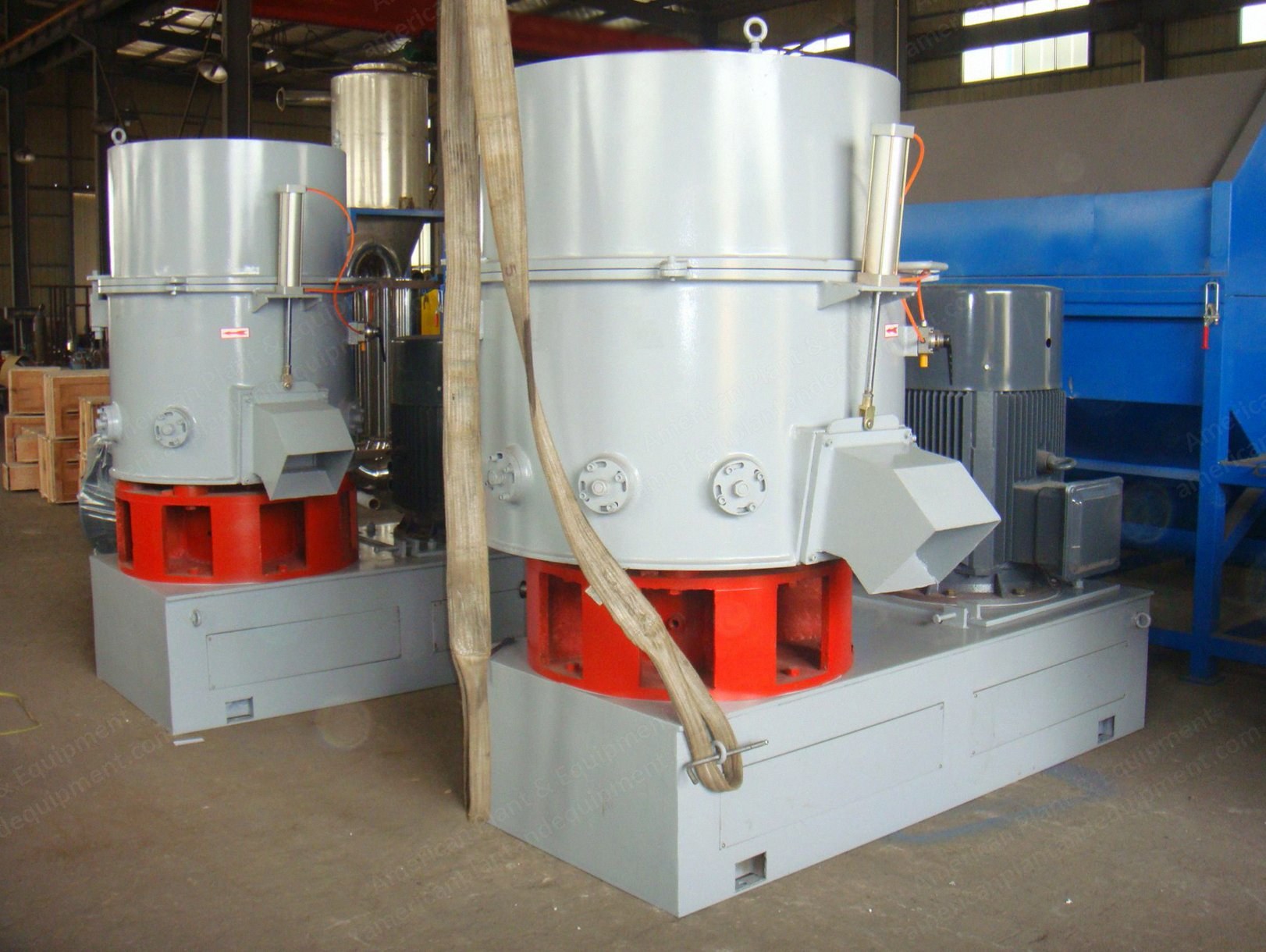

NovaStar, SG265, Plastic Film Agglomerator, SG265 Volume, 200 to 300kg/h Capacity (New)

NovaStar, SG265, Plastic Film Agglomerator, SG265 Volume, 200 to 300kg/h Capacity

Description

  1. Overview
    1. Applied material: film, woven bag, plastic bag, fibre, etc.
    2. Paint: waterproof paint.
    3. Input material: film, woven bag, plastic bag, fibre, etc.
    4. Output material: reprocessed material.
  2. Specifications - Model Ape-50
    1. Capacity: 200 to 300 kg/h.
    2. Total volume: 500 L; effective volume: 375 L.
    3. Motor power: 90 kW; paddle rotating speed: 750 rpm.
    4. Softstarter included.

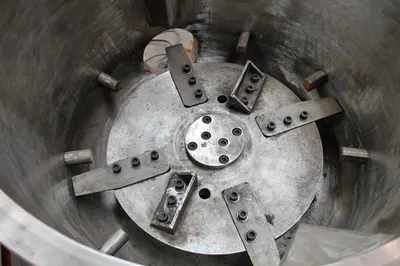

    5. Rotary blade: 7 pcs; fixed blade: 4 pcs.
    6. Heating method: self friction.
    7. Discharging way: pneumatic.
    8. Barrel and body are made of stainless steel.
    9. Electric control: contactor and electric elements from Schneider; control button from Delixi.
    10. External/lockable disconnection switch present.
    11. Emergency stop button at all major pieces of the equipment.
    12. Over-loading protective device of the motor is equipped.
    13. Fan positioned on top of the machine to take care of the vapor.
    14. Includes 1 set blades (fixed blades and rotated blades) for free.
  3. Specifications - Model Ape-80
    1. Capacity: 300 to 500 kg/h.
    2. Total volume: 800 L; effective volume: 675 L.
    3. Motor power: 132 kW; paddle rotating speed: 750 rpm.
    4. Rotary blade: 4 pcs; fixed blade: 11 pcs.
    5. Heating method: self friction.
    6. Discharging way: pneumatic.
    7. Barrel and body are made of stainless steel.
    8. Electric control: electric elements from Siemens; control button from Delixi.
    9. External/lockable disconnection switch present.
    10. Emergency stop button at all major pieces of the equipment.
    11. Over-loading protective device of the motor is equipped.
