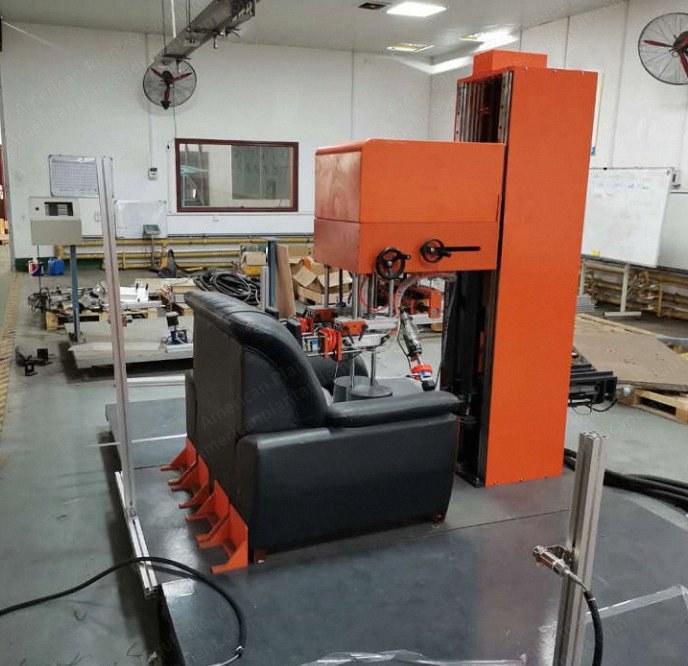

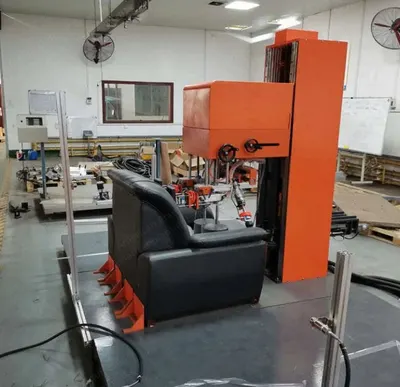

NovaStar, MC315, Couch Cushion Test Machine, 1520x2000x1650mm, 1350kg (New)

NovaStar, MC315, Couch Cushion Test Machine, 1520x2000x1650mm, 1350kg

Description

  1. Overview

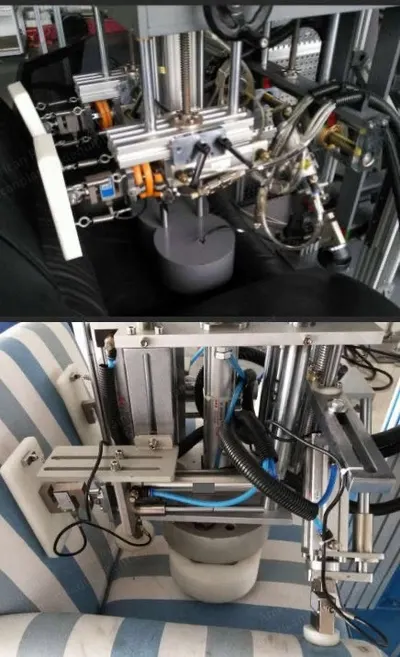

    1. The sofa tester simulates the condition that the surface of soft is loaded repeatedly in daily use to evaluate the compression capability of it.
    2. For upholstery products, to measure multiple pressure points on the sit, backrest and arm rest.
    3. The tester loads to the surface of soft using a fixed shape and weigh loading block.
    4. Backrest and armrest are loaded repeatedly with a certain height, frequency and power.
    5. To test the compression capability of soft when it is loaded repeatedly in a long-term.
  2. Specifications
    1. Control: PLC touch screen or PC software.
    2. Weigh of loading block: 50 ± 5 kg.
    3. Loading position: 350 mm before seat surface.
    4. Armrest loading block: Φ50 mm, edge of loading surface: R10 mm.
    5. Armrest loading position: 80 mm before armrest.
    6. Armrest loading direction: 45° according to horizontal direction.
    7. Armrest loading force: 250 N.
    8. Backrest loading block: 100 mm x 200 mm, edge of loading surface: R10 mm.
    9. Backrest loading position: the center of two loading parts’ distance is 300 mm, 450 mm height or it is the same level according to the backrest upward.
    10. Backrest loading force: 300 N.
    11. The way of loading: load alternately.
    12. Testing disc: Φ100 mm, edge of testing surface: R10 mm.
    13. Testing speed: 100 ± 20 mm/min.
    14. Weigh: loading surface Φ350 mm, edge: R3, weigh: 70 ± 0.5 kg.
    15. Lift way of testing group: motor drive screw to lift.
    16. Controller: touch screen to display.
    17. Frequency of testing: 0.33 ~ 0.42 Hz (20 ~ 25 times/min).
    18. Air supply: 7 kgf/cm² or more stable air supply.
    19. Size (host): 1520 x 2000 x 1650 mm.
    20. Weigh: 1350 kg.
    21. Power: three-phase four-wire 480 V.
