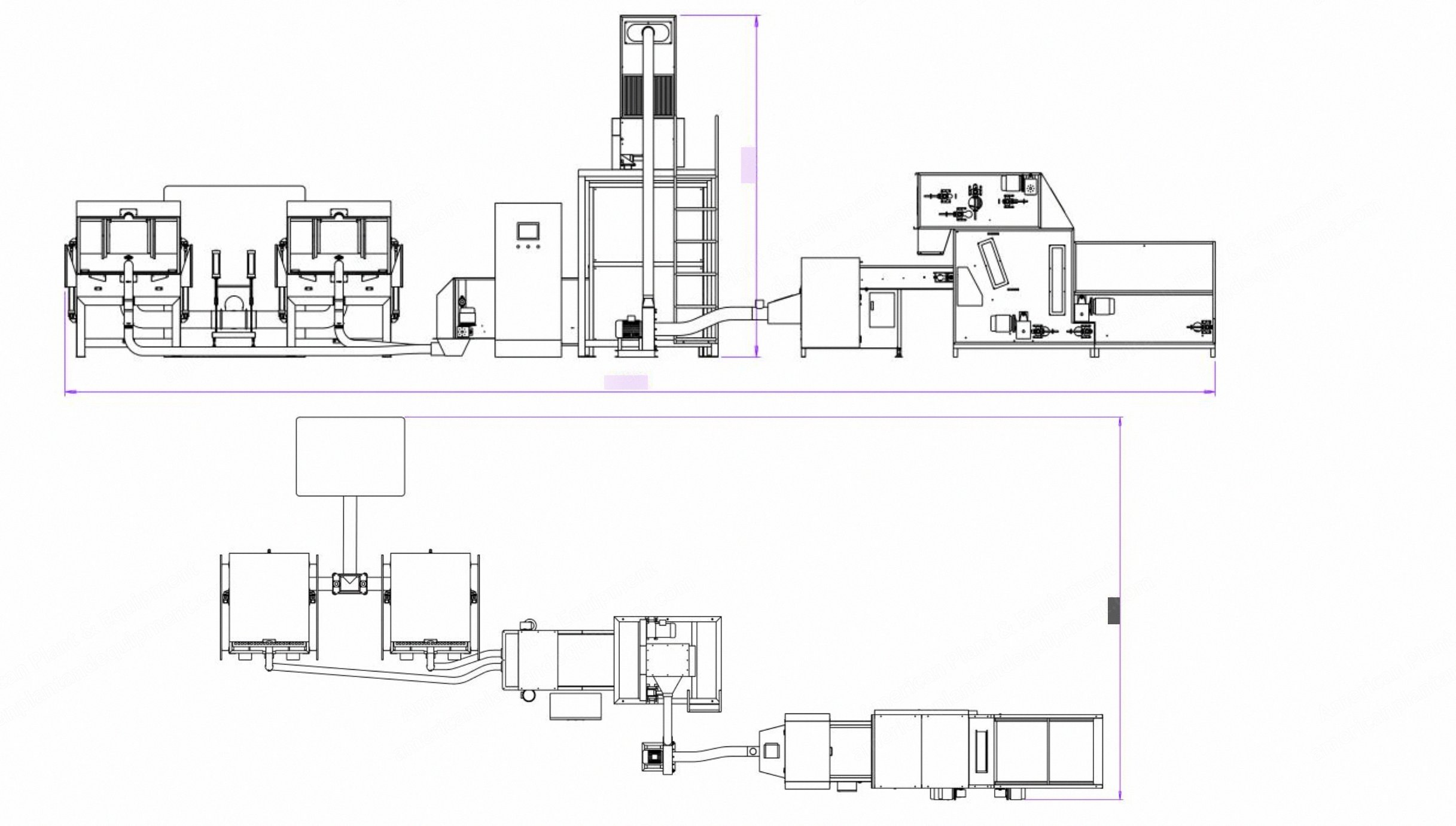

NovaStar, PC338, Automatic Pillow Production Line, Capacity 150 to 200kg/h, 380V (New)

NovaStar, PC338, Automatic Pillow Production Line, Capacity 150 to 200kg/h, 380V

Description

  1. Bale Opener
    1. Feeding inlet width: 1000 mm
    2. Feeding outlet width: 790 mm
    3. Power: (1.1 + 1.1 + 1.1) kW
    4. Dimension: 5800 x 1300 x 2100 mm
    5. Power: 3 phase, 380 V
  2. Fiber Opening Machine
    1. Capacity: 300 kg/h
    2. Power: 8.25 kW
    3. Dimension: 2200 x 1300 x 1080 mm
    4. Weight: 650 kg
    5. Power: 3 phase, 380 V
  3. Sucking Machine
    1. Power: 3 kW
    2. Dimension: 700 x 600 x 900 mm
    3. Weight: 80 kg
    4. Power: 3 phase, 380 V
  4. Automatic Weighing Fiber System
    1. Capacity: 150 kg/h
    2. Power: 2 x 0.75 kW
    3. Air pressure: 0.4 MPa
    4. Dimension: 2500 x 1300 x 3800 mm
    5. Weight: 1350 kg
    6. Power: 3 phase, 380 V
    7. Remark: The precision of automatic weighing foam and fiber mix system is ±30 g. Pillow weight range is 400 g to 1600 g. The open size of filling (pillow width): 0 to 600 mm; the length of pillow: 0 to 1000 mm.
    8. Requires buyer's factory height up to 5 meters, which is better.
  5. Vacuum Machine
    1. Power: 15 kW
    2. Dimension: 1400 x 1200 x 1500 mm
    3. Weight: 200 kg
    4. Power: 3 phase, 380 V
  6. Vacuum Filling Machine
    1. Air pressure: 0.6 to 0.8 MPa
    2. Dimension: 1400 x 1200 x 1500 mm
    3. The range of pillow size: the open size of filling (pillow width): 0 to 600 mm; the length of pillow: 0 to 1000 mm
    4. Power: 3 phase, 380 V
    5. Remark: 2 filling vacuum machines alternately work, not work simultaneously.
    6. Quantity: 2
