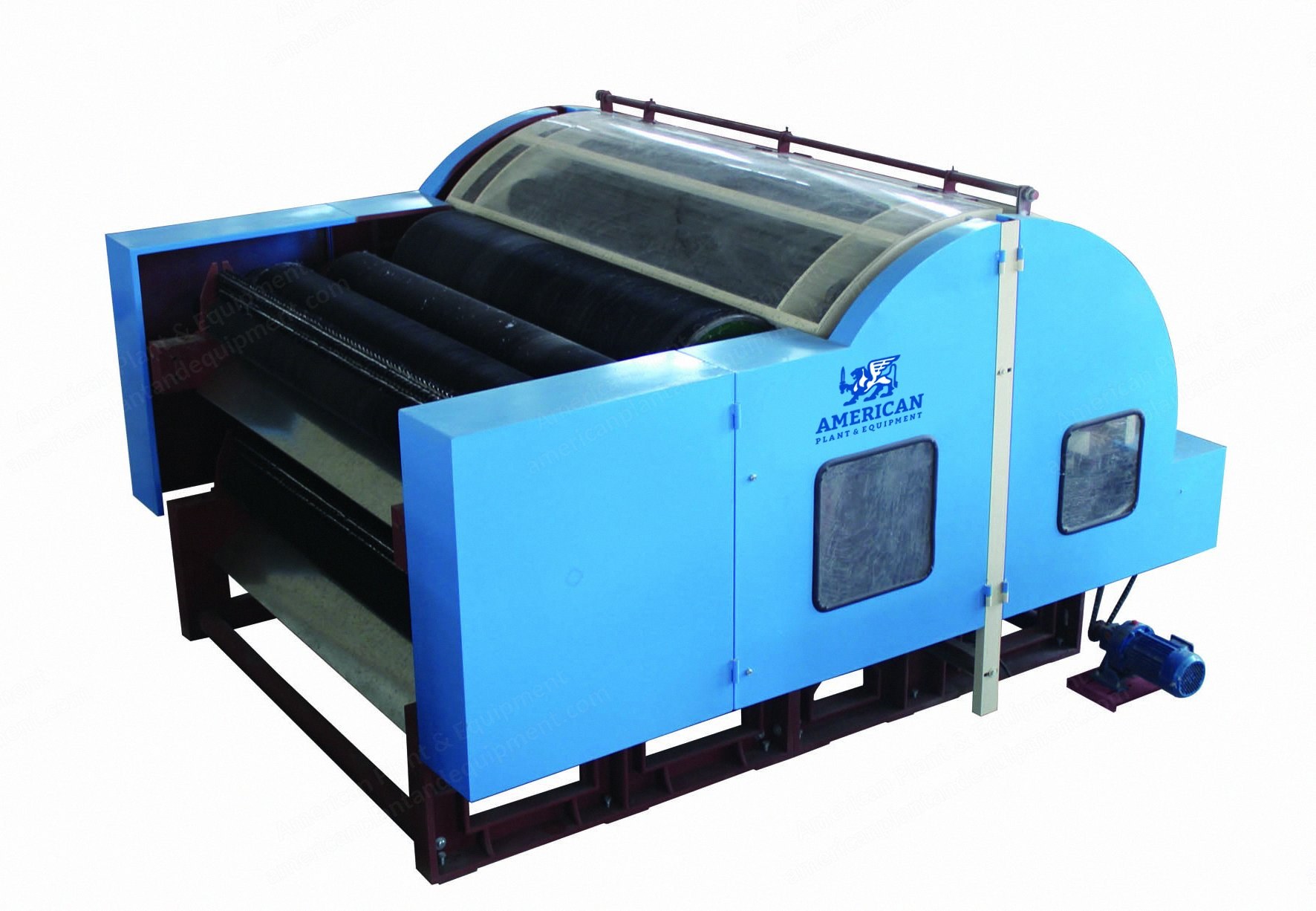

NovaStar, CR182, 2500mm Working Width, Single Cylinder, Double Doffers, 350-400kg/h Capacity (New)

NovaStar, CR182, 2500mm Working Width, Single Cylinder, Double Doffers, 350-400kg/h Capacity

Description

  1. Specifications
    1. Cylinder diameter: Ø1230 mm
    2. Machine working width: 2500 mm
    3. Doffer diameter: Ø492 mm
    4. Working roller diameter: Ø165 mm
    5. Stripping roller diameter: Ø86 mm
    6. Random roller diameter: Ø295 mm
    7. Capacity: up to 350 to 400 kg/h (depending on material)
    8. Power: 22.5 kW
  2. Construction
    1. Cylinders and doffers are casting products.
    2. Wall thickness of cylinder is 25 mm and thickness of doffer is 20 mm, with strengthening ring in them.
    3. Other drums are made of weldless pipes.
    4. The cylindricity of each drum is no more than 0.05 mm, in order to keep static and dynamic equilibrium.
    5. Cylinder circular runout: ≤ 0.05 mm
  3. Condition And Included
    1. Warranty: one year
    2. Package: nude packed
