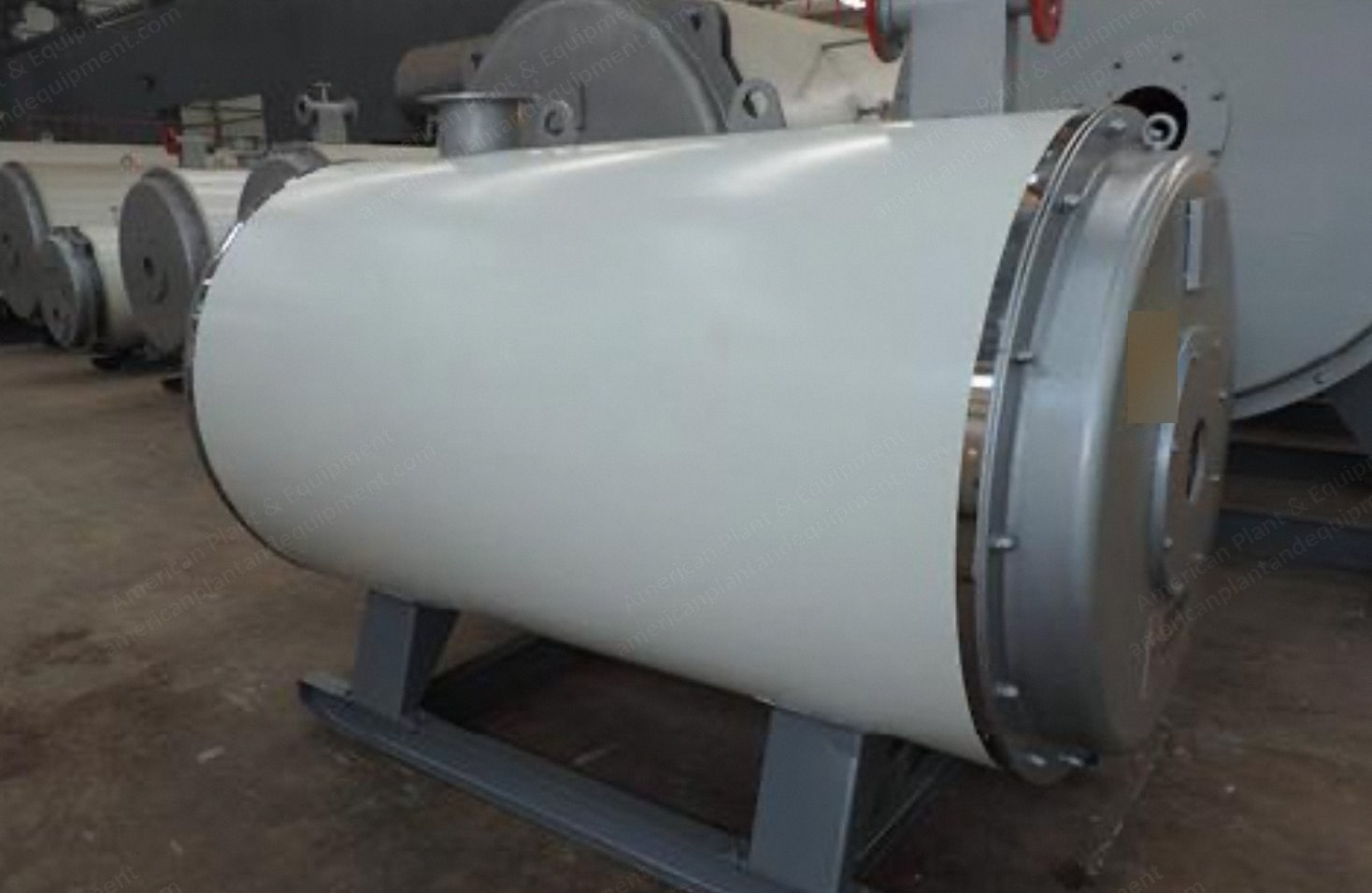

NovaStar, BT118, Organic Heat Carrier, 2400 kW, 340°C, 5097x2268x2520mm (New)

Description

Energy Saver Gas Specifications
1. Heat supply: 0.265 MW
2. Circulating water: 3.794 t/h
3. Working medium: water
4. Working pressure: atmospheric pressure
5. Return water temperature: 20°C
6. Outlet temperature: 80°C
7. Hydrostatic test pressure: 0.2 MPa
8. Heated area: 38.296 m²
9. Smoke flow cross section: 0.208 m²
10. Pollution rate: 3%
Gas Fuel Characteristics
1. Basic element composition: H2 0.105%, N2 1.86%, CO 0.1%, CO2 0.06%, CH4 96.76%, C2H6 0.885%, C3H8 0.18%, C2H4 0.05%
2. Low calorific value (QXR): 35438 kJ/Nm³
3. Theoretical air volume (VAIR): 9.414 m³/Nm³
4. Theoretical H2O volume (V°H2O): 2.123 m³/Nm³
5. Theoretical N2 volume (V°N2): 7.456 m³/Nm³
6. Theoretical RO2 volume (VRO2): 0.993 m³/Nm³
Pipe Flow Rate Determination
1. Recommended flow rate in organic heat carrier furnace: radiation section V1 > 2 m/s; convection section V2/V3 > 1.5 m/s
2. Calculation results: inner coil V1 = 3.885 m/s, outer coil V3 = 3.511 m/s
Specifications
1. Capacity: 2400 kW (2 million kcal/h)
2. Weight: 14572
3. Dimensions: 5097x2268x2520mm
4. Fuel used: Light oil, Natural gas
5. Rated oil output temperature: 310°C
6. Rated oil return temperature: 290°C
7. Highest operating temperature: 340°C

HS code	8402.19

Body Oil Volume	1.7 m3
Boiler Working Pressure	0.8 MPa
Capacity	2400 kW (2 million kcal/h)
Design Calculation Pressure	1.1 MPa
Highest Operating Temperature	340 °C
Rated Oil Output Temperature	310 °C
Rated Oil Return Temperature	290 °C
