NovaStar, MN124, Liquid Homogenizer Mixer, 500L Working Capacity, 48 kW Steam Boiler, SUS316L Stainless Steel (New)

NovaStar, MN124, Liquid Homogenizer Mixer, 500L Working Capacity, 48 kW Steam Boiler, SUS316L Stainless Steel

Description

  1. Overview
    1. Type: 500L heating homogenizing liquid washing mixer
    2. Material: SUS316L for all contact product parts and SUS304 for external

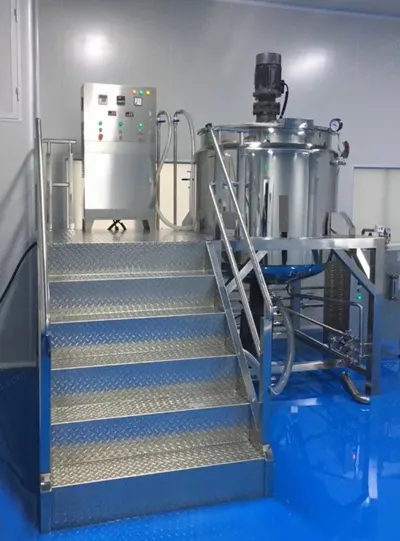

    3. Main structure: mixing pot, electric control system, operation platform
  2. Mixing Part

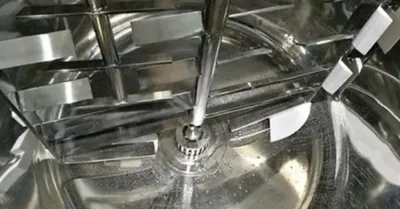

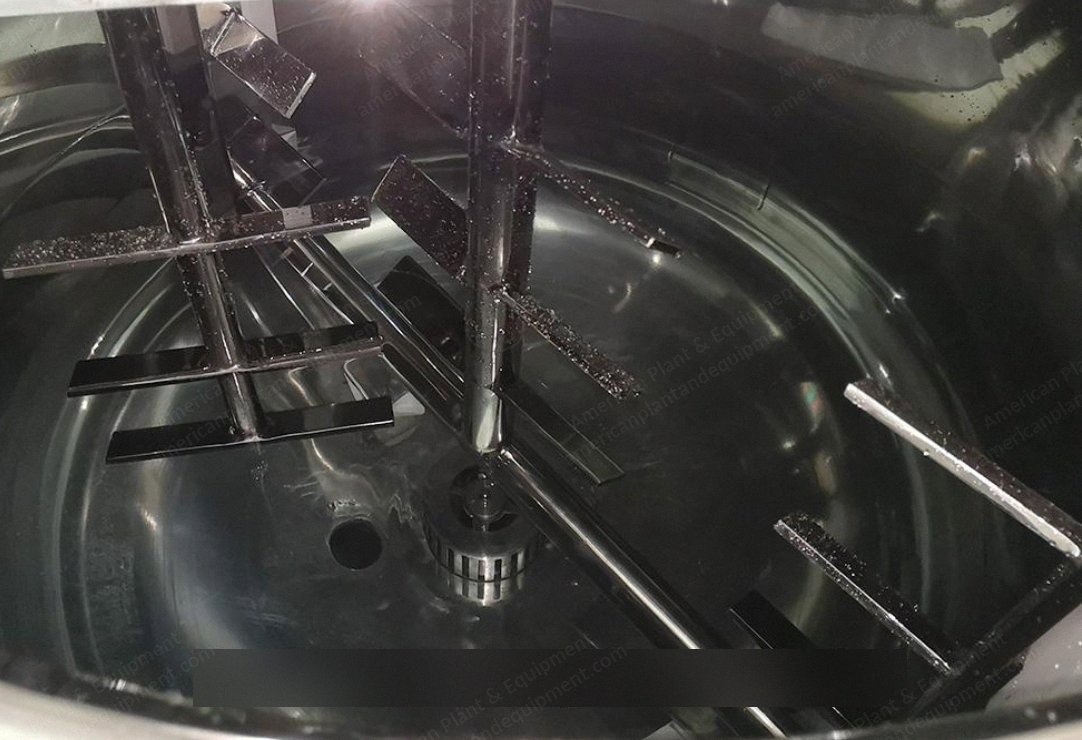

    1. Frame oar scraping blender with one fixed oar
    2. Stirrer paddle: stir up and down, mixing more evenly

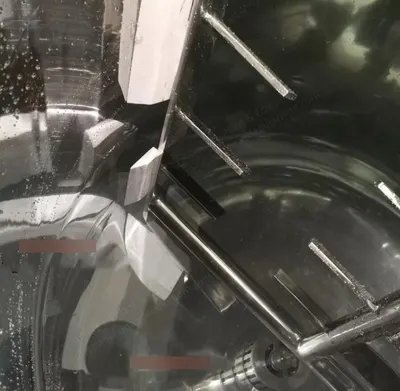

    3. Wall scraper: scraping off the materials that stick on pot wall, to make all materials mixing more evenly
  3. Homogenizer Part

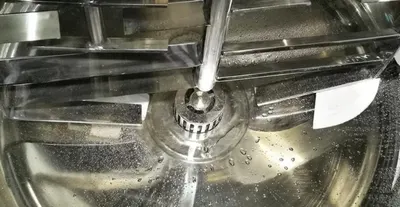

    1. Rotor and stator incorporates wire-cutting finish machining high shearing homogenizer, smooth emulsion to 2mm
  4. Discharge Part
    1. Bottom discharge, dished bottom design and bottom flat valve to make discharge completely
  5. Motor Part
    1. Burgmann mechanical seal
    2. Brand: NSK bearing, Siemens motor
  6. Cooling
    1. Water circulation cooling: cooling and homogenizer synchronization
  7. Inverter Part
    1. Speed adjustable

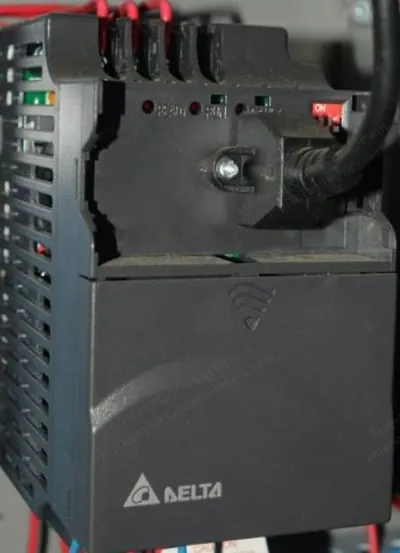

    2. Delta frequency inverter
  8. Specifications
    1. Heating tank: full volume 625L, working capacity 100 to 500L, internal and external sanitation polishing ≥300 mesh
    2. Inner tank: SUS316L, thickness 6mm; seal head SUS316L, thickness 6mm; import stainless steel
    3. Jacket: SUS304, thickness 5mm; steam heating; tap water cooling bottom inlet and top outlet
    4. Shell: SUS304, thickness 3mm; insulation media: aluminum silicate
    5. Lid: SUS304, half open hinged lid; GMP hygiene standards
    6. Agitator: frame type wall scraper mixing with one fixed propeller; flange shaft coupling; stirrer paddle SUS316L, thickness 10mm; wall scraper PTFE material, remove product from the wall
    7. Agitator motor: power 4kW, Siemens motor and reducer; speed 0 to 75RPM, Delta inverter
    8. Sealing of agitator: three way skeleton oil seal and NSK bearing

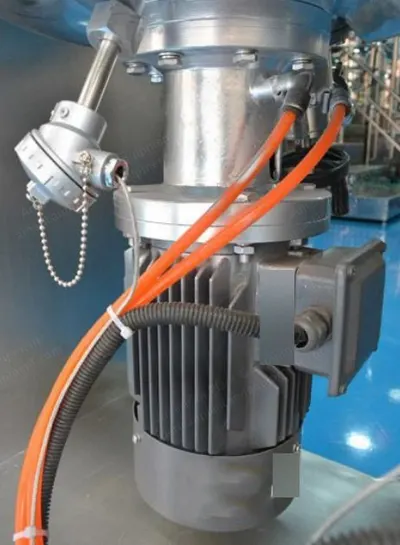

    9. Homogenizing: rotor and stator high shearing homogenizer; power 7.5kW, Siemens motor; speed 0 to 3600RPM, Delta inverter; mechanical seal with water circulation cooling, cooling and homogenizer synchronization
    10. Discharging way: SUS316L, DN63 bottom ball valve; hygiene level
  9. Electric Control System
    1. Shell material: SUS304, thickness 2mm; stainless steel sand panel
    2. Standard configuration: instrument, button, appliance components; Schneider
  10. Platform and Bracket
    1. All SS and equipped with anti-skid aluminum plate; best configuration
  11. Other Accessory Spare Parts
    1. Provide names and quantity of special and vulnerable parts; random
  12. Pipes and Fittings
    1. Heat water inlet pipe
    2. Cooling water inlet pipe
    3. Cooling water outlet pipe
    4. Drain pipe
    5. Discharge pipe

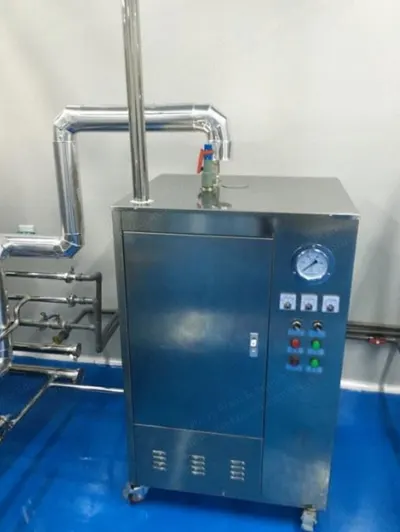

  13. 48kW Electric Heating Steam Boiler
    1. Voltage: 480V/60Hz
    2. Rated evaporation: 0.06T/H
    3. Work pressure: 0.7MPa
    4. Power: 48kW
    5. Water tank: 29L
  14. Estimated Production Time and Capacity for Reference
    1. Mixing + homogenizer + heating: 2 to 2.5 hours/batch; if 8 hours/day, 1600L to 2000L/day
    2. Mixing + homogenizer: 2 hours/batch; if 8 hours/day, about 2000L/day
    3. Mixing only: 1 to 1.5 hours/batch; if 8 hours/day, 4000L to 2700L/day
