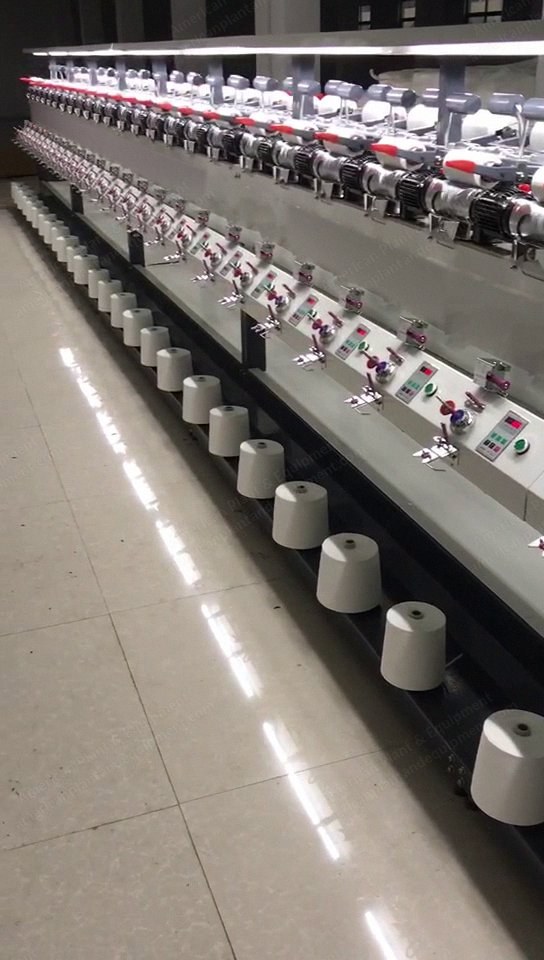

Description Overview High-speed soft cone winding machine Model number: APE-8 Suitable for cotton, wool, polyester, and other yarns Used for winding perfect soft cones preparing for yarn cone dyeing or other textile processes Application: winding soft yarn cones for the process yarn dyeing or cone to cone directly Yarn types: cotton, wool, POY, etc. Automatic grade: semi-auto Memory capacity: 999999 m Production ability: high speed Specifications Layout: double sides Number of spindles: 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120 Winding speed: 300 to 1000 meters per minute Drive: individual Take-up package: tube bobbin (0°) / cone 3°30, 4°20 Bobbin type: (8") 230 mm Package diameter: up to 350 mm or 200 mm Voltage: 220 volts Motor: AC or DC motor Motor power: 0.09 kW per spindle Weight: 500 kg Dimensions (L x W x H): 2250 mm × 1100 mm × 1400 mm (10 spindles) Auto stop device: each spindle has motion sensor Electronic yarn clearer: optional System: anti-hard-edge system and anti-stack system Meter counter: each spindle with meter counter Air splicer: optional Blower cleaner: optional Lighting system: optional Warranty: 1 year Certification: ISO9001:2008, CE After-sales service: engineer available to service machinery overseas Voltage: 220V/380V
