NovaStar, GK172, Automatic Slant Packing Machine, 14-Head Weigher, 5 to 70 bags/min, Max Film Width 520mm (New)

NovaStar, GK172, Automatic Slant Packing Machine, 14-Head Weigher, 5 to 70 bags/min, Max Film Width 520mm

Description

  1. Overview
    1. Suitable for many kinds of granules, such as puffed food, popcorn, pistachio, rice, sugar, jelly, candy, chocolate, frozen food, pet food, hardware, medicines, etc.

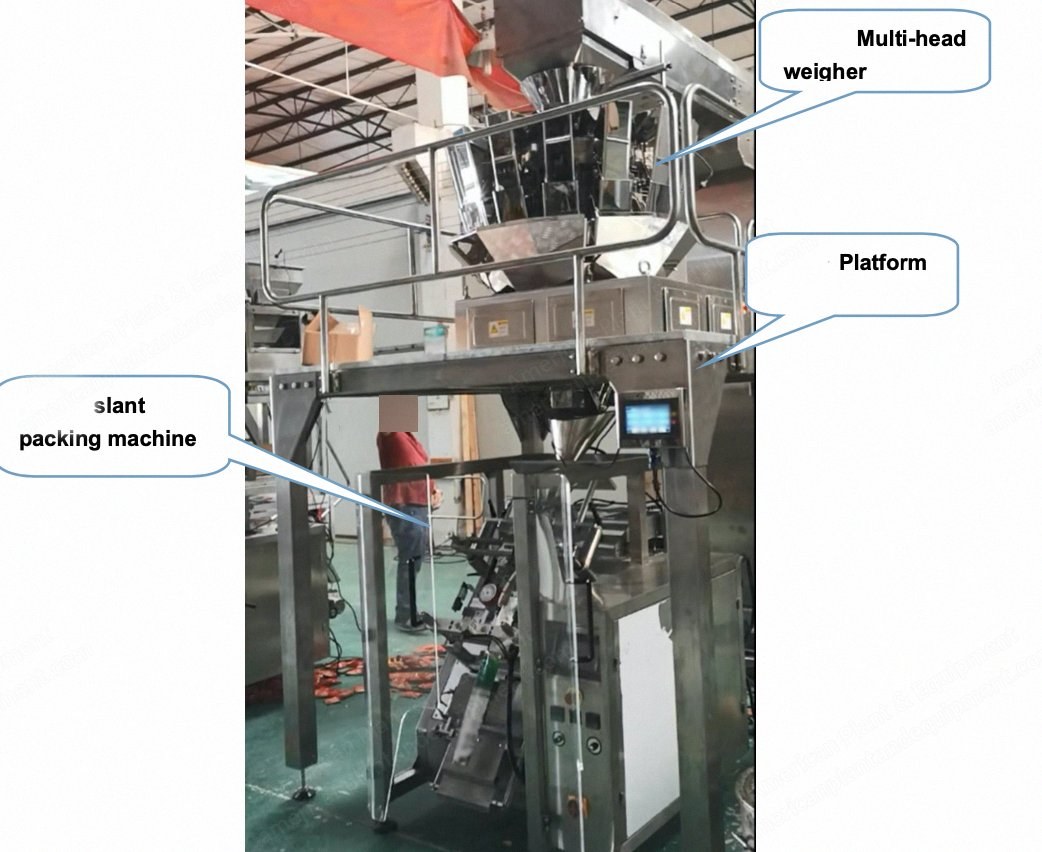

    2. Includes Nova-25 automatic slant packing machine, Nova-41 multi-head weigher, Nova-530 z-shape material elevator, Nova-1-1 platform, Nova-310-1 finished products conveyor, Nova-8-1 metal detector for aluminum foil/bag, and Nova-S0001 checkweigher.

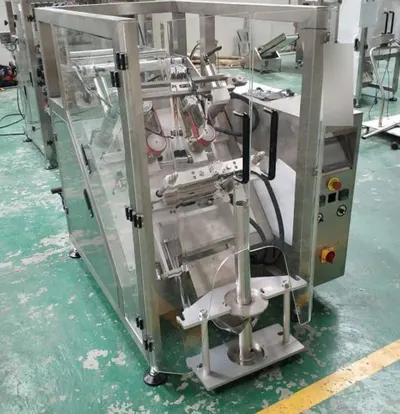

  2. Nova-25 Automatic Slant Packing Machine
    1. Type: Nova-25
    2. Bag length: 80 to 370 mm (L)
    3. Bag width: 80 to 250 mm (W)
    4. Max width of roll film: 520 mm
    5. Packing speed: 5 to 70 bags/min
    6. Air consumption: 0.65 MPa
    7. Gas consumption: 0.4 m³/min
    8. Power voltage: 220 V / 50 Hz
    9. Power: 4 kW
    10. Dimension: (L) 1500 mm × (W) 1170 mm × (H) 1650 mm
    11. Weight of machine: 650 kg
    12. First servo is designed for pulling the packaging film; it can pull the film accurately.
    13. Second servo drives the horizontal sealing jaws; it helps the machine work faster.
    14. Code printer comes with packing machine.
    15. Bag forming tube is included; if bag width is fixed, no need to buy extra tube; if different bag widths are needed, extra tubes must be purchased.
    16. If only bag length changes, no need to buy extra bag forming tube; parameters can be modified on the touch screen.
    17. Gusset device: if chosen, you can shift gusset bag or pillow bag by yourself.

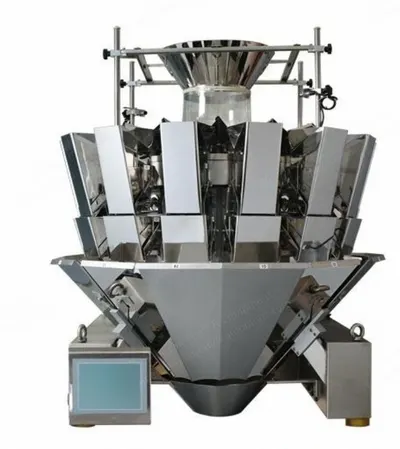

  3. Nova-41 Multi-Head Weigher With Timing Hopper
    1. With timing hopper, the dropping distance is shorter; the product can be filled faster.
    2. Suitable for high speed weighing of granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food and frozen foods, etc.; also suitable for weighing small metal and plastic parts.
    3. Load cell level sensor controls material feeding.
    4. No products auto pause function can avoid material dropping out during running.
    5. The single linear feeder amplitude can be auto/manual adjusted to ensure the products easy-flowing with high accuracy.
    6. Facility to maximize or minimize the operation angle to the size of the product.
    7. IP64 waterproof and dustproof design, which is easy to clean and maintain.
    8. Multilanguage control panel: Spanish, Korean, German, French and Arabic, etc.
    9. High accuracy and high-speed modes can be selected.
    10. Max weight capacity (once): 10 to 2000 g
    11. Weighing accuracy (g): ±0.5 to 2 g
    12. Max weighing speed: 120 bags/min
    13. Hopper volume: 2500 ml
    14. Control panel: 10” LCD touch screen
    15. Options: dimple plate / timing hopper / printer / rotary top cone
    16. Driving system: step motor
    17. Power requirements: 220 V / 1500 W / 50/60 Hz / 10 A
    18. Packing dimension (mm): 1720 (L) × 1100 (W) × 1230 (H)
    19. Gross weight: 490 kg
  4. Condition
    1. Used industrial machine in working condition.
    1. Available for inspection and pickup at seller’s facility.
