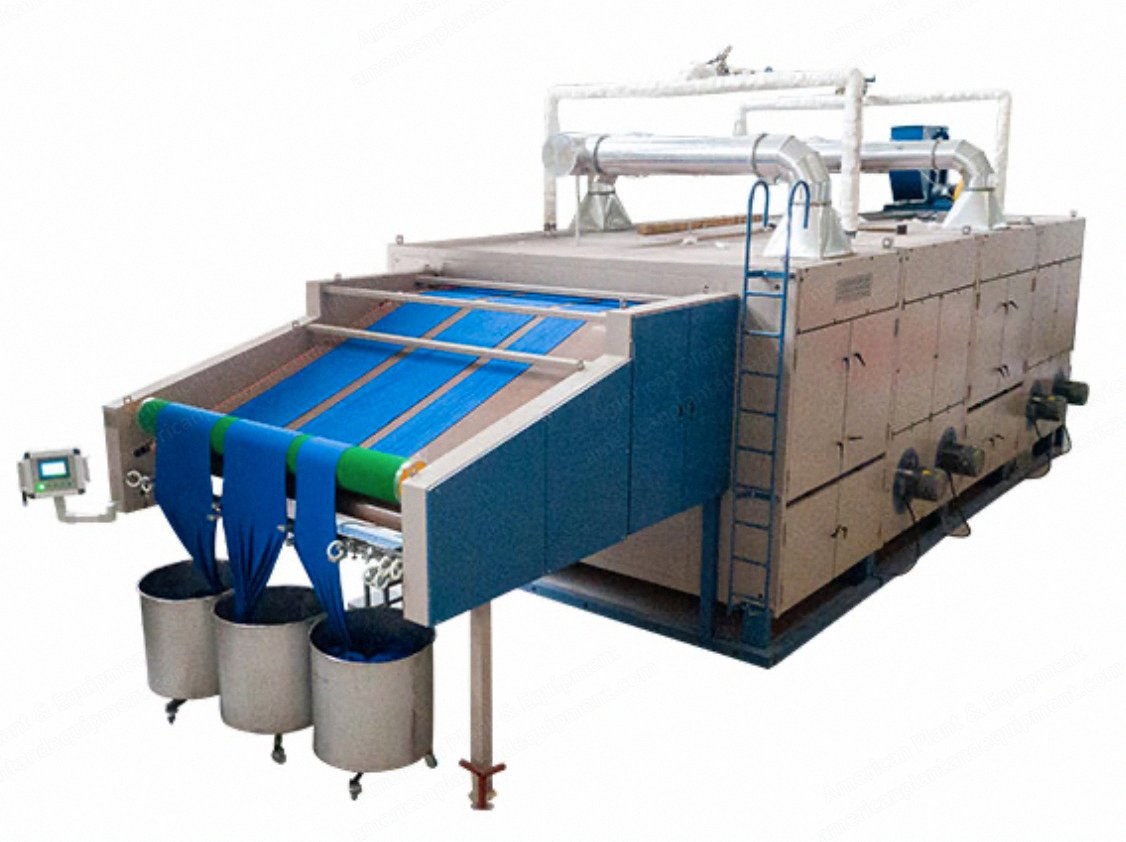

NovaStar, DG554, Five Pass Relax Dryer, 2200-3200mm Working Width, 4-40 Tons/24h Capacity (New)

NovaStar, DG554, Five Pass Relax Dryer, 2200-3200mm Working Width, 4-40 Tons/24h Capacity

Description

  1. Overview
    1. Used for tubular and open knitted fabrics drying process.
    2. Each pass of the fabrics speed is controlled separately.
    3. Fabrics run in a fully tensionless status.
  2. Key Features
    1. 40% higher output: the output of five pass relaxation dryer is 40% more than three pass relaxation dryer based on the same quantity chambers.
    2. Multi-direction air blowering: relax dryer air nozzles incorporate Krantz design, achieving multi-direction three-dimensional blowing of fabrics.
    3. 8% to 10% shrinkage after dry process: fabrics infeeding uses two times over infeeding structure, guaranteeing fabrics without any tension when feeding; middle of the chambers equips tumbling system, guaranteeing fabrics move in wave, so fabrics shrinkage can be 8% to 10% after the process.
    4. Output will not reduce by years later: relax dryer chambers are dischargeable, easy to clean dirties and fibers inside the chamber, so after several years running, machine will not decrease its output.
    5. Blower motors are easy to repair: the motor and impeller are fastened to 10mm steel plate by bolts, easy to repair the motor.
    6. Conveyor belt will not drift: conveyor belts have 4pcs high temperature resistant travel switch, which will protect the belt drift.
    7. Hot air will not go outside by special nozzle design: special design of the entrance and exit of the air nozzles prevents hot air from going outside.
    8. Incorporates PLC remote control, which can help customer to adjust the process online.
    9. Moisture sensor device is optional: connects with PLC, users can adjust the exhaust motors speed according to the moisture status, so as to save more energy.
