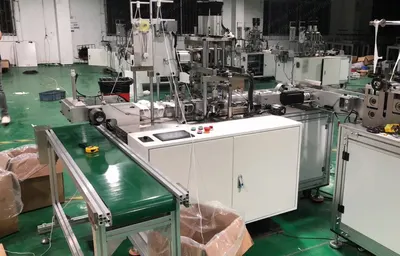

NovaStar, FM323, Fully Automatic Fish Mask Making Machine, Capacity 100-120 pcs/min, 7.5kW (New)

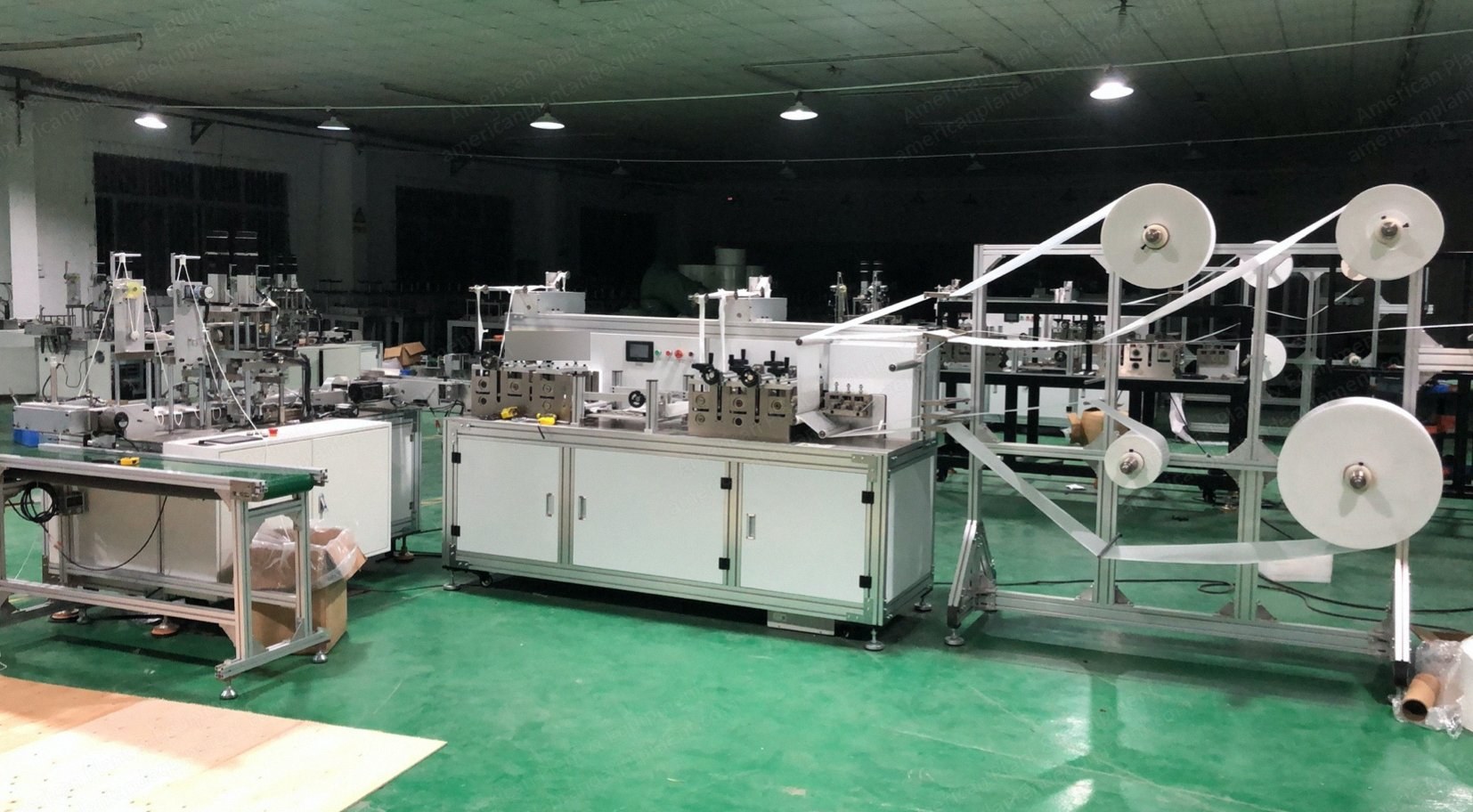

NovaStar, FM323, Fully Automatic Fish Mask Making Machine, Capacity 100-120 pcs/min, 7.5kW

Description

  1. Specifications
    1. Mask dimensions: L215 x W79 mm
    2. Air supply: air pressure 0.5 to 0.7 MPa, air flow 300 L/min
    3. Voltage: AC220V or AC380V (3 phase), 50/60 Hz
    4. Power: 7.5 kW
    5. Capacity: 100 to 120 pcs/min
    6. Production environment demand: temperature 10 to 35 °C, humidity 5 to 35% HR, dust-free (cleanness no less than 100,000)
    7. Weld strength: the length of the nose line should not be less than 8 cm, and each mask belt should be connected with the mask body; the fracture strength is not less than 10 N
    8. Feeding reel: 4 plates x 600 mm diameter of the cloth coil, or 3 plates x 600 mm diameter cloth rolls
    9. Weight: 1250
    10. Dimensions: 5705x2053mm
  2. Machine Construction and Features
    1. The whole machine consists of the material frame part, the upper nose line part, the shape of the fusion part, folding forming, the shape of the cutter part, the turnover part, the material part, the point ear belt part, and the collection part, using servo motor and ultrasonic welding technology to complete the production.
    2. Material rack part: air expansion shaft to ensure that the material tension is moderate and no wrinkle.
    3. The upper nose line: add ultrasonic welding to the cylinder, and fix the nose line with the required length and specification on the material.
    4. Shaping welding part: mold with ultrasonic, preliminary grain welding.
    5. Folding: fold the cloth.
    6. The shape of the cutter: the customized cutter is rolled and shaped, and the mask is preliminarily shaped at this time.
    7. Turn over part: turn over the face of the mask to prepare for the ear loop.
    8. Dividing part: reasonable distribution, capacity increase.
    9. Ear straps: the mask machine industry special rotary disc, with ultrasound to spot weld the ear straps on the semi-finished mask; the mask is formed at this time.
    10. Collection part: belt out, product collection, can be connected to the packaging machine (this product does not include packaging machine).
  3. Condition and Included Items
    1. Quantity: 1
