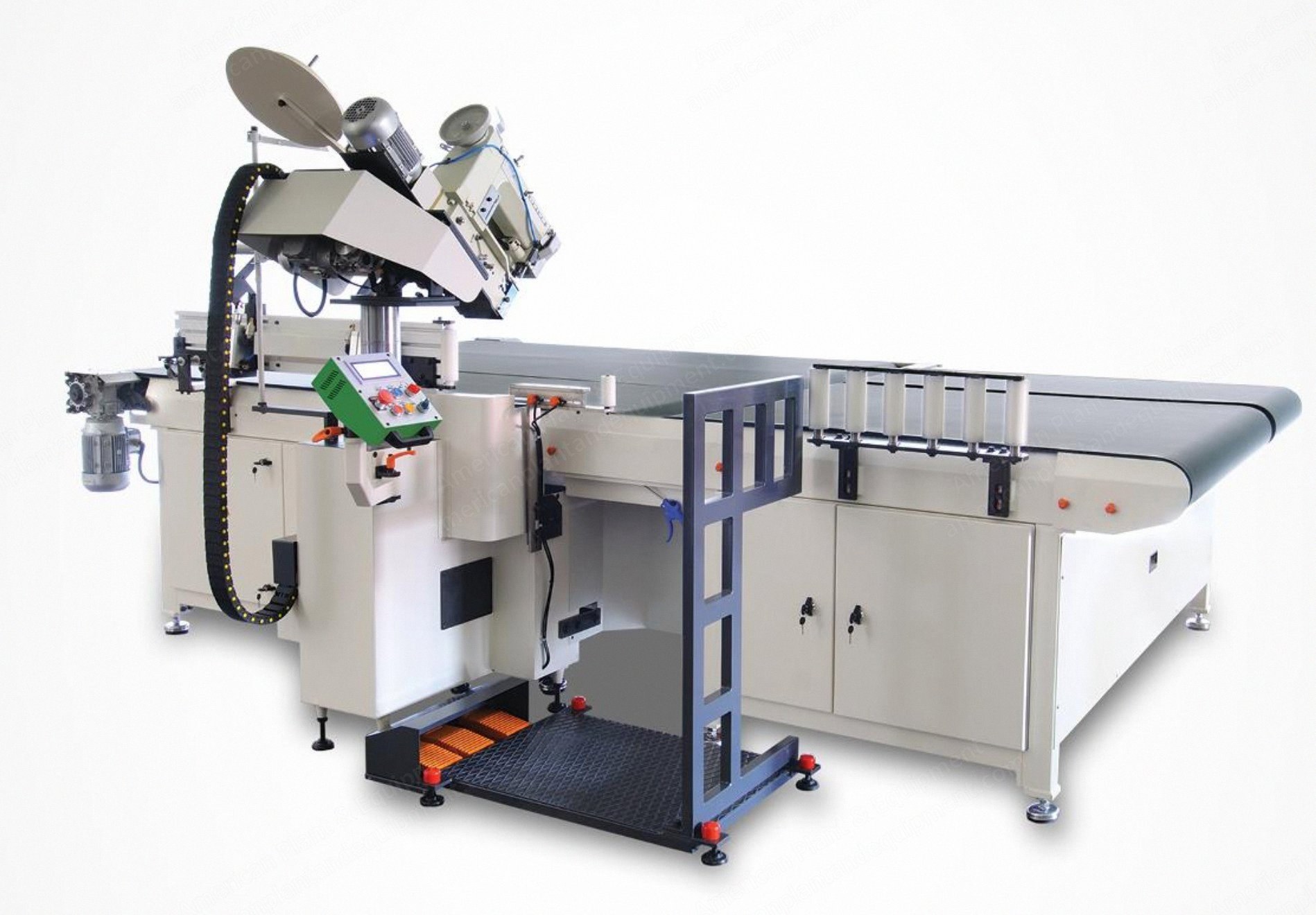

Designed to achieve highest productivity with an ergonomic and highly efficient tape edge operation.
Motorized conveyor belt, mattress flipping system, automatic sewing head adjustment, slowdown in the corners, and easy height and speed adjustments ensure the best experience for sewing tape on any type of mattress.
Lean and ergonomic machine structure achieved through the use of highest quality materials in every detail.
Highlights
Independent working conveyor belts: The two independent working conveyor belts allow a continuous sewing process.
Conveyor belts and sewing machine work synchronized with each other to adjust the sewing speed in the easiest way possible.
Simple mattress flipping without intervention: Mattresses are flipped easily thanks to the mattress flipping arms.
Automatic mattress flipping eliminates the need for operator handling.
Intelligent needle cooling system: The intelligent cooling system ensures air-cooling of the needle during the sewing operation.
User-friendly touchscreen display allows easy handling for the operator.
More flexibility in the corners: Simple sewing process in the corners of the mattress with automatic position adjustment of the sewing machine.
Automatic slowdown during the sewing operation at the corners of the mattress.
Perfect sewing operation on any type of mattress: Flexible design allows high productivity even for heavy mattresses.
Technical Specifications
Machine type: Conveyor type
Production capacity: 250 mattresses / 8 hours (approx.)
Mattress height: 50 mm to 500 mm
Max. mattress size: Min 600 x 1200 mm, max 2000 x 2100 mm
Sewing speed: 3,500 rpm
Needle size: 180/24
Air requirement: 6 bar, 90 p.s.i.
Power requirements: Three phase 380 V, frequency 50 to 60 Hz, input fuse 63 A, cable 4 x 4 mm²
Power consumption: Approx. 3.5 kW
Working temperature: 0° C to 40° C
Weight: 1,350 kg
Machine dimensions (L x W x H): 4000 x 3000 x 1800 mm
Control system: Mitsubishi PLC control system
