NovaStar, 4-Station Mattress Packing Machine, Max. 2000x2100mm, 50 Ton Compression, 30 kW (New)

NovaStar, 4-Station Mattress Packing Machine, Max. 2000x2100mm, 50 Ton Compression, 30 kW

Description

  1. Overview
    1. Products for packing: mattress, topper, bedbase, box spring, headboard
    2. Water cooling: yes
    3. Automatic mattress sizing system: yes
    4. Pneumatic compressing on mattress: yes
    5. Automatic mattress height sizer: yes
    6. Fixable diameter: yes, 240 to 430 mm
    7. The machine has four options controlled by a plc screen: standard packing, vacuum and compress, folding, roll packing
  2. Technical Specifications
    1. Max. mattress size: 2000 x 2100 mm
    2. Min. mattress size: 700 x 1800 mm
    3. Max. mattress height: 450 mm
    4. Min. mattress height: 50 mm
    5. Thickness of the nylon: 50 to 150 microns
    6. Compressing load: max 50 ton
    7. Compressing capacity: 2 pcs per 1 min
    8. Roll-pack capacity: 40 second per 1 rollpack
    9. Packing capacity: 3 pcs per 1.5 min
    10. Power requirement: 30 kW
    11. Voltage type (revised as optional): 480 VAC (III+N+TT)
    12. Compressed air: 6 to 8 bar
  3. Dimensions and Shipping

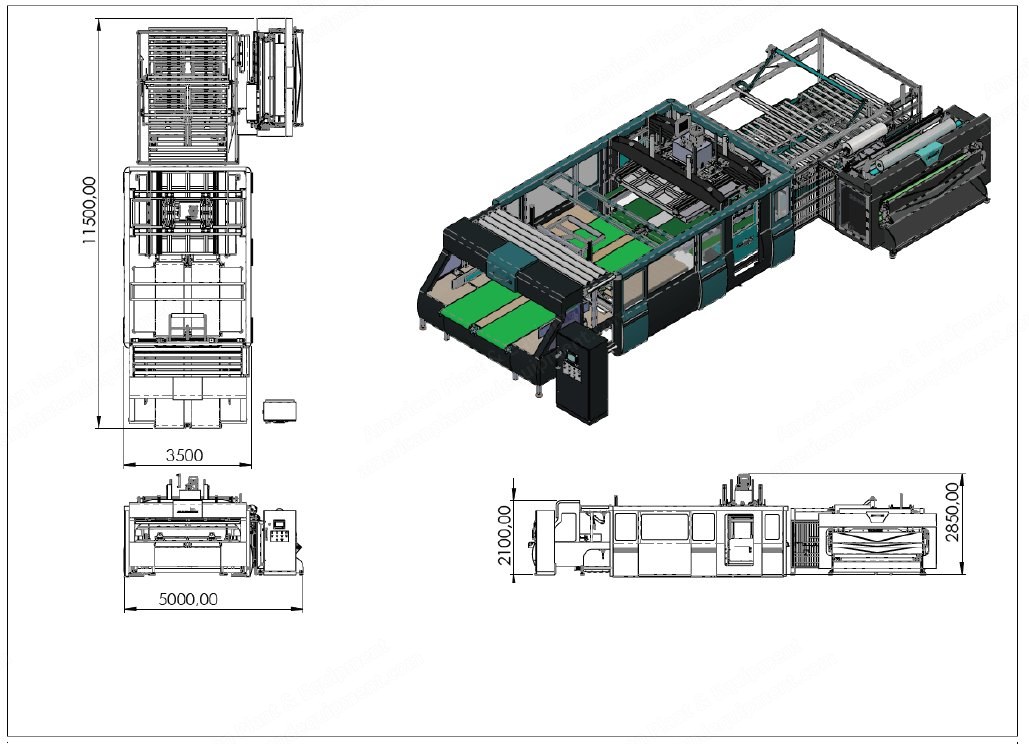

    1. Dimensions L x W x H: 11500 x 5000 x 2850 mm
    2. Shipping by: 2 x 40 HC container
