NovaStar, SG272, Double Shaft Shredder, 1600 kg/h, 22 kW, 600x500mm Chamber (New)

NovaStar, SG272, Double Shaft Shredder, 1600 kg/h, 22 kW, 600x500mm Chamber

Description

  1. Overview
    1. Machine model: Double Shaft Shredder
    2. A picture containing floor, red, farm machine Description automatically generated
  2. Technical Parameters
    1. No. 1 – number of knives: 20, size Φ 280 x 30mm (OD. x T)
    2. No. 2 – number of spacers: 22, size Φ160 x 30mm (OD. x T)
    3. No. 3 – number of shafts: 2, size Φ120 x 1200mm (OD. x T)
    4. No. 4 – chamber dimensions: 600 x 500mm (L x W)
    5. No. 5 – main shaft speed: 15 to 30 rpm
    6. No. 7 – motor power: 11 kW x 2 sets
    7. No. 8 – reducer: K 97 model x 2 sets
    8. No. 9 – output capacity: 1,600 kgs/hour
    9. Voltage: 220V/380V/415V/440V or as per customer
    10. Dimensions: 2200 x 1700 x 2200 L x H x W
    11. Weight: 3,000 kgs
  3. Machine Mechanical Part (Design and Structure) – Shredder Main Body View
    2. Advantages
    3. Heavy moving knife, high crushing efficiency moving knife and fixed knife are cast with alloy steel, strong, long service life,iron frame plate thick, high torque resistance, very strong,easy to adjust, low maintenance cost, economical and durable.
    4. The unit yield is the passing quantity calculated theoretically, and the specific use should be determined according to the actual density and shape of the crushing material.
  4. Shredder Chamber Part
    2. 1. Rotary blade
    3. 2. Spacer
    4. 3. Shaft
    5. The case of the twin-shaft shredder is an important part of the shredder unit, which includes the blade, the spacer, the shaft and the shredder chamber.
    6. Users can customize the shredding machine cases of different sizes according to the production requirements of different materials in time.
  5. Control Panel Details
    2. 1. The display screen is a 7-inch display of Siemens Touch SmartLine series, with precise touch and real-time control.
    3. 2. Can control the machine's forward rotation, reverse rotation, and the conveyor belt (optional configuration, according to customer needs configuration) transmission. And time can be programmed.
    4. 3. The device will automatically reverse when it encounters jammed material during operation, ensuring that the machine will not damage the motor due to load.
    5. 4. The operation screen is easy to learn and practical.

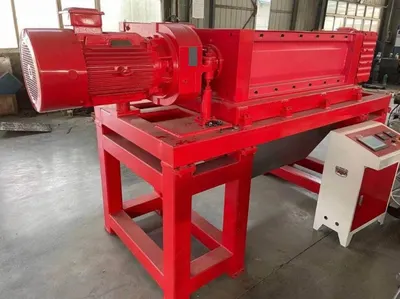

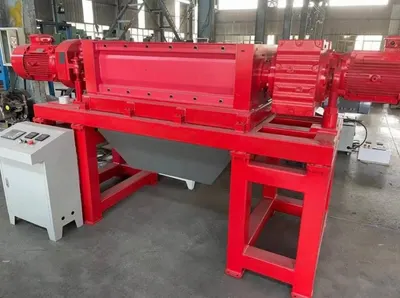

  6. Final Machines Images

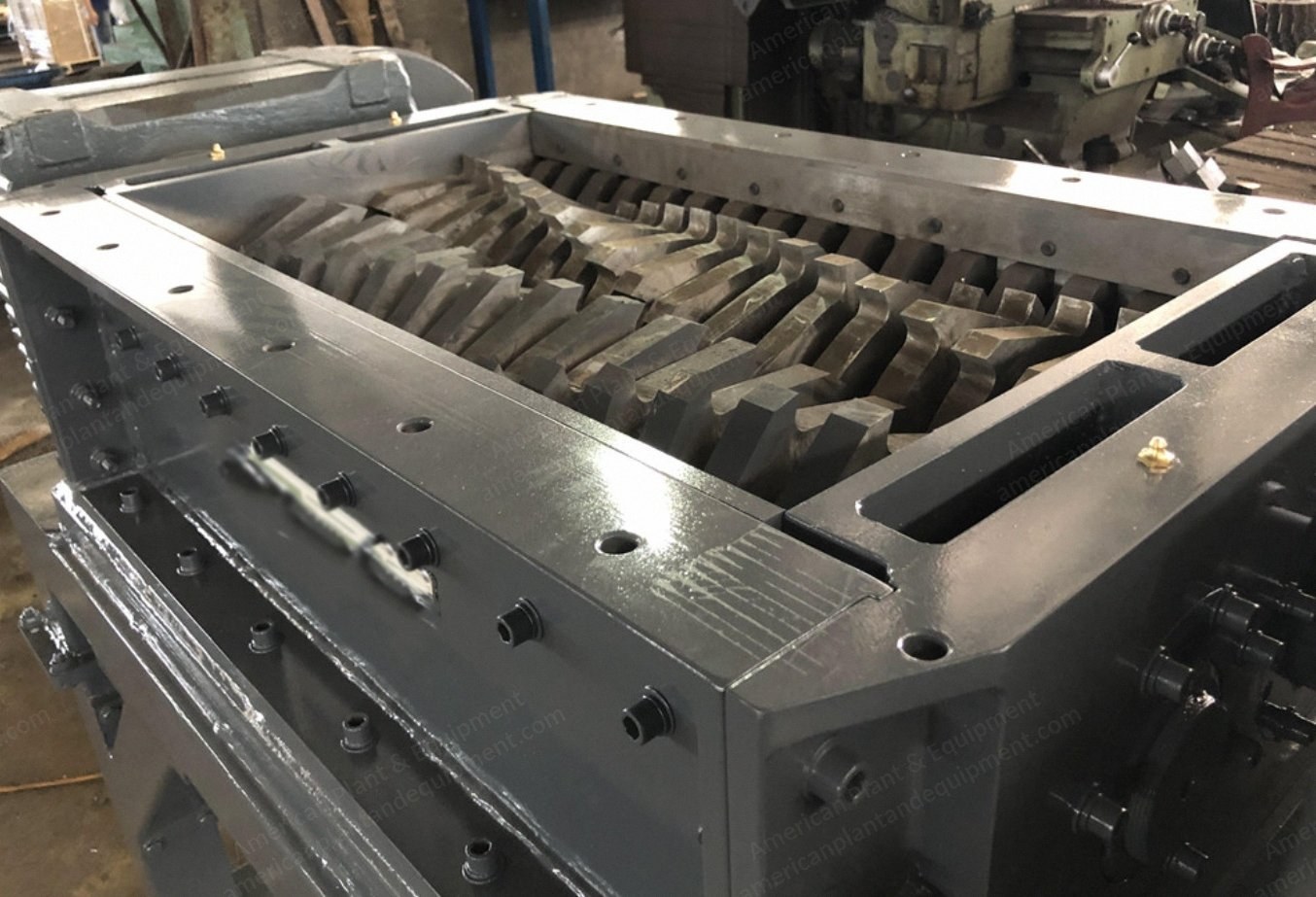

    1. Shredder chamber: reasonable design, saving energy consumption under the premise of reaching the capacity required by customers.

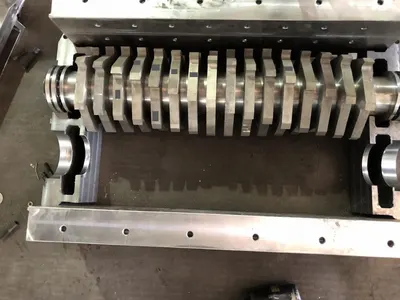

    3. Shredder shaft: it is manufactured by a precision machining center to ensure precision, and easily shreds materials with the shredder blade.

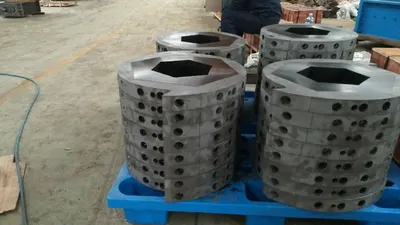

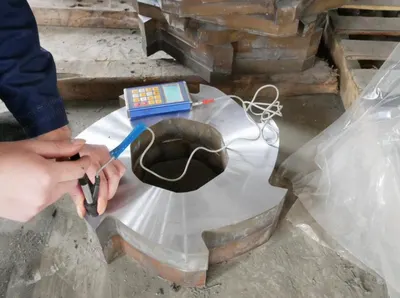

    5. Blade, select high-quality materials, strict processing and testing, to ensure the hardness and accuracy of the blade, extend the blade life and sharpness.
  7. Blade Types
    1. Type A full body type blade
    3. Type B replaceable( optional) cutting head type blade (easy replace after previous blade getting break or blunt).
  8. Options and Applications
    1. Conveyor belt transmission part (optional)
    2. Shredder multi - application
    3. Use for plastic, wood, metal, rubber, glass, etc.
