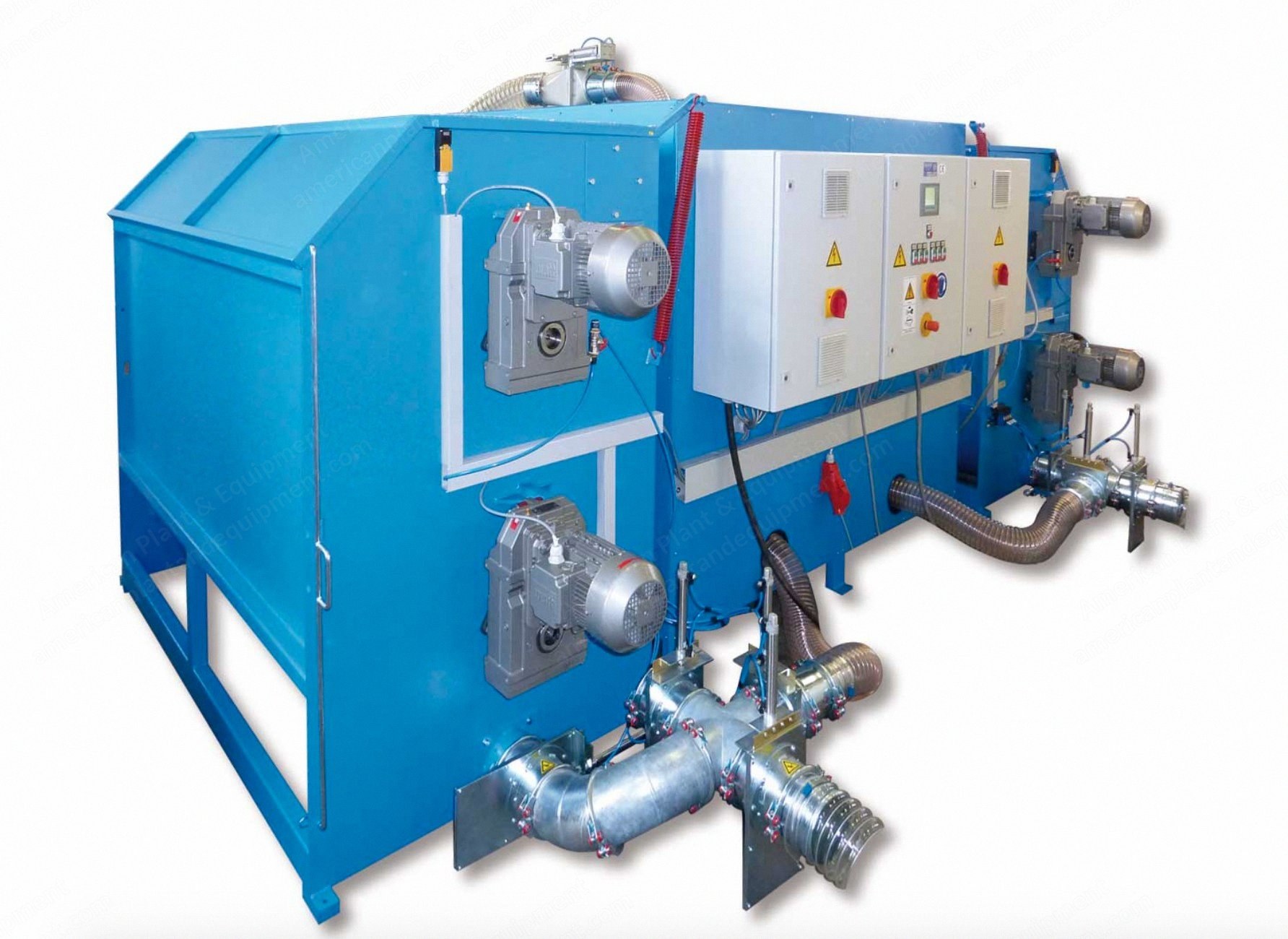

Nova-01, Ball Forming Unit, 60 kg/h Capacity, 20 kW, 2200x2800x2400mm

Description

Application Area
1. For the production of polyester ball fibres from siliconized hollow fibres.
2. Due to the integrated mixer, this equipment can also be used to mix different filling material (e.g. ball fibres with foam sticks etc.) and serve directly to fill pillows.
Specifications
1. Type: Nova-01, Nova-02, Nova-03, Nova-04
2. Amount mixer: 1 (Nova-01), 2 (Nova-02), 1 (Nova-03), 2 (Nova-04)
3. Amount turbines: 6 (Nova-01), 6 (Nova-02), 12 (Nova-03), 12 (Nova-04)
4. Output: 60 kg/h (Nova-01), 100 kg/h (Nova-02), 80 kg/h (Nova-03), 150 kg/h (Nova-04)
5. Motors: 20 kW (Nova-01), 27 kW (Nova-02), 33 kW (Nova-03), 40 kW (Nova-04)
6. Length: 2200 mm (Nova-01), 3400 mm (Nova-02), 3200 mm (Nova-03), 4400 mm (Nova-04)
7. Width: 2800 mm (all types)
8. Height: 2400 mm (all types)
9. Weight: 1500 kg (Nova-01), 2300 kg (Nova-02), 2000 kg (Nova-03), 3000 kg (Nova-04)

Applications	Production of polyester ball fibres from siliconized hollow fibres and mixing filling materials
Capacity	60-150 kg/h
Models Available	[{'type': 'NOVA-01', 'mixers': 1, 'power_kw': 20, 'turbines': 6, 'weight_kg': 1500, 'output_kg_h': 60, 'dimensions_mm': '2200x2800x2400'}, {'type': 'NOVA-02', 'mixers': 2, 'power_kw': 27, 'turbines': 6, 'weight_kg': 2300, 'output_kg_h': 100, 'dimensions_mm': '3400x2800x2400'}, {'type': 'NOVA-03', 'mixers': 1, 'power_kw': 33, 'turbines': 12, 'weight_kg': 2000, 'output_kg_h': 80, 'dimensions_mm': '3200x2800x2400'}, {'type': 'NOVA-04', 'mixers': 2, 'power_kw': 40, 'turbines': 12, 'weight_kg': 3000, 'output_kg_h': 150, 'dimensions_mm': '4400x2800x2400'}]
