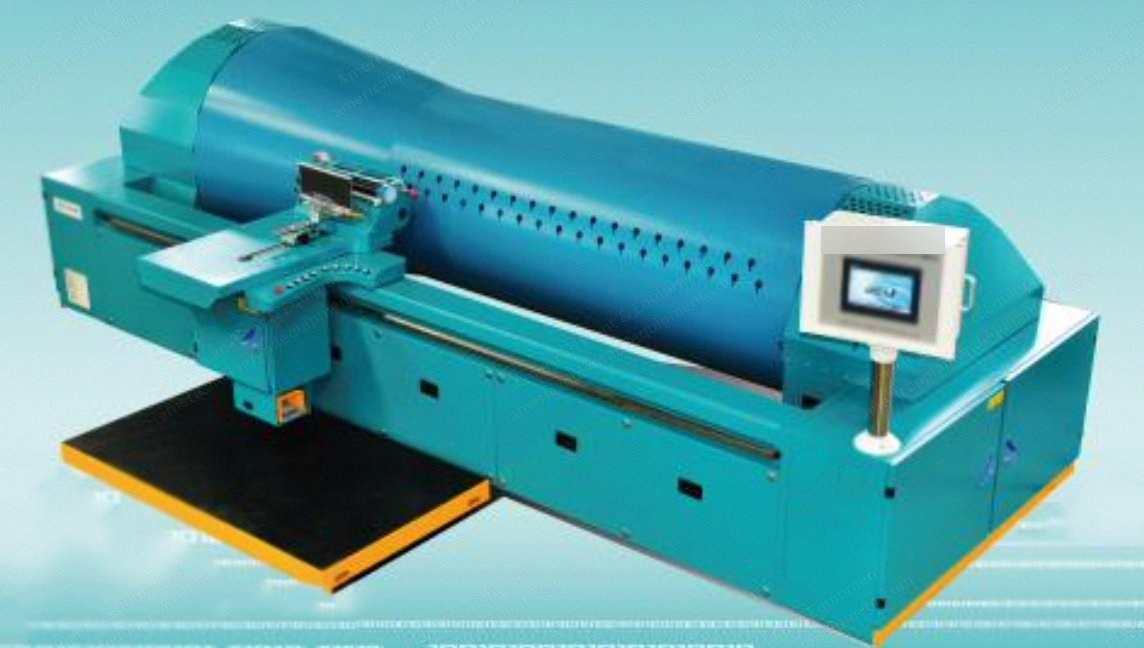

NovaStar, WS211, F928B, Working Width 2600mm, Creel Capacity 444 Ends, Beam Diameter 800mm (New)

NovaStar, WS211, F928B, Working Width 2600mm, Creel Capacity 444 Ends, Beam Diameter 800mm

Description

  1. Overview
    1. Series of sectional warping machine is to wind yarn from creel to drum through screen reed, tensioner and inching leasing reed.
    2. After warping, warp sections aligned evenly and winded on weaving beam.
  2. Head Stock
    1. Working width: 2600mm
    2. Drum thickness: 10mm
    3. Supports density in drum: 15cm per support
    4. Laser device on warping table
    5. Beam diameter: Φ800mm
  3. Automatic Leasing Reed
    1. Automatic leasing reed included.

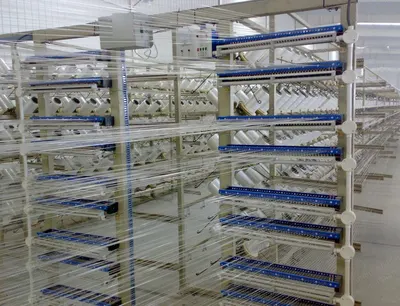

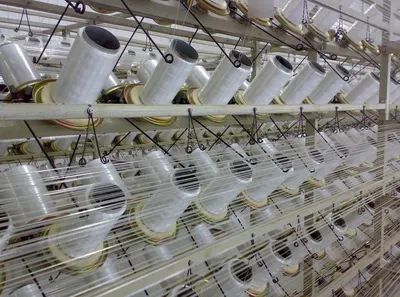

  4. Creel
    1. Fixed type
    2. Tensioner: radial unwinding device (mechanic) for monofilament polypropylene 0.2 to 1.2mm
    3. Creel capacity: 444 ends
    4. Pitch: 280mm x 330mm, 6 tiers
    5. Stop motion: infrared auto-stop system
  5. Warping Part
    1. Servo motor controls machine move left and right.
    2. Two linear guide rails and one ball screw support the warping table, ensure its very stable and accurate moving. Static eliminator and laser measuring device mounted on the warping table.
    3. Warping table’s left/right moving and front/back moving are controlled by servo motor.
    4. When first section is done, sections from second to last one work as copying first section data.
    5. Infrared protection device ensures the safety of operators.
  6. Beaming Part
    1. Integrated protection fence which can be controlled automatically by button.
    2. Hydraulic warp beams load/unload device.
    3. Working width can be set as required by button.
  7. Creel: Mechanic Control for Constant Tension
    1. Tension is kept constant when bobbin is unrolling to almost empty.
    2. Infrared auto-stop motion.
  8. Specifications
    1. Working width: 2600mm (reinforced drum)
    2. Beam diameter: Φ800mm
    3. Maximum warping speed: 1000m/min (80m/min due to creel radial unwinding device)
    4. Maximum beaming speed: 300m/min (when beam is full of yarn)
    5. Drum diameter: 1000mm
    6. Drum taper: 1:6
    7. Drum cone length: 1380mm
    8. Maximum section width: 390mm
    9. Maximum warping tension: 500N
    10. Maximum beaming tension: 9000N
    11. Input voltage: 3 x 480V±10%, 60Hz
