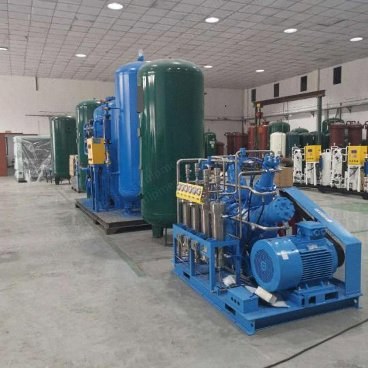

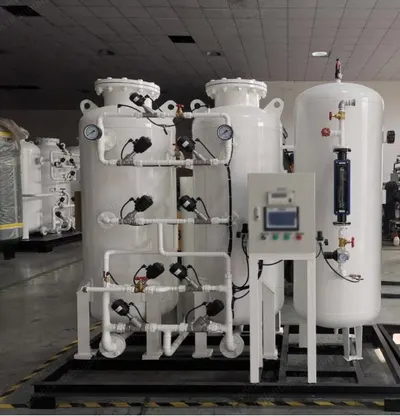

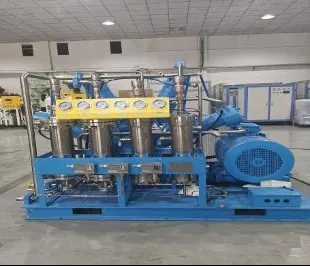

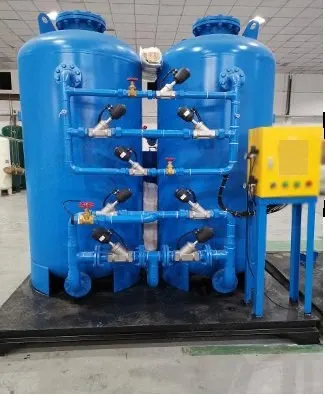

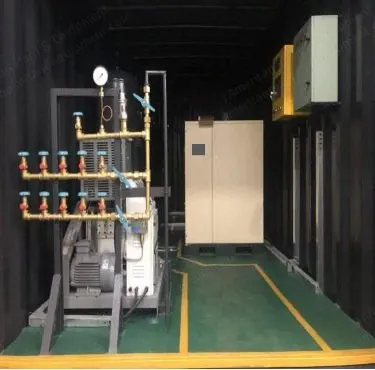

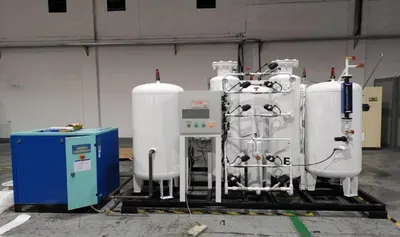

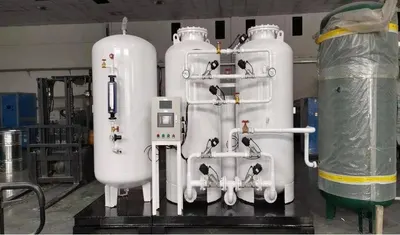

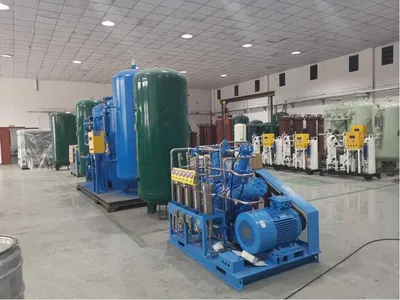

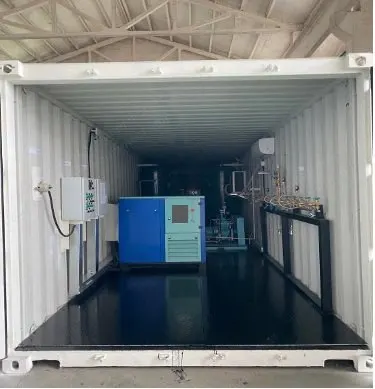

Description Overview Purity: ≥ 93% Flow rate: 100 m³/h Pressure: 200 bar automatic filling system Screw Air Compressor Dimensions: 2800 mm x 1650 mm x 1850 mm Rated exhaust capacity: 26.5 m³/min Rated discharge pressure: 0.8 MPa Interface size: DN80 Power supply voltage: 3PH/220V/60Hz Equipment weight: 3210 kg Power: 160 kW Primary Air Storage Tank Volume: 3.0 m³ Design pressure: 0.84 MPa Working pressure: 0.8 MPa Design temperature: 100 °C Import and export size: DN80 Dimensions: Φ1100 mm x 3292 mm Weight: 580 kg Includes safety valve, blowdown valve, pressure gauge, pressure vessel certificate Freeze Dryer Rated capacity: 30 m³/min Interface size: DN80 Size: 1800 mm x 1000 mm x 1360 mm Power supply voltage: 1PH/220V/60Hz Power: 8.5 kW Equipment weight: 400 kg Dew point: 2 to 10 °C Stage Filter Group Treatment capacity: 35 m³/min Interface size: DN80 Residual oil content: ≤ 0.003 ppm Filtration accuracy: ≤ 0.01 mm Secondary Air Storage Tank Volume: 2.0 m³ Design pressure: 0.84 MPa Working pressure: 0.8 MPa Design temperature: 100 °C Import and export size: DN80 Dimensions: Φ1000 mm x 2810 mm Weight: 420 kg Includes safety valve, blowdown valve, pressure gauge, pressure vessel certificate PSA Oxygen Generator Product name: OS102 Gas volume: 100 Nm³/h Purity: ≥ 93% Dew point: -45 °C Outlet pressure: ≥ 0.3 MPa Interface size: DN80 Power supply voltage: 1PH/220V/60Hz Power: 0.2 kW Dimensions: 2800 mm x 1900 mm x 2500 mm Equipment weight: 4500 kg Oxygen Tank Volume: 2.0 m³ Design pressure: 0.84 MPa Working pressure: 0.8 MPa Design temperature: 100 °C Import and export size: DN80 Dimensions: Φ1000 mm x 2810 mm Weight: 420 kg Includes safety valve, blowdown valve, pressure gauge, pressure vessel certificate Oxygen Booster Flow rate: 50 m³ Intake pressure: 4 bar Discharge pressure: 200 bar Intake air temperature: ≤ 35 °C Exhaust temperature: ≤ 80 °C Dimensions: 1250 mm x 900 mm x 1250 mm Cooling mode: air cooling Motor power: 18.5 kW Power supply voltage: 3PH/220V/60Hz Weight: 1200 kg Filling row: 1 x 10 (10 bottles at a time) Technical Index of Terminal Product Gas Product gas: oxygen (OS102) Gas production capacity: 50 Nm³/h Oxygen purity: 93% Oxygen recovery rate: ≥ 40% Oxygen dew point: ≤ -45 °C Operation mode: automatic unattended control Detection method of oxygen content: on line detection The device has capacity expansion capacity: 10% design margin Flexibility of system operation: adjustable within the rated range Valves: screw type Design pressure: 0.8 MPa System operating pressure: ≤ 5 bar (adjustable according to customer's site requirements) Filling pressure: 200 bar System pressure loss: ≤ 5% (pressure loss at inlet and outlet) System design service life: 10 to 15 years Explosion proof requirements for system design: non-explosion proof design The degree of automation of system design is as follows: automatic unattended System Utility Requirements Screw compressor: 3PH, 220V, 60Hz, 160 kW Freeze dryer: 1PH, 220V, 60Hz, 8.5 kW Oxygen generator: 1PH, 220V, 60Hz, 0.2 kW Oxygen booster: 3PH, 220V, 60Hz, 37 kW Total power: 205.7 kW No water required
