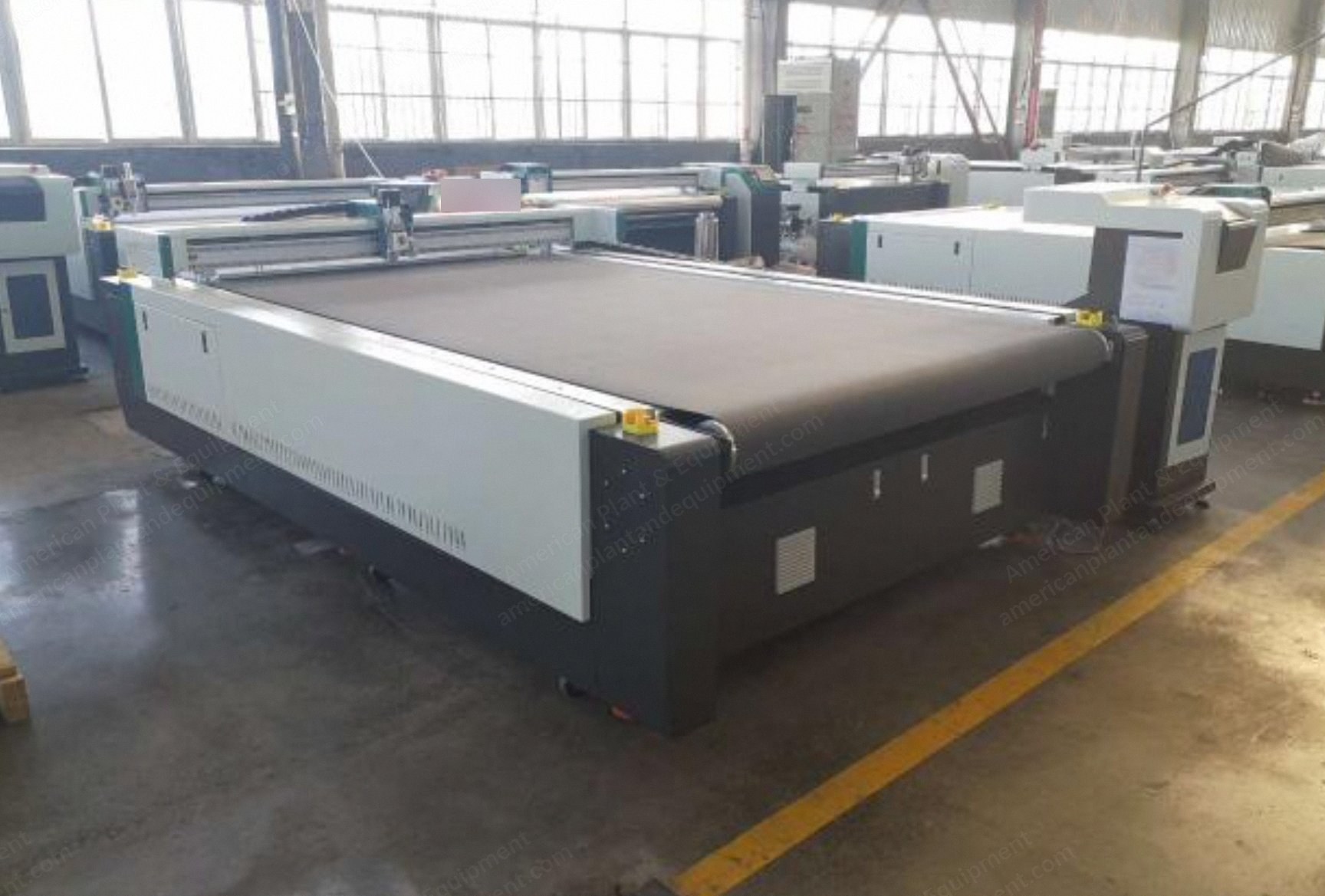

NovaStar, DN147, CNC Digital Fabric Cutter, Working Area 2100x2500mm, 9kW, Auto Feeding Vacuum Table (New)

NovaStar, DN147, CNC Digital Fabric Cutter, Working Area 2100x2500mm, 9kW, Auto Feeding Vacuum Table

Description

  1. Overview
    1. Auto feeding vacuum table
    2. Multifunctional head: one knife holder
    3. Tool configuration: round knife tool
    4. Safety device: using infrared sensors, responsive, safe and reliable
    5. Instruction system: HP-GL compatible format
    6. Display mode: English, LCD
    7. Data transmission method: Ethernet
    8. Buffer capacity: 2GB
  2. Specifications
    1. Rated power: 9kW
    2. Working area (length x width): 2100 x 2500mm
    3. Translational velocity: 800 to 1200 mm per second
    4. Cutting speed: 200 to 1000mm per second (according to different cutting materials)
    5. Cutting thickness: ≤5mm (according to different cutting materials)
    6. Cutting materials: fabric, cotton, garment, textile, clothing etc.
    7. Voltage: 480V±10%
    8. Repeated positioning accuracy: maximum 0.01mm
    9. Mechanical precision: maximum 0.02mm
    10. Machine dimensions: 3600 x 2800 x 1221mm
  3. Transmission And Drive System
    1. Transmission system: imported (digital servo motor, linear guide, synchronous belt)
    2. Drive system: belt transmission, AC servo motor, linear guide rail
    3. Other configuration: Panasonic servo motor, Germany imported conveyor belt, vacuum table, Taiwan PMI rail, 7.5kW vacuum pump
  4. Material Fixing And Vacuum System
    1. Material fixing method: high power 7.5kW vacuum absorption and intellectual partition
    2. Vacuum suction system: incorporated eight-zone absorption, fixed material is ensured to the greatest extent

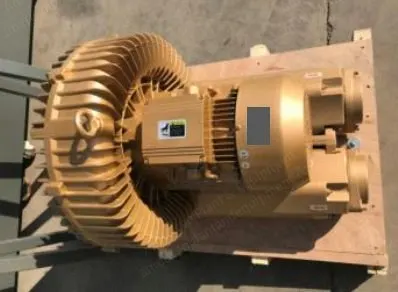

    3. Vacuum pump: 7.5kW saving power vacuum pump, strong absorption capacity and saving the power
  5. Operating And Control Features
    1. Operating mode: operation platform + data output control software (operation platform can be divided into connected and separated parts)
    2. Touch screen: convenient and sensitive, multiple languages to choose from
    3. New independent control cabinet: easy to detect and repair; easy to move
    4. Time-delay relay: implement delayed start, buffer transient voltage
  6. Machine Parts

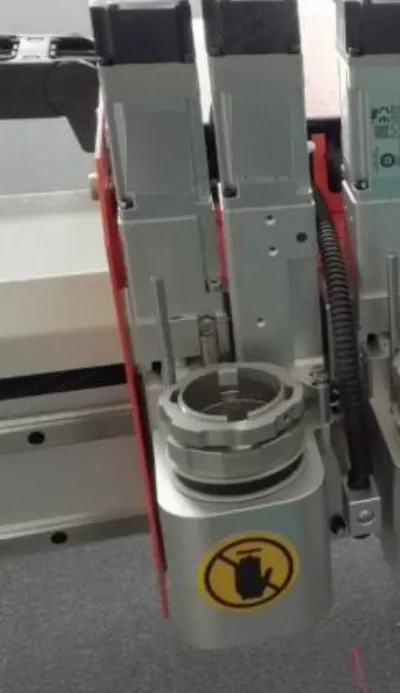

    1. One knife holder and one round knife tool; high precision, long service life
    2. Motors: Japan Panasonic servo motors and drivers
    3. Felt: imported from Netherlands, 4mm thickness, more stronger
    4. Guide: select Taiwan PMI linear guide, to ensure high cutting accuracy, fast cutting speed
    5. Belt: Italy Megaoyne belt, long service life and more precise cutting
  7. Safety Devices
    1. Incorporated infrared sensor and emergency stop devices to ensure safety
  8. Tool Specifications
    1. Knife tool holder

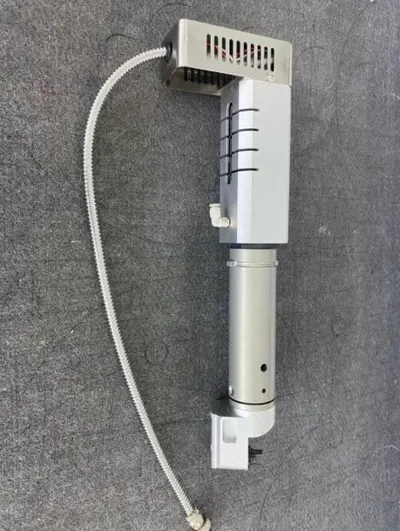

    2. Round knife tool
    3. Feeding shelf for free
  9. Machine Packing
    1. Machine packing included
