NovaStar, MM162, PP Monofilament Production Line, 75mm Screw, 80 kg/h Capacity (New)

NovaStar, MM162, PP Monofilament Production Line, 75mm Screw, 80 kg/h Capacity

Description

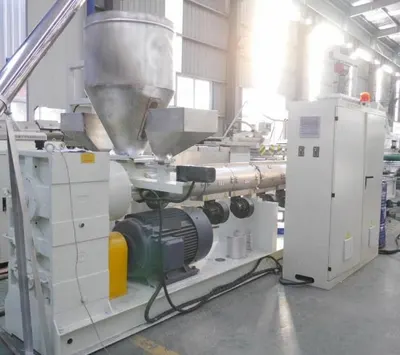

  1. Uploading System And Dry Hopper
    1. Motor power: 1.1 kW
    2. Dry capacity: 120 kg/h

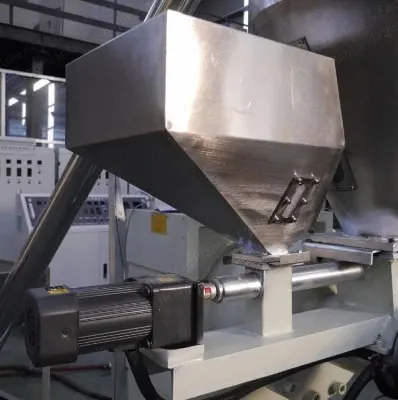

  2. Side Dosing Unit
    1. Used to feed the color master-batch
    2. Motor power: 0.55 kW
    3. Servo motor control
  3. Automatic Hydraulic Screen Changer
    1. One plate with double position
    2. With hydraulic station
    3. Max working pressure: 16 MPa
    4. Filter precision: 120 mesh
    5. Heating power: 6 kW

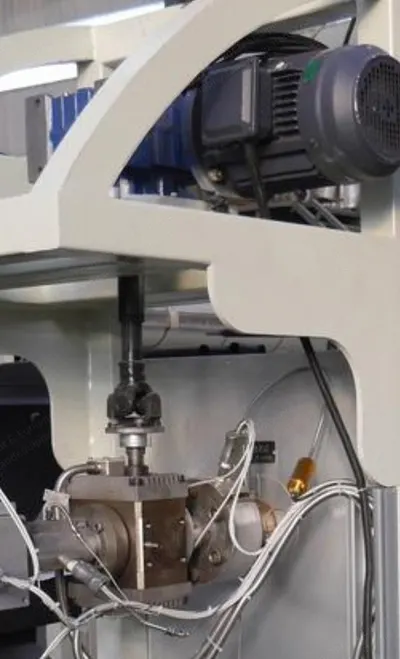

  4. Melt Pump
    1. Specially designed for PP material, used to control the pressure during the extrusion
    2. Ensures the quantity and the speed of raw material is controlled and stabilized
    3. With pressure sensors
    4. Installed heating power: 4 kW
    5. Motor power: 3 kW

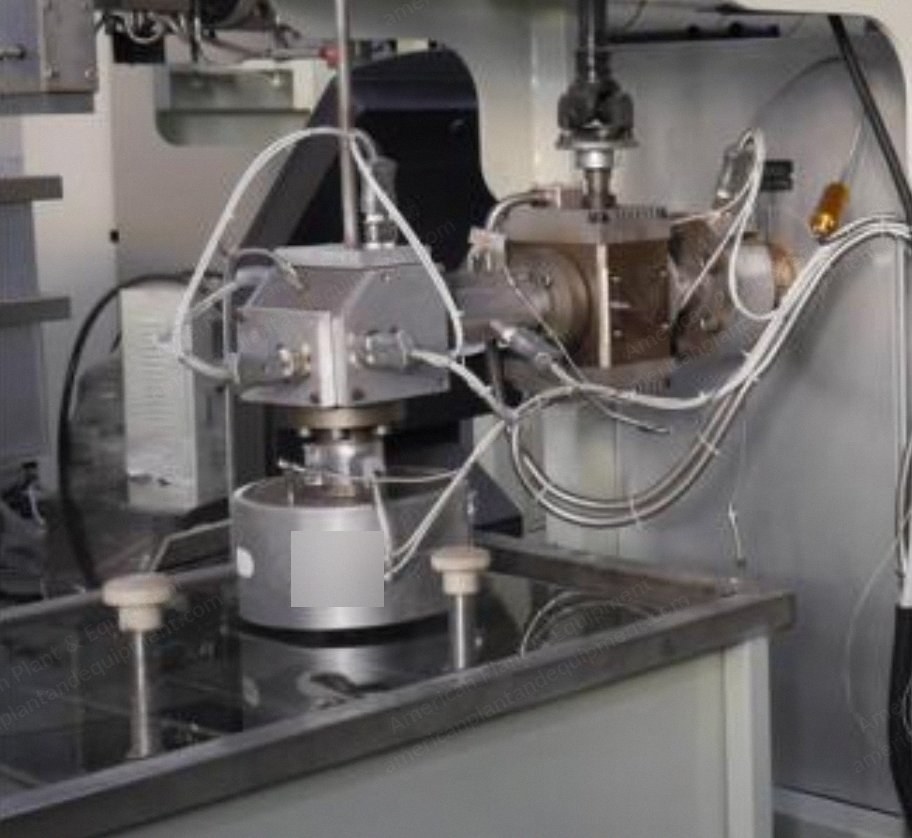

  5. Die Head
    1. Made by high quality material of die steel; compact appearance and simple to change
    2. Including connector, flow plate, o-ring, filter net, spinnerate, etc.
    3. Monofilament size: 0.2 to 1 mm
    4. Heating power: 3.5 kW
    5. Heating mode: stainless steel mica slice heating ring
  6. Water Tank Cooling System
    1. Including sink lift system, monofilament guiding system, water over-flowing and auto-feeding system, and water drying system
    2. Can move up and down, backward and forward
    3. Distributing roller: stainless steel, L type, and adjustable in same one side
    4. Tank size: L x W = 1500 x 600 mm
    5. Water drying power: 2.2 kW
    6. All parts contact with water are made of 304 stainless steel
  7. The First Seven Rollers Haul-Off
    1. Used to tract the monofilament
    2. Consists of monitor, speed reducer, ABB inverter, 7 steel pulling-rollers, and transmission gears
    3. Using helical gearing which can reduce the noise to the minimum and transmit the raw material efficiently
    4. All rollers are chromium plating processed
    5. With one rubber roller
    6. Gear transmission
    7. Motor power: 5.5 kW
    8. Rollers specifications: Φ320 x 500 mm
  8. Water Heating And Stretching Oven
    1. Used to heat and stretch the monofilament
    2. Consists of specific hot water tank, hot water and cold water auto-feeding system, hot water oven, monofilament guiding system, and water drying system
    3. Steel welded frame
    4. Heating units and automatic temperature control system
    5. Cover opened or closed controlled by air
    6. High performance insulation layer
    7. Omron temperature meter
    8. Water oven with auto temperature control system: once temperature reaches the set point, it stops heating automatically; when temperature is below the set point, it heats again automatically
    9. Monofilament will be completely immersed in hot water
    10. All parts contact with water are made by 304 stainless steel
    11. Length: 4000 mm
    12. Heating power: 18 kW
    13. Heating mode: electric heating
    14. Hot water pump: 3.7 kW
    15. Water drying power: 3 kW
  9. The Second Seven Rollers Haul-Off
    1. Used to tract and stretch the monofilament
    2. Consists of monitor, speed reducer, ABB inverter, 7 steel pulling-rollers, and transmission gears
    3. Using helical gearing which can reduce the noise to the minimum and transmit the raw material efficiently
    4. All rollers are chromium plating processed
    5. With one rubber roller
    6. Gear transmission
    7. Motor power: 7.5 kW
    8. Rollers specifications: Φ320 x 500 mm
  10. Heating And Stretching Oven
    1. Used to heat and stretch the monofilament
    2. Steel welded frame
    3. Heating units and automatic temperature control system
    4. Cover opened or closed controlled by air
    5. High performance insulation layer
    6. Omron temperature meter
  11. The Third Seven Rollers Haul-Off
    1. Used to tract and stretch the monofilament
    2. Consists of monitor, speed reducer, ABB inverter, 7 steel pulling-rollers, and transmission gears
    3. Using helical gearing which can reduce the noise to the minimum and transmit the raw material efficiently
    4. All rollers are chromium plating processed
    5. With one rubber roller
    6. Gear transmission
    7. Motor power: 7.5 kW
    8. Rollers specifications: Φ320 x 500 mm

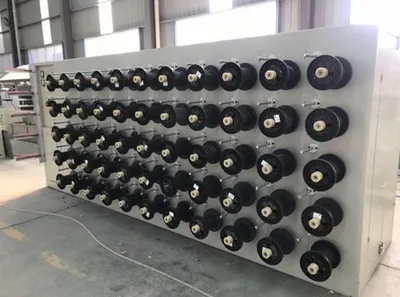

  12. Winding Machine
    1. Used for winding the monofilament

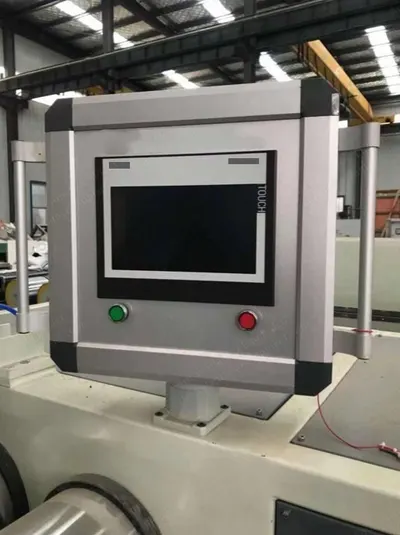

  13. Cabinet Control System
    1. Includes Siemens PLC synchronous control
