NovaStar, GK173, Automatic Bag Closing Machine, Single Needle, Photoswitch Start-Stop (New)

NovaStar, GK173, Automatic Bag Closing Machine, Single Needle, Photoswitch Start-Stop

Description

  1. Overview
    1. Automatic single needle bag closing machine for both plain and crepe-tape bound closing of all kinds of filled bags.
    2. Machine starts automatically by photoswitch actuated by the bag being fed into the machine.

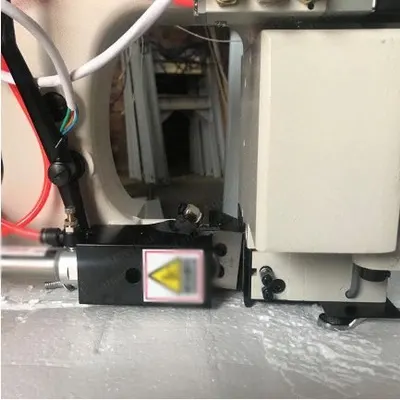

    3. Machine stops after the bag passes through, and at the same time the thread/crepe-tape is cut automatically by built-in air cylinder operated guillotine type cutter.
  2. Specifications
    1. Speed: up to 2000 rpm, depending on sewing material and operation.
    2. Stitch length: adjustable from 6.5 to 11 mm, standard setting 8 mm.
    3. Sewing thickness: 8 mm.
    4. Presser foot lift: 11 to 16 mm.
    5. Stitch type: double threads chain 401.
    6. Thread: cotton, polyester 21s/5, 21s/3.
    7. Standard needle: 80800 x 250#.
    8. Needle type: 80800c x 250#.
    9. Tape folder: adjustable for 50 to 70 mm wide tape (selected or not).
    10. Pulley diameter: 114 mm.
    11. Auto count bags number.
  3. Dimensions And Weight
    1. Net weight: about 35 kg.
    2. Dimension: 500 mm x 500 mm x 330 mm.
  4. Operation
    1. Start-stop: automatically by photoswitch.
    2. Thread chain cutter: automatically by air cylinder operated guillotine type cutter.
