NovaStar Bed Sheets Production Line, BW191, New, 4 Pieces per Minute, 35 kW (New)

NovaStar Bed Sheets Production Line, BW191, New, 4 Pieces per Minute, 35 kW

Description

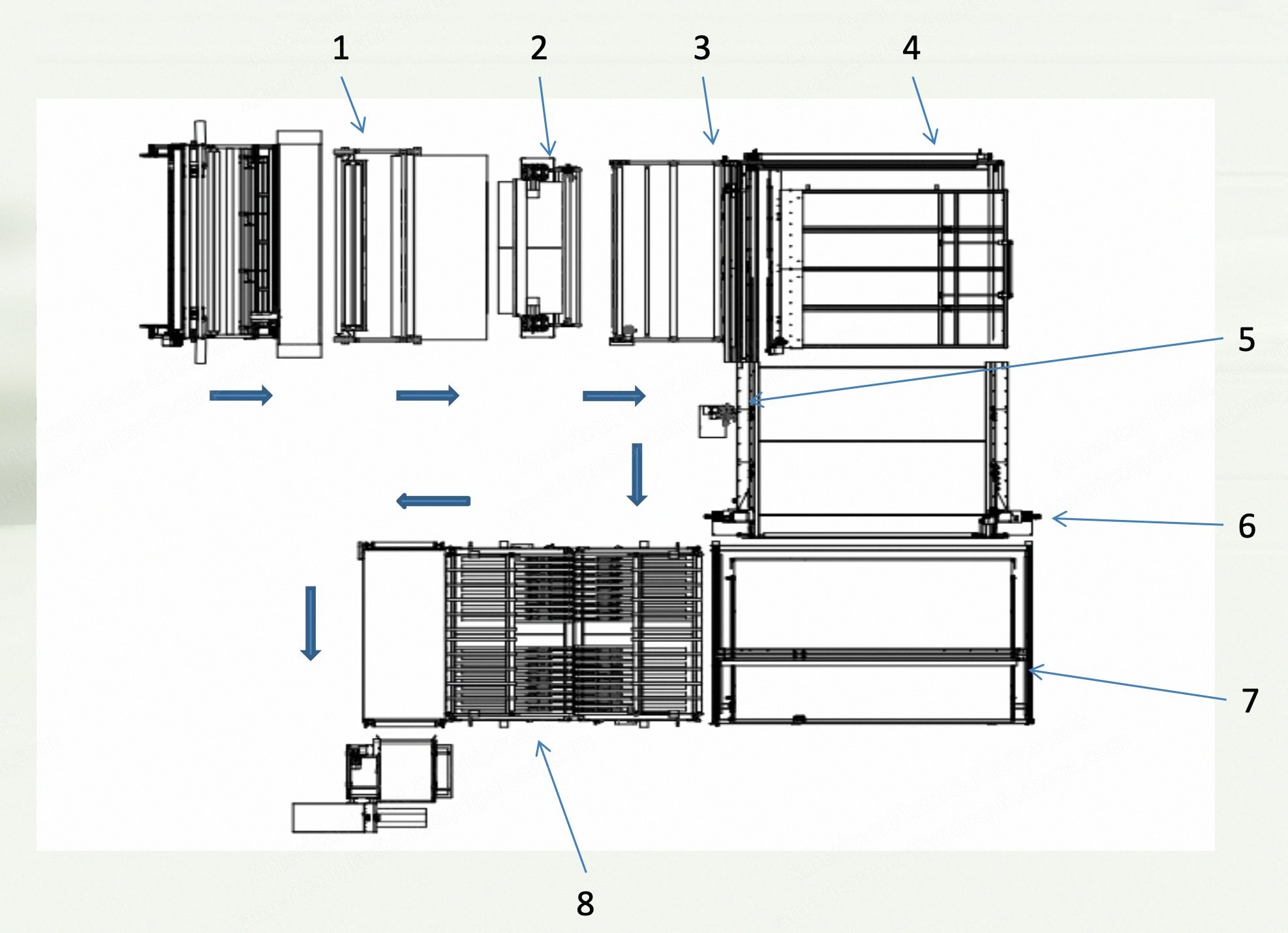

  1. Introduction
    1. Feeding mechanism: used to place the fabric area, which includes cloth splicing device and edge-aligning device.
    2. Longitudinal sewing mechanism: used for longitudinal sewing of bed sheets, including hemming device; the stroke of the machine heads on both sides is adjustable.
    3. Material storage mechanism: used to store materials between longitudinal sewing and fixed-length cutting.
    4. Fixed-length cutting mechanism: used for the fixed-length cutting of bed sheets; the cutting length can be adjusted and compensated.
    5. Labeling device: used for label production; in the pre-order process, the labeling device will prepare the label in advance and transport it to the horizontal sewing place when needed.
    6. Horizontal sewing device: used for sewing on both sides of the bed sheet; the spacing of the machine heads on both sides can be adjusted, including hemming device and upper and lower conveyor belt device.
    7. Transfer conveying platform: used to convey the sewn sheets to the folding mechanism.
    8. Folding mechanism: used to automatically fold sheets.
  2. Process Flow
    1. Process flow diagram available.
  3. Parameters
    1. Floorspace size: length, width and height are about 15 meters x 13 meters x 2.5 meters.
    2. Total power of equipment: about 35 kW.
    3. Air pressure: 0.6 to 0.8 MPa.
    4. Capacity: about 3 to 4 pieces per minute.
    5. The equipment is mainly servo controlled.
    6. The equipment has the function of disconnection detection and shutdown.
    7. The equipment is equipped with a multi-function operation screen to facilitate man-machine operation.
