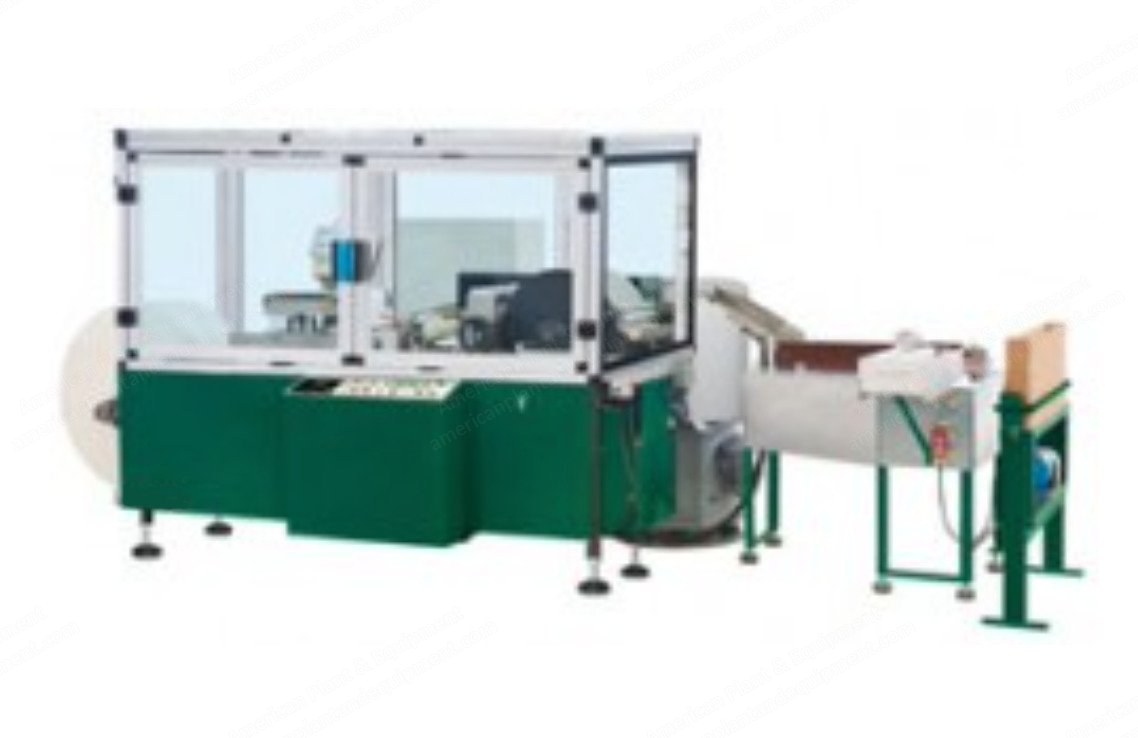

NovaStar, BC09, Paper Sticks Manufacturing Machine, 3000 pcs/min, 13 kW

NovaStar, BC09, Paper Sticks Manufacturing Machine, 3000 pcs/min, 13 kW

Description

  1. Overview
    1. Automatic production machine for paper sticks
    2. Capable of producing sticks of different diameters and different lengths
    3. Packaging of the product is semi-automatic in cardboard and metal boxes
    4. Paper used can be white, coloured or printed with decorations or even with customized logo
    5. Sticks produced are used in the healthcare and cosmetic industry for manufacturing ear-cleaning and cosmetic swabs, in the medical industry for manufacturing medical applicators, in the confectionery industry for manufacturing lollipops, sucker sticks, party sticks
  2. Production Capacity
    1. 3000 pieces per minute for diameter 2.5 mm, length 73 mm
  3. Stick Dimensions
    1. Diameter from 2.0 to 3.5 mm with lengths from 68 to 80 mm
    2. Diameter from 3.6 to 6.0 mm with lengths from 81 to 305 mm
  4. Paper Reel Dimensions
    1. Maximum width 300 mm, diameter 1300 mm (width can be increased on request)
  5. Machine Dimensions and Weight
    1. Dimensions: 4050 mm wide x 1760 mm deep x 1670 mm high
    2. Weight: 1300 kg
  6. Electrical Specifications
    1. Electric power supply (voltage) as per customer
    2. Installed power: 13 kW
  7. Compressed Air
    1. No compressed air is required
  8. Number of Operators
    1. One operator; if automatic packaging is used, one operator is sufficient for two machines
  9. Description of Operation
    1. Reel-holder unit: made out of a hoist, a reel fixing system and a paper braking/tensioning unit; its function is to feed the machine regularly
    2. Automatic paper alignment device: guarantees perfect and constant positioning of the paper with respect to the machine axis
    3. Stressing bar: the function of this bar is to render the fibres of the material less consistent so that they wind more easily around each other
    4. Feeding and cross-cut station: made out of four rollers, a set of gears and a cutting blade; thanks to this unit, the reel of paper is fed and cut to size
    5. Winding and longitudinal-cut station: a rotating drum, a jaw and a set of blades make up this station in which the stick is formed
    6. Moistening and bonding system: before they leave the winding station, the sticks are moistened by water so as to permit bonding; no need for glue
    7. Extraction bar: facilitates the detachment of the sticks from the drum
    8. Drying unit: ensures perfect drying of the product
    9. Double ordered orientation station: composed of a series of toothed belts, this transfers the sticks in an orderly manner to the packaging unit
    10. Vibrating box holder for packaging: this is an aid for the manual filling of the boxes
  10. Operating and Control Devices
    1. Reel hoist control
    2. Winding jaw closure control
    3. Water flow rate adjustment
    4. Paper feed speed control
    5. Product feed speed control
    6. Drying temperature regulation
    7. Reel empty control
    8. Paper blockage control
  11. Accessories and Options
    1. Specific formats
    2. Automatic packaging unit
    3. Structure in stainless steel or in a different colour
    4. Remote diagnosis by modem (tele-servicing)
    5. Customized features
