NovaStar, BW192, High Speed, 2500 rpm, Double-Line Chain Trace (New)

NovaStar, BW192, High Speed, 2500 rpm, Double-Line Chain Trace

Description

  1. Bag Closing Machine Head

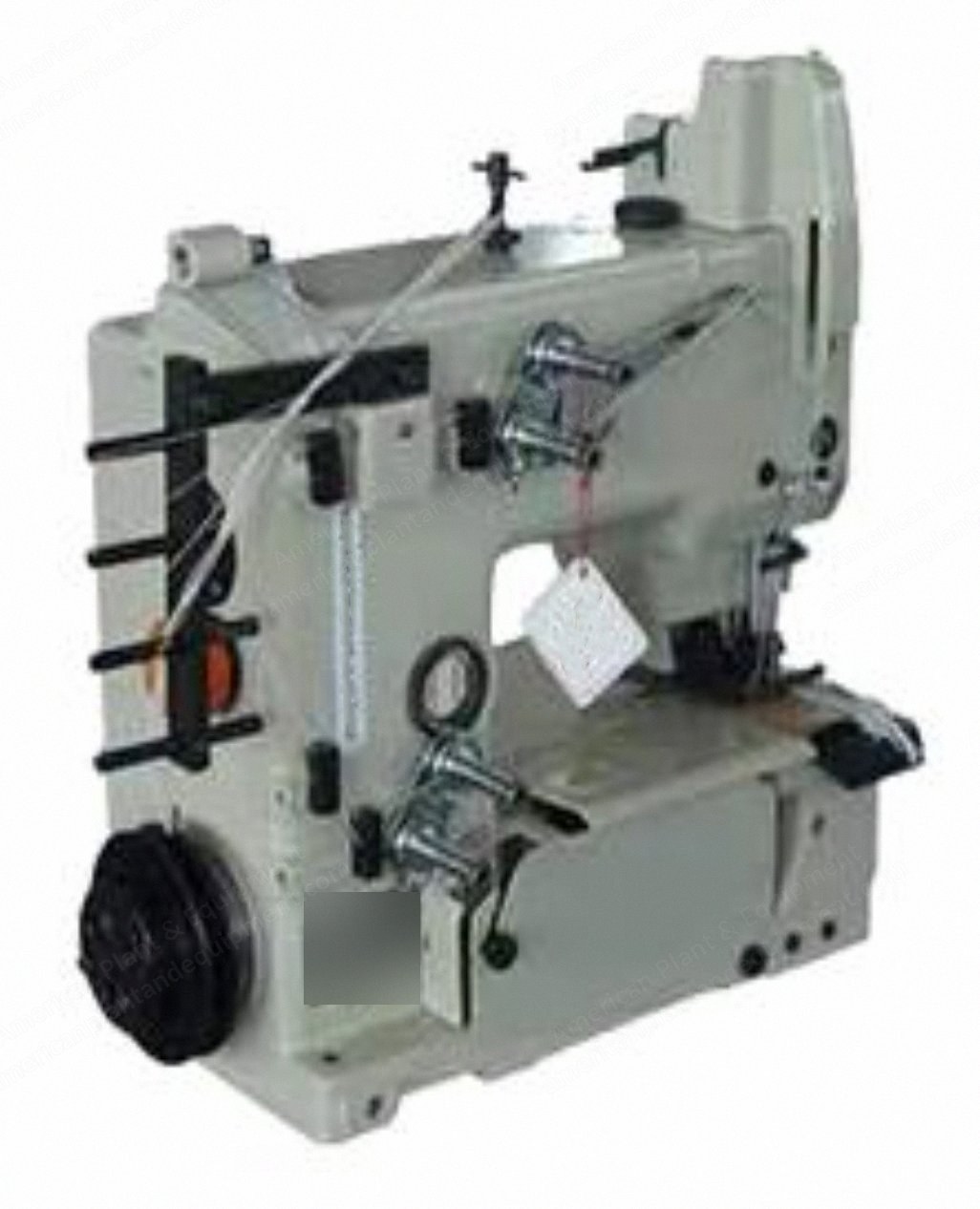

    1. Model BW192 high speed sewing machine: top speed 2,500 rpm, stitch type double-line chain trace, stitch distance 7 to 10.5 mm, scope of application includes paper-plastic composite bags, color printing bags, film bags, paper bags, three-in-one bags, cement bags, lining bags, etc., slit capacity 6-layer paper bag with edge paper, scissors fully automatic, needle type DR-H30 #26, oil supply system automatic fuel supply, weight 41.0 kg.
    2. Model GK35-2C bag closing machine: speed (max.) 2,000 rpm, sewing thickness 8 mm, stitch length 6.5 to 11 mm, stitch type double threads chain 401, thread cotton and polyester, presser foot lift 11 to 16 mm, needle type 80800×250#, pulley diameter φ 114 mm, thread chain cutter by continuously driven nibbler knives, motor power 370 W, net weight 32 kg, package 50 cm x 50 cm x 35 cm.
    3. Model GK35-6A automatic bag closing machine: speed (max.) 2,000 rpm, sewing thickness 8 mm, stitch length 6.5 to 11 mm, presser foot lift 11 to 16 mm, stitch type double threads chain 401, thread cotton and polyester 21s/5 and 21s/3, needle type 80800c×250#, pulley diameter φ 114 mm, net weight about 35 kg, dimension 50 cm x 50 cm x 33 cm.
    4. Model GK35-8/8A double needles sewing machine: speed (max.) 2,000 rpm, sewing thickness 8 mm, stitch length 6.5 to 11 mm, needles distance 6 mm, stitch type double threads chain 401, thread cotton and polyester 21s/5 and 21s/3, presser foot lift 11 to 16 mm, needle type DN*2#, pulley diameter φ 114 mm, power 370 W, weight 35 kg, dimension 50 cm x 50 cm x 35 cm.
    5. Model GK35-2CS/6AS extra heavy duty bag closing machine: speed (max.) 2,000 rpm, sewing thickness 10 mm, stitch length 8 to 15 mm, presser foot lift 0 to 16 mm, stitch type double threads chain 401, thread cotton and polyester 21s/5 and 21s/3, needle type 80800c×200#-250#, pulley diameter φ 114 mm, net weight about 35 kg, dimension 50 cm x 50 cm x 33 cm.
    6. Model DS-9C high speed sewing machine: speed (max.) 2,700 rpm, sewing thickness 8 mm, stitch length 7 to 11.5 mm, stitch type double threads chain 401, thread cotton and polyester, needle type DR-H30#26, net weight 45 kg, thread cutting tape/threads auto cutting.
    7. Model GK68-6 light type sewing machine: start-stop actuated by foot switch of column, thread chain cutter by continuously driven nibbler knives, standard needle 92 x 230#, stitch length adjustable from 6 to 12 mm (standard setting 8 mm), speed up to 1,500 rpm depending on sewing material and operation, net weight 21 kg, as our standard bag closers do not include any electric components they can be installed in ex-proof locations.
    8. Model GK2006 portable bag closer: speed (max.) 1,500 to 1,800 rpm, sewing thickness 6 to 10 mm, stitch length 6 to 9 mm, stitch type double/single threads chain 401, needle type 200/25#, thread cotton and polyester 21s/5 and 21s/3, power 220 V, net weight 4 kg, motor 90 W.
    9. Model GK9-2 portable bag closer: speed 800 rpm, sewing thickness 8 mm, stitch length 7.5 to 8.5 mm, stitch type single threads chain 101, needle type 26#, thread cotton and polyester 21s/5 and 21s/3, power 220 V, net weight 5.5 kg, motor 90 W.
    10. Model GK26-1A portable bag closer: voltage 220/50 or 110/60 V/Hz, stitch length ≥ 6.5 mm, needle type no. 25, thread spec. 20 6 to 9 strand vinylon yarn, speed 1,250 rpm, size (l×w×h) 235×245×295 mm, weight 5.5 kg.
    11. Model GK9-600 portable bag closer: motor power 115 W, rotor model 1,500 to 1,700 rpm, max stitch range 6.5 to 8.5 mm, material thickness range 4 to 6 mm, needle model 25-200, size (l×w×h) 250×80×240 mm, weight 4.5 kg.
  2. Bag Convey-Closing System

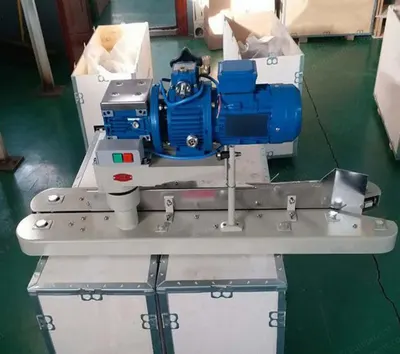

    1. Model LFS series bag convey-closing unit: weight of the bags 10 to 100 kg, height of bags 400 to 900 mm, conveyor speed 6 to 12 m/min (240 to 600 bags/h), conveyor length 2.0 m (LFS2000), 2.5 m (LFS2500), or 3.0 m (LFS3000) or longer, width 40 cm, motor 0.55 kW for conveyor and 0.37 kW for sewing head, thread cutting and start-stop styles depend on sewing head selected.
    2. Model LFS bags convey-infeed-closing unit: speed 6 to 12 m/min (240 to 600 bags/h), weight of the bags 10 to 100 kg, height of bags 400 to 900 mm, bag top folding depth 30 to 60 mm, start-stop automatically by photoswitch, thread chain cutter automatically by air cylinder operated guillotine type cutter, stitch length adjustable from 6.5 to 11 mm (standard setting 8 mm), standard needle 80800×250#.
    3. Model LFS bags convey-trim-infeed-closing unit: speed 6 to 12 m/min (240 to 600 bags/h), weight of the bags 10 to 100 kg, height of bags 400 to 900 mm, start-stop automatically by photoswitch, tape width adjustable for 50 to 70 mm, thread chain cutter automatically by air cylinder operated guillotine type cutter, stitch length adjustable from 6.5 to 11 mm (standard setting 8 mm), conveyor width 400 mm.
    4. Model HDQG-4 automatic label dispenser: output up to 20 labels/min, dimensions of labels min height 80 mm and max height 135 mm, min width 40 mm and max width 60 mm, capacity of label magazine up to 300 pcs (depending on label thickness), installation of label dispenser in front the conveyor, voltage 220 V single phase, air supply compressed air 6 bar, operating height 500 mm minimum and 1,700 mm maximum, other operating heights upon special request, size of label dispenser 709 x 267 x 519 mm.
    5. Model B2 filled bag closing machine: speed 200 to 300 bags/h, dimensions 1,180 x 830 x 2,200 mm, power supply 370 W, stitching height 400 to 900 mm, weight 150 kg, bags made of any type of material can be stitched, suggested model B2 (GK68-6) or B2 (GK35-2C).
    6. Model ZB4900(SS) bags feed-in device: folding width 35 to 50 mm, feeding speed 7 to 18 m/min, folding thickness 4 layers, power.
