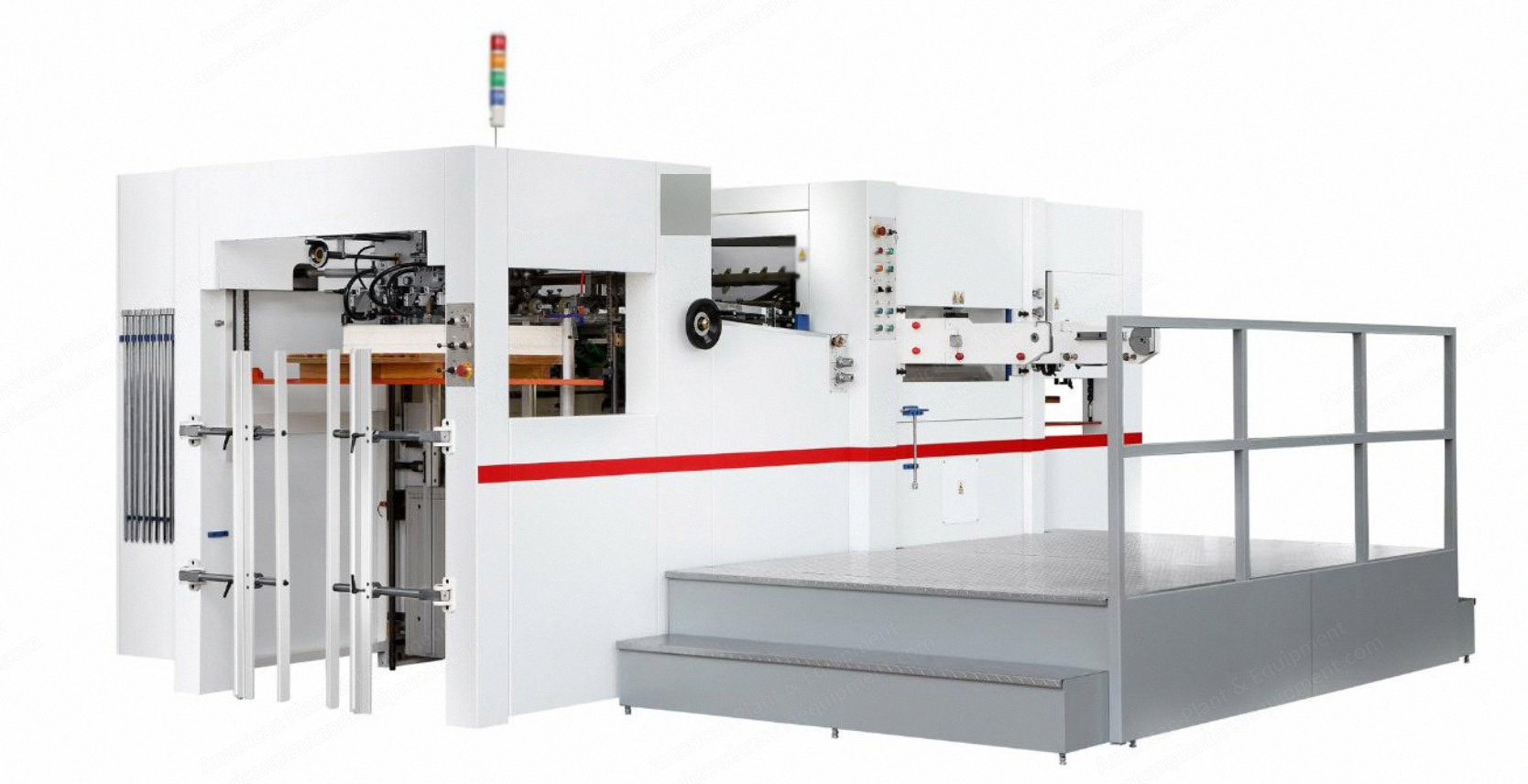

NovaStar, DT182, Sheet Size 1050x750mm, 7500 Sheets Per Hour (New)

NovaStar, DT182, Sheet Size 1050x750mm, 7500 Sheets Per Hour

Description

  1. Overview
    1. Incorporates advanced pneumatic and servo driving processing technology from abroad.
    2. Assembled under strict quality control for simple operation and safe, reliable performance.
    3. Capable of creasing and die cutting after printing products such as paper above 80 gsm, cardboard, corrugated paper below 4 mm, pasting paper, laminating paper, and more.
    4. Good quality and design ensure stable and safe operation at speeds up to 7,500 sheets per hour.

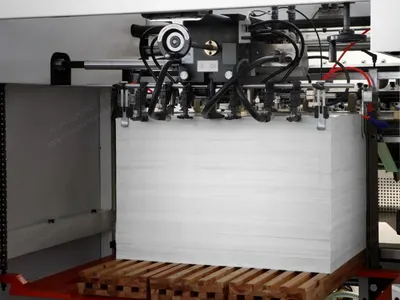

  2. Feeder / Feeding Section
    1. Improved stacker preparatory stage design allows use of prepared car sheet piling or ordinary hydraulic car sheet piling for direct stacking.
    2. Equipped with four suction nozzles and four sending nozzles for smooth feed.
    3. Incorporates an imported screw air-blowing device for smooth sheet delivery.

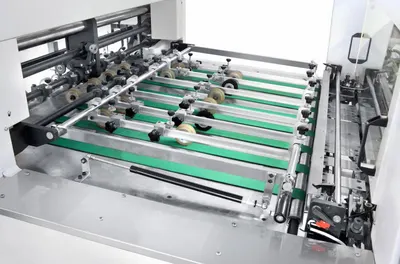

  3. Feeding Positioning Section
    1. Incline-type paper moving table top is suitable for high-speed thin paper and precise location.
    2. Side location includes a dual-purpose side device with pull guide and push guide, selectable based on paper type for easier switching.
    3. Front rise position arrival reduction of speed device benefits thin paper location.

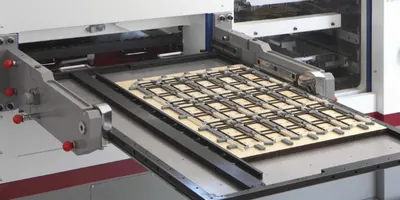

  4. Die Cutting Section
    1. Driving gear ensures high-speed die cutting performance.
    2. Pneumatic locking mechanism and air clutch are fast and stable.
    3. Die cutting frame prevents the die cutting plate from drooping or separating effectively.
  5. Delivery Section
    1. Delivery section designed for efficient output of processed sheets.
  6. Specifications
    1. Dimensions: 1050x750mm sheet size
