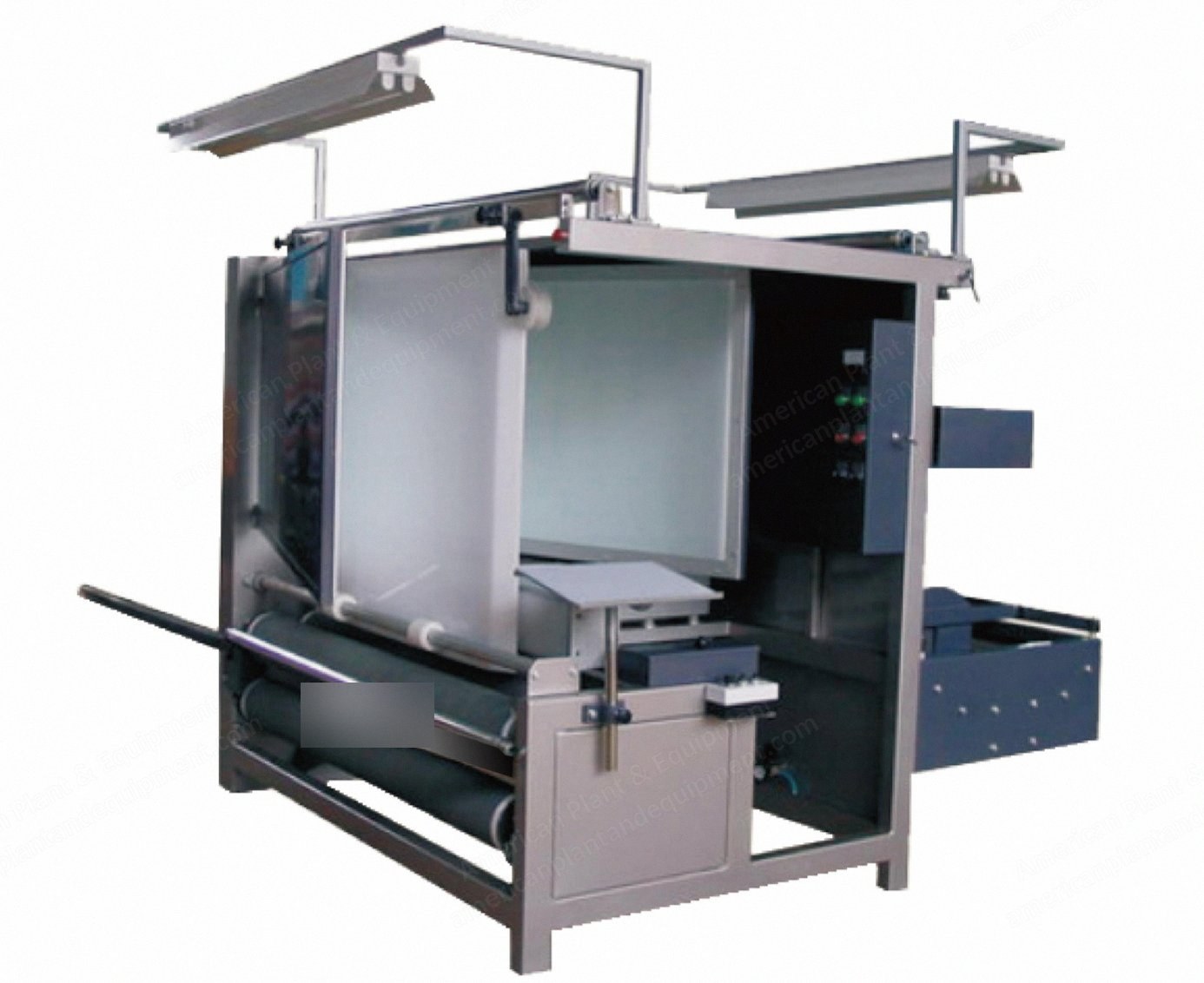

NovaStar, TL170, Tubular Fabric Inspection Machine, 56 Inch Maximum Fabric Width, 0-40 m/min, 220V (New)

NovaStar, TL170, Tubular Fabric Inspection Machine, 56 Inch Maximum Fabric Width, 0-40 m/min, 220V

Description

  1. Overview
    1. Wrapping fabric delivering device provides a convenient and tensionless way to handle the fabric roll.
    2. Tension is adjustable by the tension control device.
    3. Equipped with inspection reflector (mirror), 650 mm wide by 1200 mm length.
    4. Magnetic floating style light box.
    5. Including fabric rollup.
    6. Variable speed gear motor, speed adjusts by frequency control.
    7. Equipped with control cabinet.
    8. Equipped with wireless high frequency lit device.
    9. Foot pedal control.
    10. Additional options: functional fabric shaking device.
    11. One main gear motor, reduction 1:15, 370 watts.
    12. Voltage choices: 220 volts single-phase or 220 volts 3-phase (specify upon order).
  2. Technical Parameters
    1. Maximum work area of light box: 56 inches by 56 inches.
    2. Light box size: as per customer from 24 inches to 56 inches.
    3. Maximum fabric rolling diameter: 500 mm.
    4. Speed: 0 to 40 meters per minute.
    5. Size: 1700 mm (length) x 1950 mm (width) x 1660 mm (height).
    6. Weight: 750 kg.
  3. Spare Parts Included
    1. Roller tape: 50 meters.
    2. Light tubes: 2 pieces.
    3. Button: 3 pieces.
    4. Light box: 1 piece.
