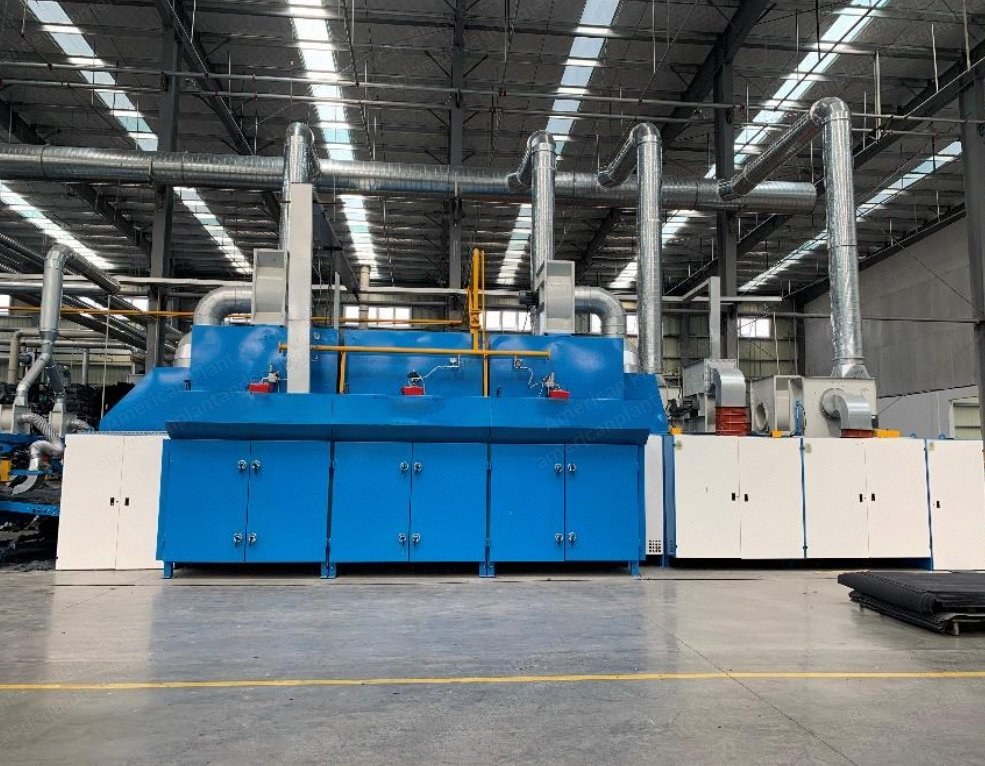

Double belt oven with cooling part: 3 heating chambers and 2 cooling chambers.
This machine completes the web bonding and finishing system, which is part of a complete nonwoven process.
Normally follows the side cutting and suction immediately after with cutting section.
The web airlaid/cross lapped and cutting and suction unit is fed into this machine, which is preliminary bonded.
It melts the low melt fiber thoroughly and thermal bonds the fiber into felt, then feeds into the finish section.
Heat flow can be adjusted in all chambers to ensure the right amount of heat flows deep inside the fabric.
The web is clamped into the heating room through a Teflon belt according to the set spacing, and dried through hot air, which plays a role in setting and solidifying the fabric.
Technical Specifications
Working width: 2500 mm.
GSM (g/m²): 300 to 4000.
Speed: 2 to 10 meters per minute.
Heating chambers: 2000 mm x 3 chambers.
Conveyor: Teflon.
Cooling chamber: 2000 mm x 2 chambers.
Gas consumption (m³ per hour): 15 to 25.
Heating method: gas.
Cooling way: by air.
Advantages
Gas consumption: 25 to 35 cubic meters.
Density range: 100 to 5000 gsm.
Heat circulation: direction of heat can be changed as per the requirement of product.
Maintenance: ease of cleaning the heating chambers.
Included
Cooling part of oven.
Diagram of the oven.
Picture of the machine.
Finished product.
