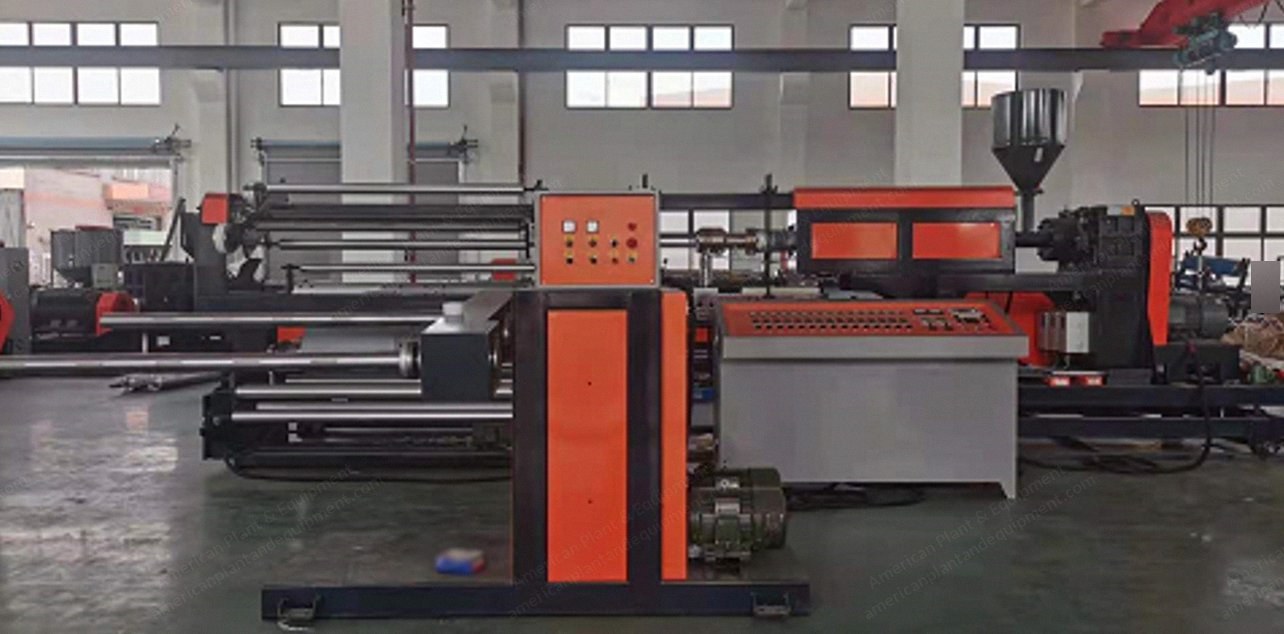

NovaStar, LC164, Lamination Machine, 2200mm Max Film Width, 110kW (New)

NovaStar, LC164, Lamination Machine, 2200mm Max Film Width, 110kW

Description

  1. Main Technical Parameters
    1. Coating resin: LLDPE, HDPE, LDPE, EVA, EAA and other coating grade.
    2. Laminating materials: can be used to laminate pearl cotton, PU, EVA, XPE foam sheet, sponge and other plastic sheets with plastic film, kraft paper, aluminum film, non-woven fabric, geotextile, woven bag and other materials.
    3. Mechanical design speed: 60 to 120 m/min
    4. Production speed: 30 to 120 m/min
    5. Maximum film width: 2200 mm
    6. Film thickness: 0.01 to 0.06 mm
    7. Maximum output: 100 kg/h
    8. Roll width: 2350 mm
    9. Total power: about 110 kW
    10. Maximum diameter of main unwinding: 1200 mm
    11. Maximum diameter of auxiliary unwinding: 500 mm
    12. Maximum diameter of rewinding: 1200 mm
    13. Substract core inside diameter: 76 mm
    14. A set of trimming and slitting device
    15. Dimensions: 11300 x 8500 x 3000 mm
  2. Equipment Composition

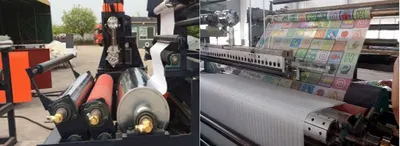

    1. Unwinding device: double-station unwinding rack (with hydraulic edge correction device) – 1 set; the unwinding of semi automatic connection device – 1 set
    2. Rewinding device: electric rotary double-position winding frame – 1 pc; torque motor 200 kg – 2 pcs; geared motor (0.75 kW) – 1 pc; reducer – 1 pc; pneumatic receiving rod – 2 pcs; rewinding control electric box – 1 set
    3. Film releasing device: magnetic powder brake device – 2 sets; automatic turning device – 1 set; air shaft – 2 pcs; feeding aluminum roller – 2 pcs
    4. Bonding machine: all the cooling roller below use the special cooling design in the roller, it is bilateral circulated cooling style, the cost fee is far more than simple cooling model; embossing roller 500 x 2350 mm (pattern according to customers’ requirements) – 1 pc (this roll is of very good quality, the embossing grid is very clear); silicone rubber 240 x 2350 mm – 1 pc; auxiliary cooling roller 240 x 2350 mm – 1 pc; expanding roller 2350 mm – 1 pc; drive motor 3.7 kW – 1 set; motor inverter 3.7 kW – 1 set

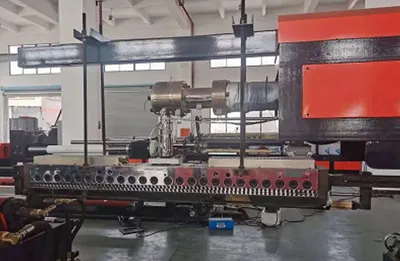

    5. Extrusion machine: die width 2400 mm – 1 pc; screw diameter 90 mm, L:D 32:1; main motor 37 kW – 1 set; motor inverter 37 kW – 1 pc; hard gear box – 1 set; auto-loader – 1 set; barrel heater – 6 units; filter joint heater area – 1 unit; die heating – 6 units; extruder movable gear motor 1.1 kW – 1 set; extruder lifting speed reducer – 1 set; extruder, die cabinet – 1 set
    6. Spare parts: heating ring – 3 pcs; heating pipe – 4 pcs; ammeter – 2 pcs; AC contactor – 2 pcs; temperature-controlled meter – 2 pcs; thermocouple – 2 pcs; selector switches – 2 pcs; movable moving hand, water pipe clamp – 1 pc; potentiometer – 2 pcs; inter hexagonal wrench – 1 set; copper blade – 1 pc
