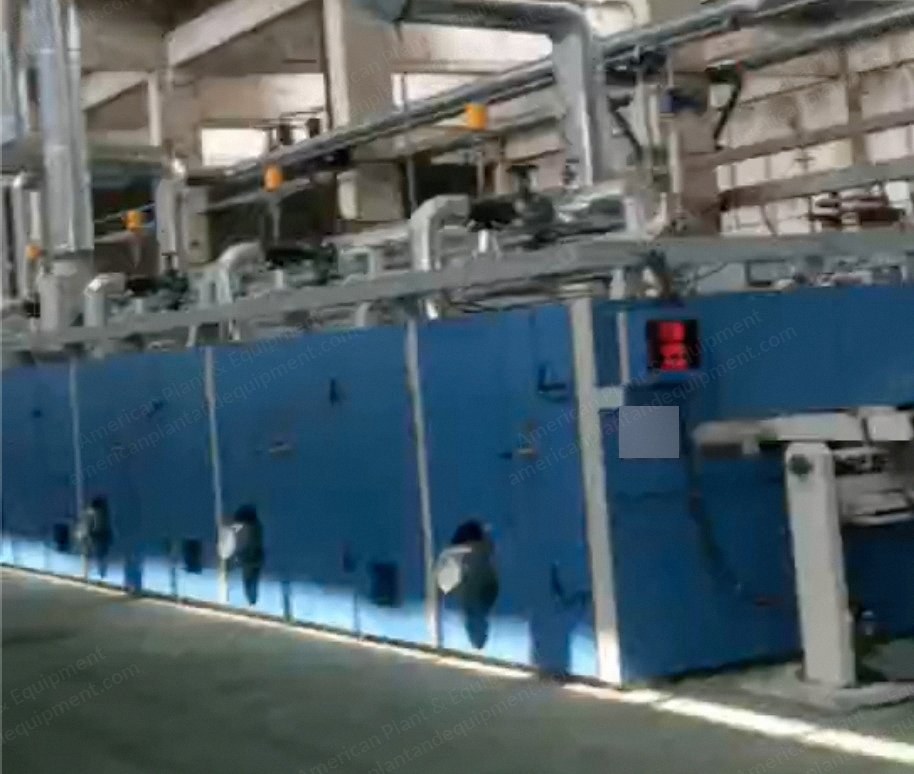

NovaStar, DG561, Stenter, Working Width 2400mm, 6 Chambers, Needle Plate Chain (New)

NovaStar, DG561, Stenter, Working Width 2400mm, 6 Chambers, Needle Plate Chain

Description

  1. Equipment Composition
    1. Cloth entrance: 1 centering device, 1 stainless steel guide roller, 1 rotary tension device, 1 low carbon steel channel steel and frame
    2. 1 four-roll disc weft straightening
    3. Two-roll re-rolling car (spheroidal graphite cast iron): 2 rollers covered with synthetic rubber, 10 tons of pneumatic pressure, pressure regulating valve, driven by 18.5 kW AC motor, equipped with gear reducer
    4. 1 stainless steel guide roller, 1 screw type opening roller, 1 cylinder tilting bucket stainless steel V-shape
    5. 2 x 500 liter chemical barrel
    6. Feeding department: 1 overfeeding roller under rubber coating, 1 3.7 kW special overfeed motor with gear reducer, 1 stainless steel guide roller, 1 screw type opening roller, 1 manual stainless steel weft trimmer
    7. Upper needle: 2 upper needle rubber coated wheel, 2 upper needle brush wheel, 2 chrome-plated support wheels, 2 0.75 kW special overfeed motor with gearbox
    8. Overfeeding department: 1 overfeeding roller covered with rubber, 1 3.7 kW special overfeed motor with gear reducer
    9. Track: 1 cast iron refueling guide rail, needle plate, needle plate seat (little sun), 1 pneumatic chain lubrication device, 1 pump oil lubrication device
    10. Other: 1 four-finger edge stripper, 1 entrance operation cabinet with color monitor (liquid crystal display), 1 digital speedometer, 1 2.2 kW AC gear motor (adjust total width), 1 0.37 kW AC gear motor (adjust entrance door width), 1 total door width/entry door width digital indicator
    11. Automatic selvage tracking system (Sunstar edge detection system): 2 rack drive mechanism, 2 0.55 kW AC motor with gearbox, 2 photoelectric probe and finger touch edge detection system
  2. Chambers (3 Meters Each)
    1. The 150 mm thick insulation board is filled with glass fiber and high-efficiency insulation materials
    2. Air curtain device of front and rear oven
    3. Air cushion floating nozzle system
    4. Hot air circulation system: efficient centrifugal fan (2 sets/box) equipped with internal thermal bearings and oil seals; special guide vanes can evenly distribute hot air; 7.5 kW 3-phase AC hot air circulation motor (2 sets/box); air door can adjust air volume of upper and lower nozzles (2 sets/box); frequency converter drives hot air circulation motor (1 set/box); hot air filter (2 sets/box)
    5. Open oven side door (2 sets/box)
    6. Specially designed high-efficiency steam radiator (2 sets/box)
    7. Active amplitude modulation
  3. Automatic Temperature Control System
    1. 10 Jinshan electric control valve
    2. 10 Japan Omron temperature control meter
  4. Exhaust Emissions
    1. Equipment comes with exhaust fan and duct interface (extension exhaust duct not included)
  5. Water Cooling Device
    1. 2 x 570 mm water-cooled drum, equipped with rotary joint and water pipe (extension water pipe not included)
    2. 1 3.7 kW AC gear motor and drive inverter
  6. Export Box
    1. 2 main drive 18.5 kW AC motor and variable frequency drive (dual drive)
    2. 2 safety device (2 limit switches)
    3. 1 0.75 kW AC gear motor (adjust width of outlet box)
    4. 1 digital indicator of total door width/outlet box door width
    5. 1 outlet roller, 3.7 kW AC gear motor and drive inverter
  7. Falling Cloth Device
    1. 1 anti-static rubber traction roller
    2. 1 traction AC motor and variable frequency drive
    3. 1 stainless steel guide roller
    4. 1 orbiting head
    5. 1 1.5 kW gear motor, driven by frequency converter
    6. 1 static elimination device
  8. Complete Main Electric Control Cabinet
    1. Complete main electric control cabinet
  9. Bearing and Bearing Seat Configuration Table
    1. In and out cloth rack guide roller: bearing brand not specified, bearing seat brand ETK
    2. Rolling car roll: bearing brand NSK (Japan), bearing seat brand not specified
    3. Lower overfeed roller: bearing brand not specified, bearing seat brand NSK (Japan)
    4. Manual weft correction: bearing brand not specified, bearing seat brand NSK (Japan)
    5. Open roll: bearing brand not specified, bearing seat brand NSK (Japan)
    6. Upper overfeeding roller: bearing brand not specified, bearing seat brand NSK (Japan)
    7. Rail drive: bearing brand NSK (Japan), bearing seat brand not specified
    8. Rail bracket: bearing brand NSK (Japan), bearing seat brand not specified
    9. Overfeeding: bearing brand not specified, bearing seat brand NSK (Japan)
  10. Specifications
    1. Capacity: 10 to 100 m/min
    2. Working width: 2400mm
