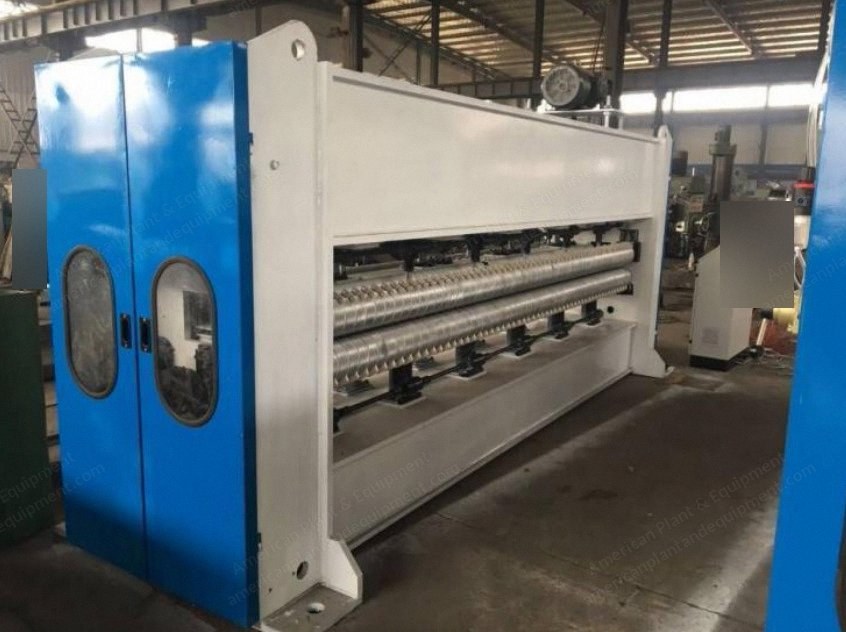

NovaStar, NN499, Working Width 2000mm, 12 kW, Needle Punching Machine (New)

NovaStar, NN499, Working Width 2000mm, 12 kW, Needle Punching Machine

Description

  1. Overview
    1. The needling machine is mainly used in the production line of nonwoven products, which is an essential part in the production process of nonwoven products.
    2. Can be used in the production of geotextile, automotive interior, industrial felt, filter material, coating substrate, carpet substrate, insulation blanket, thermal blanket, footwear materials, etc.

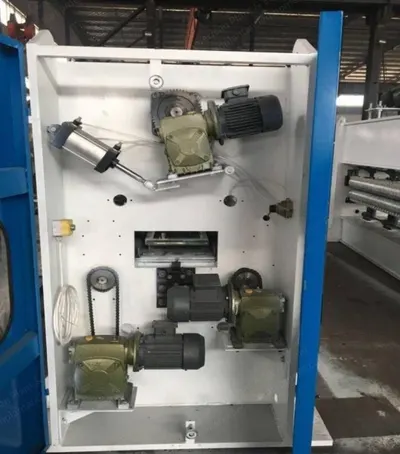

    3. The main drive of the needling machine drives the needle beam, the needle plate and the needle up and down through the crank-connecting rod mechanism.
    4. The fluffy mesh is carried into the acupuncture area under a feeding curtain clamp.

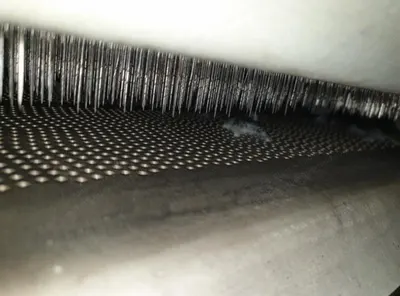

    5. When the needle plate moves downward, the needle penetrates the fiber net, which is close to the tray.
    6. When the needle plate moves up, the friction between the fiber net and the needles causes the fiber net and the needles to move up together, and the fiber net is close to the stripping plate.
    7. Feeding and output speed match, can be intermittent step, can also be continuous movement.
    8. After the fiber network passes through the acupuncture area, it has a certain strength, density and thickness.
  2. Main Components
    1. The frame is made from high quality metal plate.
    2. Aluminum alloy beam and magnesium aluminum alloy/pu combined needle beard.
  3. Specifications
    1. Weight: about 5500 kg
    2. Total power: about 12 kw
    3. Main motor: 7.5 kw; 3-phase ac power 50 or 60 hz (as per customer requirement)
    4. Product density: 50 gsm to 1000 gsm (depends on the raw material type also product requirements and number of units)
    5. The average output: according to gsm
    6. Protection: main motor overload protection
    7. The control mode: constant power & inverter control
    8. Working width: 2000mm/adjustable/cut at mid
    9. Needle plate: galvanized-faced; 6500 or according to customer’s requirements
    10. Bearing: koyo/ or according to the customer’s requirements
    11. Type of holes: diameter 1.83mm/an inverted cone
    12. Electrical components: delixi
    13. Inverter: chint
    14. Fabric speed: recycled material or man-made fiber material or mixing material; 0.5 to 11 meters per minute (depends on the raw material type also product requirements)
    15. Stroke: 40mm
    16. Transfer roller: diameter: chromium plating process/high quality 50# steel
    17. Needle plate: high strength alloys and shock shape/ 18mm thickness
    18. The main shaft & other work shaft: diameter: dynamic balance and strength strengthening heat treatment/high quality steel
    19. Color: according to customer’s requirements

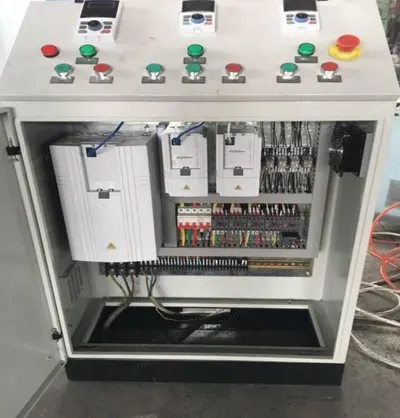

    20. The control cabinet and panel: digital display instrument, and equipped with knob regulator, professional electric schematic diagram
  4. Condition and Notes
    1. Direction: ▼first; with guide ring; conveyor belt is operational configuration.
    2. All rotating shaft through dynamic balance test.
