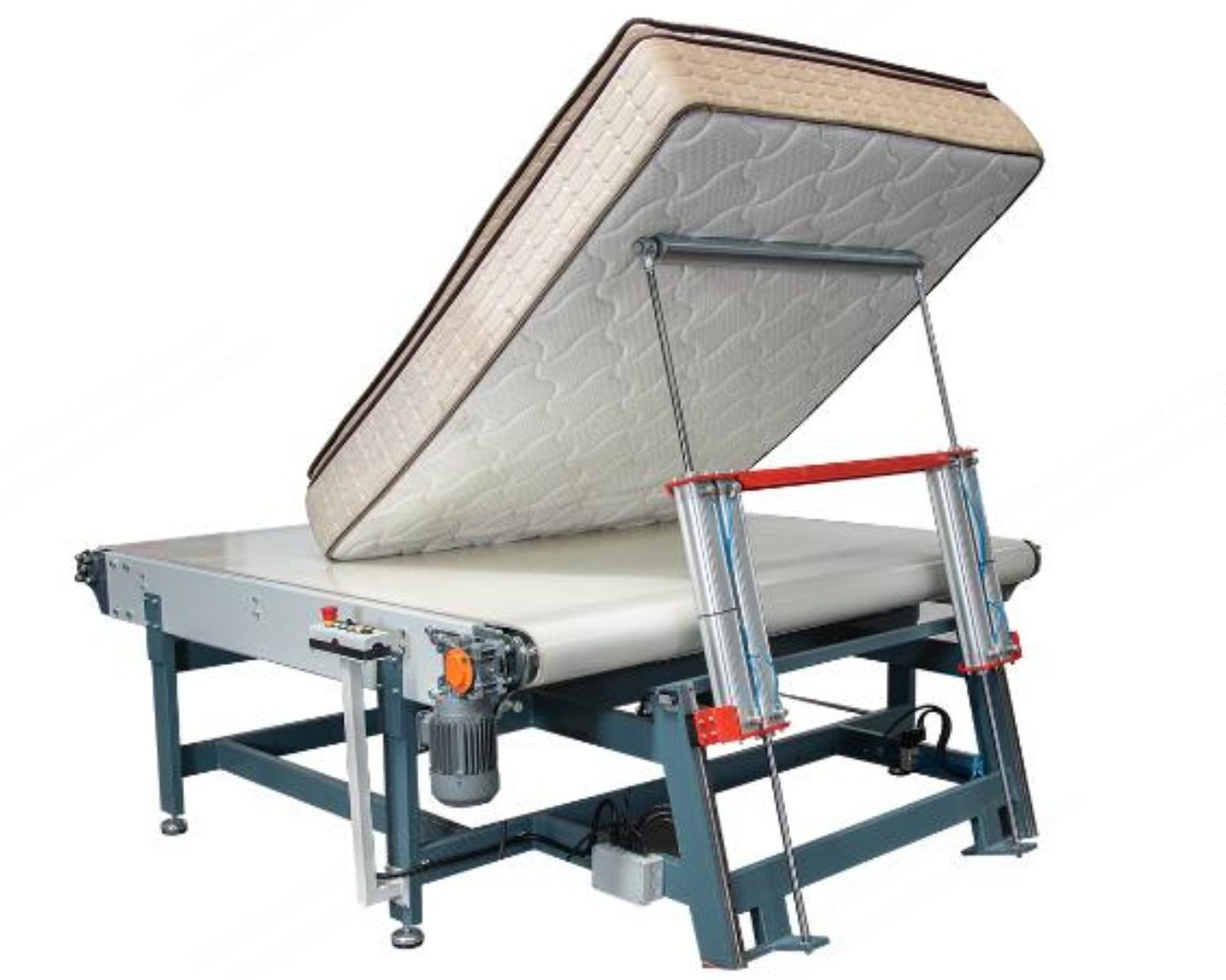

Description Overview This conveyor is used to assemble the mattress on a line. With flipping unit, it can flip the mattress to carry out the assembling process on both sides. Flexible and ergonomic working principle, flips mattresses of varying sizes and weights. Since the belts on the conveyor are made of silicone, it prevents adhesive sticking and is easy to clean. Forward-back and flipping of the mattress can be done with a pushbutton by the operator. Application area: mattress industry, foam lamination system. Materials: finished or semi-finished mattress, foam, felt, quilted panel. General Features It flips the mattresses of varying sizes and weights without requiring any adjustment. As mattresses are held by pneumatic arms, any risk of deformation during flipping is avoided. With the help of its sensors, it can detect automatically whether there is a mattress in the machine. The safety barrier surrounding the machine provides a safe working environment. Features a long-life Festo brand pneumatic system with low air consumption. Standard Safety barrier Pneumatic flipping system PVC conveyor Technical Data Conveyor size: width 2350 mm, length 2750 mm, height 900 mm Conveyor weight: 600 kg Conveyor height: 900 mm Capacity: 1 mattress per minute Maximum mattress size: width 2000 mm, length 2250 mm, height 500 mm Minimum mattress size: width 700 mm, length 1800 mm, height 100 mm Maximum mattress weight: 150 kg Flipper system: pneumatic arm Electric: 220 volts AC (III+N+TT) Air pressure: 6 to 8 bar Power: total 0.75 kW
